Add an IP address to the allowlist of a database instance in Huawei Cloud

If you select public network as the connection type when you create a data source or data migration task with Huawei Cloud as the cloud vendor, you need to add the IP address of the data source to the allowlist of the MySQL database instance (including RDS MySQL and self-managed MySQL), the self-managed Oracle database instance, the self-managed OceanBase database instance, and the Kafka instance (including cloud instance Kafka and self-managed Kafka). This ensures that the data source can be accessed.

Obtain the IP address to be added to the allowlist

1. Log in to the OceanBase Cloud console.

2. Access the Create Data Source page.

   Here takes the procedure on the Create Data Source page as an example. You can also click Data Services > Migrations > Migrate Data, and obtain the IP address to be added to the allowlist from the Create Task page.

   1. In the left-side navigation pane, click Data Services > Data Sources.

   2. On the Data Sources page, click Create Data Source in the upper-right corner and select the data source type.

3. On the Create Data Source page, select Huawei Cloud for Cloud Vendor, Public IP for Connection Method, and the instance type as needed.

4. Copy the IP address displayed below the Connection Information text box.

   Note

   The region selected here must be the same as the region where the Huawei Cloud instance is located.

Add an IP address to the allowlist of an RDS for MySQL instance

1. Access the details page of the security group associated with the RDS for MySQL instance.

   1. Log in to the Huawei Cloud console and go to the Instances page of RDS.

   2. In the upper-left corner, select the region where the target instance is located.

   3. Click the name of the target instance to go to its Basic Information page.

   4. In the left-side navigation pane, click Connectivity & Security.

   5. In the Security Group Rules section, click the name of the security group whose rules are to be modified.

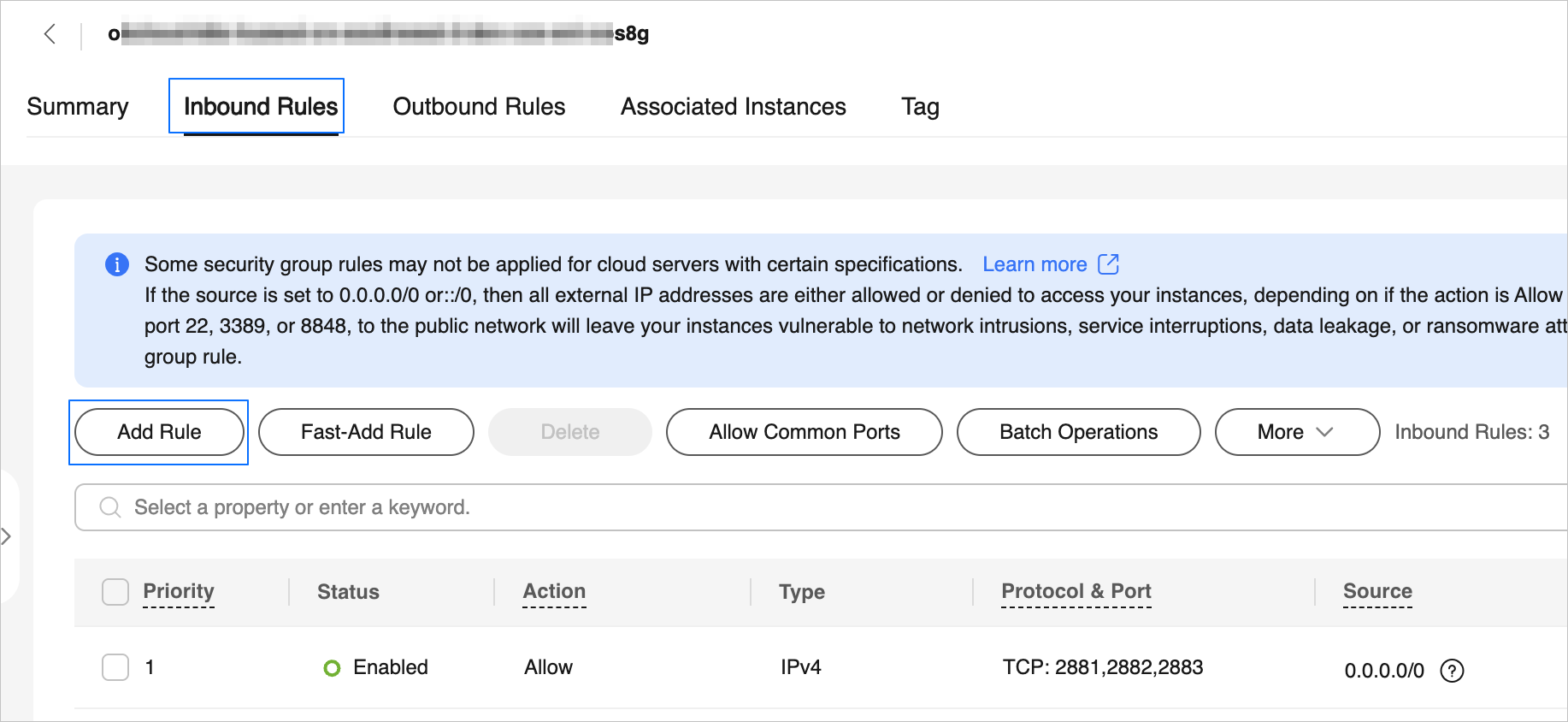

2. On the details page of the security group, click the Inbound Rules tab.

3. Click Add Rule.

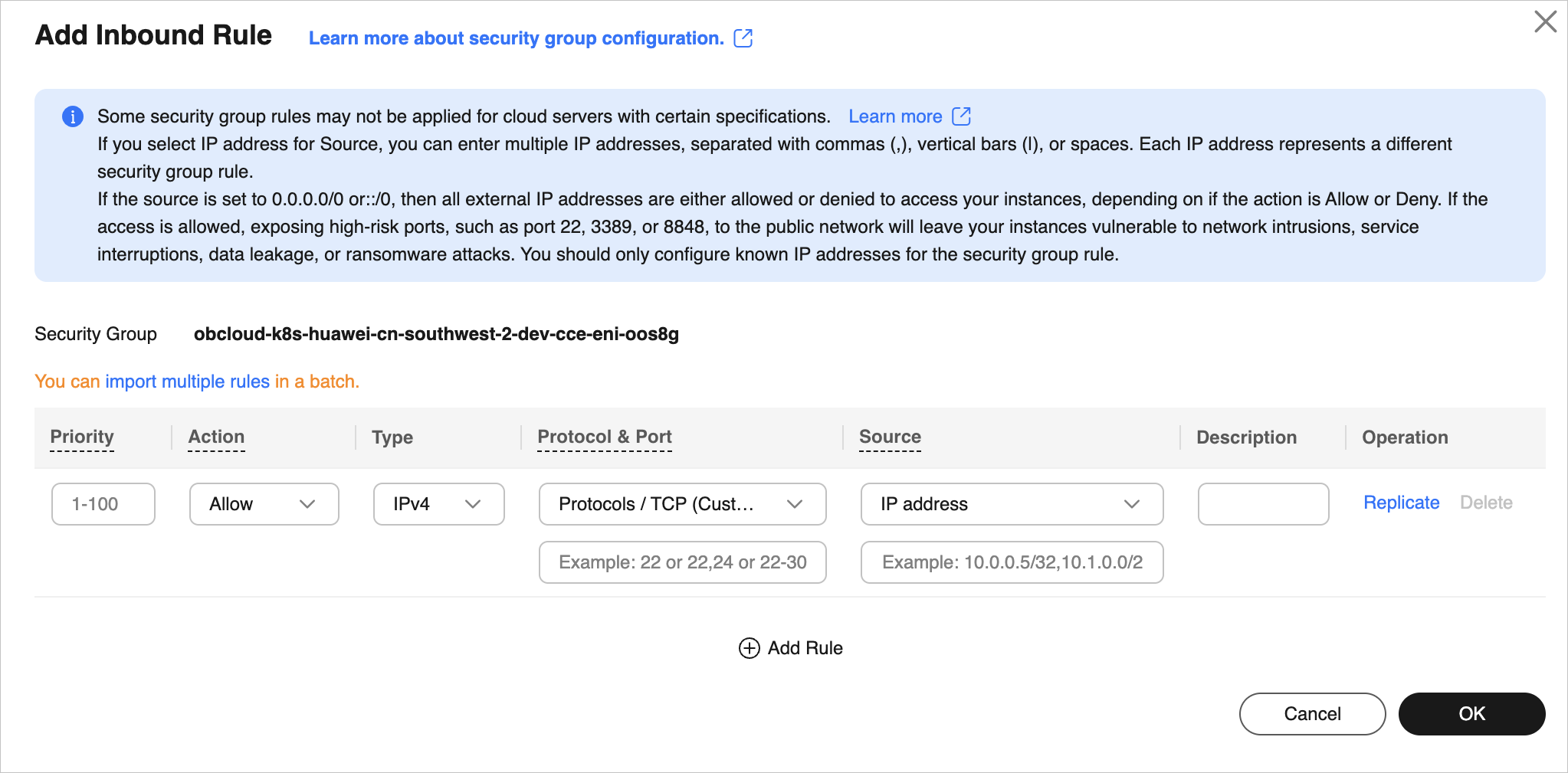

4. In the Add Inbound Rule dialog box, configure the parameters.



   Parameter	Description
   Priority	Value range: 1 to 100. Default value: 1, indicating the highest priority.
   Action	Select Allow.
   Type	The IP address type. Select IPv4.
   Protocol & Port	Select TCP and enter the port number 3306.
   Source	Enter the IP address copied on the page for creating a data source or data migration task.
   Description	The description of the rule to be added.

5. Click OK.

Add an IP address to the allowlist of a cloud Kafka instance

1. Go to the security group page associated with the Kafka instance.

   1. Log in to the Kafka instance page of the distributed message service Kafka edition.

   2. In the upper-left corner of the page, select the region where the target instance is located.

   3. Click the name of the target instance to go to the Basic Information page.

   4. In the Networking section, click the name of the security group associated with the instance.

2. On the details page of the security group, click Inbound Rules.

3. Click Add Rule.



4. In the Add Inbound Rule dialog box, configure the parameters.



   Parameter	Description
   Priority	The value can be 1 to 100. The default value is 1, which indicates the highest priority.
   Action	Select Allow.
   Type	The type of the IP address. Select IPv4.
   Protocol & Port	Enter the custom TCP port 9092.
   Source	Enter the IP address copied from the page for creating a data source or data migration task.
   Description	The description of the added rule.

5. Click OK.

Add an IP address to the allowlist of a self-managed MySQL/Oracle/OceanBase/Kafka instance

1. Log in to the Huawei Cloud console and go to the Elastic Cloud Server page of Cloud Server Console.

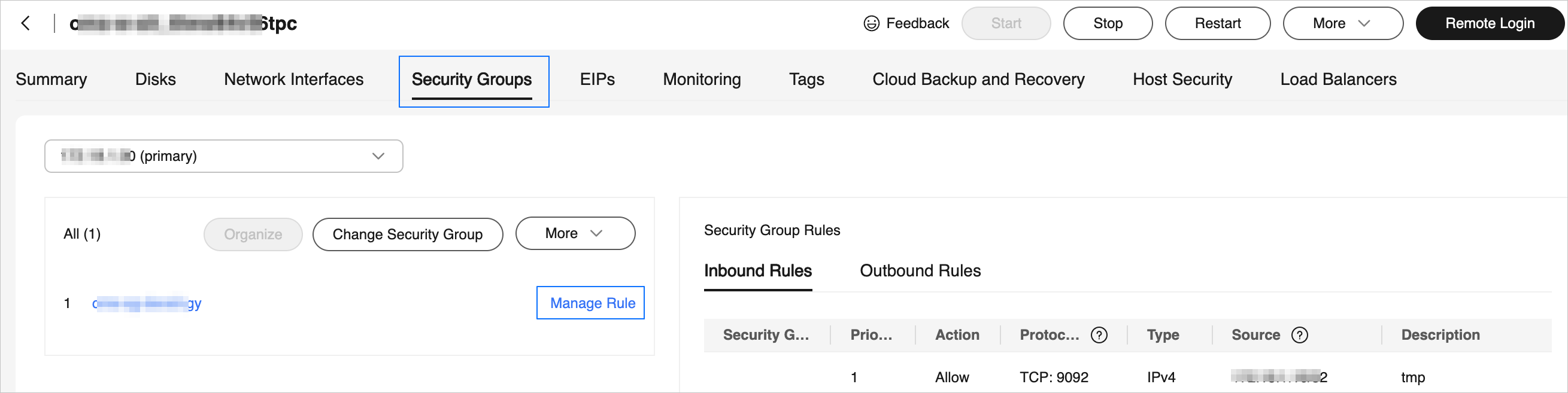

2. Click the name of the cloud server to go to its details page. Then, click the Security Groups tab.

3. On the Security Groups tab, click Manage Rule next to the target security group.



4. On the Inbound Rules tab, click Add Rule.



5. In the Add Inbound Rule dialog box, configure the parameters.



   Parameter	Description
   Priority	Value range: 1 to 100. Default value: 1, indicating the highest priority.
   Action	Select Allow.
   Type	The IP address type. Select IPv4.
   Protocol & Port	Select TCP. Enter the port number 3306 for a self-managed MySQL, Oracle, or OceanBase Database instance. Enter the port number 9092 for a self-managed Kafka instance.
   Source	Enter the IP address copied on the page for creating a data source or data migration task.
   Description	The description of the rule to be added.

6. Click OK.
