Monitor OceanBase Cloud with Prometheus

Last Updated：2026-04-08 05:58:26 Updated

This topic describes how to monitor OceanBase Cloud by using OBCloud Exporter and Prometheus.

Background information

OBCloud Exporter is a database data processing tool provided by OceanBase Cloud. You can use this tool to complete database authentication and data acquisition. You can then use the local Prometheus tool to monitor the database.

Prerequisites

Java 8 or later is deployed.
Docker is deployed.

Procedure

Run Prometheus to monitor OceanBase Cloud

Deploy Prometheus by using Docker

Deploy Prometheus to monitor OceanBase Database by using Kubernetes

Download OBCloud Exporter.

Note

Currently, OBCloud Exporter is not available for direct download. Please contact technical support for assistance.

Deploy OBCloud Exporter.

Extract the OBCloud Exporter installation package to the /opt/obcloud-exporter directory.
```
mkdir /opt/obcloud-exporter
unzip Obcloud_Exporter.zip -d /opt/obcloud-exporter
```
After extraction, the directory contains the following files:
- Dockerfile: the Docker container build file.
- muticloud_metric_config.yaml: the metrics configuration file, which does not need to be modified by default.
- application.yaml: the collection configuration file.
- obcloud-exporter-1.0-SNAPSHOT-jar-with-dependencies.jar: the OBCloud Exporter program.
- readme.md: the project description.

Edit the application.yaml configuration file.

muti_monitor:
  ## Credentials
  credential:
    access_key_id: xxx
    access_key_secret: xx
    end_point: xxx
  metric_meta_auto_refresh: false
  default_metric:
    - sql_all_rt
    - sql_delete_rt
  ## Instance information
  instances:
    instance_id: xxx
    tenant_id: xxx
    instance_type: tenant
    metrics:
      - sql_all_rt
      - sql_delete_rt

Parameter description:

Parameter	Required	Description	Example value
access_key_id	Yes	The authentication information. Go to My Account > Access Key to obtain it. For more information, see Manage Access Keys.	************
access_key_secret	Yes	The authentication information. Go to My Account > Access Key to obtain it. For more information, see Manage Access Keys.	************
end_point	Yes	The endpoint. For more information, see Service Endpoints.	api-cloud.oceanbase.com
metric_meta_auto_refresh	No	Whether to periodically refresh the metric indicators. Default value: false.	false
default_metric	No	The default metric. When no instances are specified for collection, you can use default_metric to control the collection of specified metrics for all instances in the account.	- sql_all_rt
instance_id	No	The cluster instance ID or shared instance ID. You can specify multiple cluster and shared instance IDs separated by hyphens (-).	ob************
tenant_id	No	To query a specified tenant under a cluster, you must configure tenant_id. If instance_type is cluster, you can omit this parameter. If the instance is a shared instance, you must configure the same instance ID for both instance_id and tenant_id, and specify instance_type as tenant.	t************
instance_type	No	The instance type: cluster: the monitoring metrics of the cluster host. It automatically collects the monitoring data of all tenants under the cluster. tenant: the monitoring metrics of the tenant database.	tenant
metrics	No	The metric information. By default, all metrics are collected. For more information, see the Monitoring Metrics section. Note Collecting too many metrics may affect the collection speed. In appropriate cases, you can split them into multiple exporters.	- sql_all_rt

Run OBCloud Exporter with Java.

You can use the following command to start OBCloud Exporter by specifying the configuration file.

java -Dconfig=/xx/application.yaml -jar obcloud-exporter-1.0-SNAPSHOT-jar-with-dependencies.jar --spring.config.location=/xx/application.properties

-Dconfig: (Optional) specifies the monitoring configuration file to start.
--spring.config.location: (Optional) specifies the location of the program. By default, the Spring Boot actuator component is integrated and enabled, with the default port set to 8082. You can configure it as needed and access it based on the configured port.

The default configuration is as follows:
```
server.port=-1
management.server.port=8082
management.endpoints.web.exposure.include=health,info
management.endpoint.health.show-details=always
```

Common example:

# Start OBCloud Exporter with the default configuration.
java -jar obcloud-exporter-1.0-SNAPSHOT-jar-with-dependencies.jar
# Start OBCloud Exporter with the environment configuration variable.
java -jar obcloud-exporter-1.0-SNAPSHOT-jar-with-dependencies.jar --spring.config.location=/xx/application.properties
# Start OBCloud Exporter with the monitoring configuration file.
java -Dconfig=/xx/application.yaml -jar obcloud-exporter-1.0-SNAPSHOT-jar-with-dependencies.jar
# Start OBCloud Exporter with the monitoring configuration file and the environment variable configuration.
java -Dconfig=/xx/application.yaml -jar obcloud-exporter-1.0-SNAPSHOT-jar-with-dependencies.jar --spring.config.location=/xx/application.properties

Verify the deployment result by accessing the 9400 port of the corresponding IP address in a browser and checking whether the monitoring data is obtained.

Note

Actually, access the service based on the configured IP address and port.

Download Prometheus. Go to the official website and download the required version of the Prometheus installation package. For example, the following describes how to download the 2.50.1 Linux version.
```
wget https://github.com/prometheus/prometheus/releases/download/v2.50.1/prometheus-2.50.1.linux-amd64.tar.gz
```

Deploy Prometheus.

Decompress and install the Prometheus software. The installation directory is /opt/prometheus.

mkdir -p /opt/prometheus
tar -zxvf prometheus-2.50.1.linux-amd64.tar.gz -C /opt/prometheus --strip-components=1

Transfer the prometheus.yml configuration file to the working directory and edit it as needed.

mv /opt/prometheus/prometheus.yml /usr/local/bin/
vi /usr/local/bin/prometheus.yml

Modify the following parameters:

global:
  scrape_interval: 30s
  scrape_timeout: 20s

scrape_configs:
  - job_name: "nodes"
    static_configs:
    - targets: ['localhost:9400']

Create the Prometheus service file and the related data storage directory.

mkdir /var/lib/prometheus/
sudo vim /etc/systemd/system/Prometheus.service

Fill in the following content and save it.

Note

The User and Group parameters are optional. For more information about how to set them, see the next step Set the username and user group.

[Unit]
Description=Prometheus
Wants=network-online.target
After=network-online.target

[Service]
User=prometheus
Group=prometheus
Restart=on-failure
ExecStart=/opt/prometheus/prometheus \
      --config.file /usr/local/bin/prometheus.yml \
      --storage.tsdb.path /var/lib/prometheus/

[Install]
WantedBy=multi-user.target

(Optional) Set the username and user group. If the user or user group specified in the previous step is not configured, you can skip this step.

sudo groupadd prometheus
sudo useradd -r -g prometheus prometheus
sudo chown -R prometheus:prometheus /opt/prometheus /var/lib/prometheus
sudo chmod -R 755 /opt/prometheus /var/lib/prometheus

Start the Prometheus service.

# Load the new systemd configuration.
sudo systemctl daemon-reload

# Start the Prometheus service.
sudo systemctl start prometheus

# Set the service to start automatically.
sudo systemctl enable prometheus

# Check the service status.
sudo systemctl status prometheus

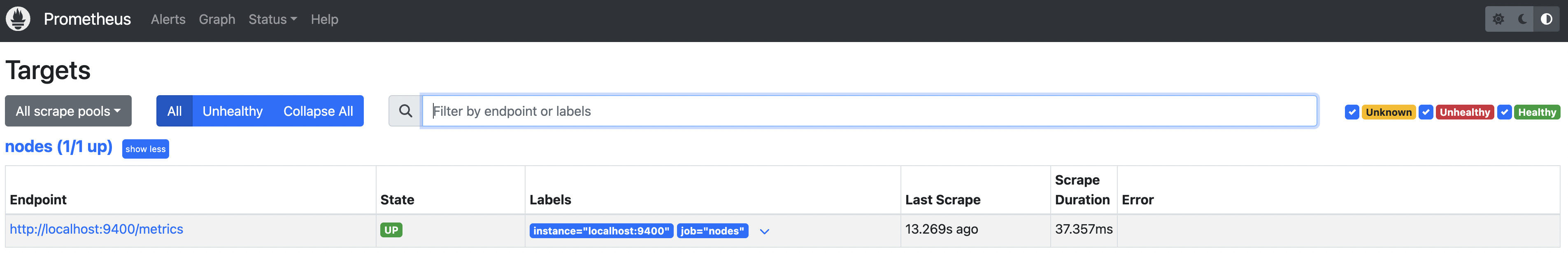

Confirm whether the Prometheus service is started.
```
sudo netstat -ntlp | grep 9090
```

Download OBCloud Exporter.

Note

Currently, OBCloud Exporter cannot be directly downloaded. Contact Technical Support for assistance.

Deploy OBCloud Exporter.

Decompress the OBCloud Exporter installation package. The installation directory is /opt/obcloud-exporter.
```
mkdir /opt/obcloud-exporter
unzip Obcloud_Exporter.zip -d /opt/obcloud-exporter
```
The decompressed directory contains the following files:
- Dockerfile: the Docker container build file.
- muticloud_metric_config.yaml: the metric configuration file. This file does not need to be modified by default.
- application.yaml: the collection configuration file.
- obcloud-exporter-1.0-SNAPSHOT-jar-with-dependencies.jar: the OBCloud Exporter program.
- readme.md: the project description.

Edit the application.yaml configuration file.

muti_monitor:
  ## Credentials
  credential:
    access_key_id: xxx
    access_key_secret: xx
    end_point: xxx
  metric_meta_auto_refresh: false
  default_metric:
    - sql_all_rt
    - sql_delete_rt
  ## Instance information
  instances:
    instance_id: xxx
    tenant_id: xxx
    instance_type: tenant
    metrics:
      - sql_all_rt
      - sql_delete_rt

The following table describes the parameters.

Parameter	Required	Description	Example value
access_key_id	Yes	The authentication information. For more information, see Manage AccessKeys.	************
access_key_secret	Yes	The authentication information. For more information, see Manage AccessKeys.	************
end_point	Yes	The endpoint. For more information, see Service access endpoints.	api-cloud.oceanbase.com
metric_meta_auto_refresh	No	Specifies whether to automatically refresh the metrics. Default value: false.	false
default_metric	No	The default metric. If no instances are specified, you can use this parameter to specify the metrics to be collected for all instances in the account.	- sql_all_rt
instance_id	No	The ID of the cluster instance or shared instance. You can specify multiple cluster instances or shared instances. Separate them with hyphens (-).	ob************
tenant_id	No	To query the metrics of a specified tenant in a cluster, you must specify the tenant_id parameter. If you specify the instance_type parameter as cluster, you do not need to specify the tenant_id parameter. If the instance is a shared instance, you must specify the instance_id and tenant_id parameters as the same instance ID and set the instance_type parameter to tenant.	t************
instance_type	No	The instance type. Valid values: cluster: the metrics of the cluster. The metrics of all tenants in the cluster are automatically collected. tenant: the metrics of the tenant.	tenant
metrics	No	The metrics to be collected. Default value: all metrics. For more information, see the Metrics section in this topic. Note Collecting too many metrics may affect the collection speed. In this case, you can split the metrics into multiple exporters.	- sql_all_rt

Start the OBCloud Exporter by using Docker.

In the /opt/obcloud-exporter directory, build the obcloud-exporter container.
```
cd /opt/obcloud-exporter
docker build -t obcloud-exporter:1.0 .
```

Start the container or map an external configuration file.

Start the Docker container directly.

docker run -itd -p9400:9400 --name obcloud-exporter obcloud-exporter:1.0

Start the Docker container by mapping an external configuration file.

docker run -itd -p9400:9400 -v /opt/obcloud-exporter/application.yaml:/app/application.yaml --name obcloud-exporter obcloud-exporter:1.0

Verify the deployment result by using a browser. Access the 9400 port of the corresponding IP address to confirm whether the monitoring data is obtained.

Note

When you use the service, access the endpoint and port that you have configured.

Create a Prometheus configuration file, prometheus.yml.

vi /usr/local/bin/prometheus.yml

Edit the content of the configuration file:

global:
  scrape_interval: 30s
  evaluation_interval: 30s

scrape_configs:
  - job_name: obcloud-exporter-test
    static_configs:
        # The IP address and port of the local server
      - targets: ['obcloud-exporter:9400']
        labels:
          instance: obcloud-exporter

Start the Prometheus service.

docker run  -d \
  -p 9090:9090 \
  -v /usr/local/bin/prometheus.yml:/etc/prometheus/prometheus.yml  \
  --link obcloud-exporter  \
  --name prometheus \
  prom/prometheus

Check whether the Prometheus service is started.
```
sudo netstat -ntlp | grep 9090
```

Download OBCloud Exporter.

Note

Currently, you cannot directly download OBCloud Exporter. Contact Technical Support for more information.
Decompress the OBCloud Exporter installation package and save it to the /opt/obcloud-exporter directory.
```
mkdir /opt/obcloud-exporter
unzip Obcloud_Exporter.zip -d /opt/obcloud-exporter
```
After decompression, the directory contains the following files:
- Dockerfile: the Docker container build file.
- muticloud_metric_config.yaml: the metric configuration file. You do not need to modify this file.
- application.yaml: the collection configuration file.
- obcloud-exporter-1.0-SNAPSHOT-jar-with-dependencies.jar: the OBCloud Exporter program.
- readme.md: the project description.
Package and upload the OBCloud Exporter image file.
1. In the /opt/obcloud-exporter directory, build the obcloud-exporter container.
```
cd /opt/obcloud-exporter
docker build -t obcloud-exporter:1.0 .
```
2. Log in to the image repository of the cloud service provider. For example, log in to the Alibaba Cloud image repository. You can modify the image repository as needed.
```
docker login registry.cn-hangzhou.aliyuncs.com
Username: ****@test.com
Password:
```
3. Change the image name to the name of the image repository.
```
docker tag obcloud-exporter:1.0 registry.cn-hangzhou.aliyuncs.com/obcloud-exporter:1.0
```
4. docker push uploads the image to the image repository.
```
docker push registry.cn-hangzhou.aliyuncs.com/obcloud-exporter:1.0
```

Edit the deployment.yml file on the local server.

Create the deployment.yml file.

vi /opt/obcloud-exporter/deployment.yml

Edit the file:

apiVersion: v1
kind: ConfigMap
metadata:
  name: exporter-config
  namespace: default
  labels: {}
  annotations: {}
data:
  application.yaml: |
    ## Monitor name
    aliyun_monitor:
      ## Credentials
      credential:
        access_key_id: xxx
        access_key_secret: xx
        ## Endpoint
        end_point: xxx
      ## Whether to automatically refresh metric metadata. Default is false (currently only supported for Alibaba Cloud).
      metric_meta_auto_refresh: false
      ## Default metrics. If no instances are configured, you can specify the metrics to collect using default_metric.
      default_metric:
        - sql_all_rt
        - sql_delete_rt
      instances:
        - ## Instance ID
          instance_id: xxx
          ## Instance type: cluster (host-level metrics, including tenant-level metrics) or tenant (database-level metrics).
          instance_type: cluster
          ## Metrics to collect
          metrics:
            - sql_all_rt
            - sql_delete_rt
        - ## Instance ID
          instance_id: xxx
          ## Specify the tenant ID when querying a tenant under a cluster. This parameter is optional when instance_type is set to cluster.
          ## For a tenant instance, both instance_id and tenant_id must be set to the same instance ID, and instance_type must be set to tenant.
          tenant_id: xxx
          ## Instance type: cluster (host-level metrics, including tenant-level metrics) or tenant (database-level metrics).
          instance_type: tenant
          ## Metrics to collect
          metrics:
            - sql_all_rt
            - sql_delete_rt
    ## Monitor name
    muti_monitor:
      ## Credentials
      credential:
        access_key_id: xxx
        access_key_secret: xx
        ## Endpoint
        end_point: xxx
        ## Whether to automatically refresh metric metadata. Default is false (currently only supported for Alibaba Cloud).
        metric_meta_auto_refresh: false
      instances:
        - ## Instance ID
          instance_id: xxx
          ## Specify the tenant ID when querying a tenant under a cluster. This parameter is optional when instance_type is set to cluster.
          ## For a tenant instance, both instance_id and tenant_id must be set to the same instance ID, and instance_type must be set to tenant.
          tenant_id: xxx
          ## Instance type: cluster (host-level metrics, including tenant-level metrics) or tenant (database-level metrics).
          instance_type: tenant
          metrics:
            - sql_all_rt
            - sql_delete_rt
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: obcloud-exporter
  namespace: default
spec:
  replicas: 1
  selector:
    matchLabels:
      app: obcloud-exporter
  template:
    metadata:
      labels:
        app: obcloud-exporter
    spec:
      containers:
        - name: exporter
          image: registry.cn-hangzhou.aliyuncs.com/obcloud-exporter:1.0
          env:
          - name: TZ
            value: "Asia/Shanghai"  # Set the timezone
          command: ["java", "-jar", "/app/obcloud-exporter.jar"]
          imagePullPolicy: IfNotPresent
          livenessProbe:
            httpGet:
              path: /actuator/health
              port: 8082
            initialDelaySeconds: 15
            periodSeconds: 20
          readinessProbe:
            httpGet:
              path: /
              port: 9400
            initialDelaySeconds: 5
            periodSeconds: 10
          volumeMounts:
            - name: config-volume
              mountPath: /app/application.yaml
              subPath: application.yaml
      volumes:
        - name: config-volume
          configMap:
            name: exporter-config
---
apiVersion: v1
kind: Service
metadata:
  name: exporter-service
  namespace: default
spec:
  selector:
    app: obcloud-exporter
  ports:
    - protocol: TCP
      port: 9400
      targetPort: 9400
  type: ClusterIP

Parameter description:

Parameter	Required	Description	Example value
access_key_id	Yes	The authentication information. For more information, see Manage access keys.	************
access_key_secret	Yes	The authentication information. For more information, see Manage access keys.	************
end_point	Yes	The endpoint. For more information, see Service endpoints.	api-cloud.oceanbase.com
metric_meta_auto_refresh	No	Specifies whether to periodically refresh the metric. Default value: false.	false
default_metric	No	The default metric. If no instances are specified, you can use this parameter to specify the metric to be collected for all instances.	- sql_all_rt
instance_id	No	The ID of the cluster instance or shared instance. You can specify multiple cluster instances or shared instances. Separate them with hyphens (-).	ob************
tenant_id	No	To query the specified tenant in the cluster, you must specify the tenant_id. If you specify the instance_type as cluster, you can omit the tenant_id. If the instance is a shared instance, you must specify the same instance ID for both the instance_id and tenant_id parameters, and set the instance_type to tenant.	t************
instance_type	No	The instance type. Valid values: cluster: the cluster-level metrics. The metrics of all tenants in the cluster are automatically collected. tenant: the tenant-level metrics.	tenant
metrics	No	The metric information. By default, all metrics are collected. For more information about the metrics, see the Monitoring metrics section in this topic. Note Collecting too many metrics may affect the collection speed. In this case, you can split the metrics into multiple exporters.	- sql_all_rt

After you save and update the deployment file, run the following command to apply the changes:
```
kubectl apply -f /opt/obcloud-exporter/deployment.yml
```

Create a Prometheus configuration file named prometheus.yml.

vi /opt/obcloud-exporter/prometheus.yml

Edit the content of the configuration file:

apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-config
  namespace: default
data:
  prometheus.yaml: |
    global:
      scrape_interval: 60s
      scrape_timeout: 55s
    scrape_configs:
    - job_name: "exporter"
      static_configs:
      - targets: ['exporter-service:9400']
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus
  namespace: default
spec:
  selector:
    matchLabels:
      app: prometheus
  template:
    metadata:
      labels:
        app: prometheus
    spec:
      volumes:
        - name: config-volume
          configMap:
            name: prometheus-config
      containers:
        - image: prom/prometheus:v2.35.0
          name: prometheus
          args:
            - "--config.file=/etc/prometheus/prometheus.yaml"
            - "--storage.tsdb.path=/prometheus" # Specifies the TSDB data path.
            - "--storage.tsdb.retention.time=15d"
            - "--web.enable-lifecycle" # Enables hot updates. You can directly execute the command at http://localhost:30000/-/reload to take effect.
          ports:
            - containerPort: 9090
              name: http
          securityContext:
            runAsUser: 0
          volumeMounts:
            - mountPath: "/etc/prometheus"
              name: config-volume
---
apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: default
spec:
  selector:
    app: prometheus
  type: NodePort
  ports:
    - name: web
      port: 9090
      nodePort: 30000 # Specifies the default node port.
      targetPort: http

Start the Prometheus service.

kubectl apply -f /opt/obcloud-exporter/prometheus.yml

View database monitoring data in Prometheus

Configuration example

Dynamically obtain instances under the account (recommended)

Collect specified metrics

## Monitor name
monitor:
  ## Credentials
  credential:
    access_key_id: xxx
    access_key_secret: xx
    ## Endpoint
    end_point: xxx
  ## Default metrics, when no instances are configured, you can specify the metrics to collect by using default_metric.
  default_metric:
    - sql_all_rt
    - sql_delete_rt

Collect all metrics

## Monitor name
monitor:
  ## Credentials
  credential:
    access_key_id: xxx
    access_key_secret: xx
    ## Endpoint
    end_point: xxx

Collect specified clusters under the account

Collect specified metrics. You can choose instance_type as needed.

## Monitor name
monitor:
  ## Credentials
  credential:
    access_key_id: xxx
    access_key_secret: xx
    ## Endpoint
    end_point: xxx
  instances:
  - ## Instance ID
      instance_id: xxx
      tenant_id: xxx
      instance_type: tenant
      metrics:
        - sql_all_rt
        - sql_delete_rt

Collect all metrics. When instance_type is set to cluster, both host metrics of the cluster and tenant database metrics of the cluster are collected.

## Monitor name
monitor:
  ## Credentials
  credential:
    access_key_id: xxx
    access_key_secret: xx
    end_point: xxx
  instances:
      instance_id: xxx
      instance_type: cluster

Collect all tenant database metrics. When instance_type is set to tenant, only tenant database metrics of the specified tenant are collected.

## Monitor name
monitor:
  ## Credentials
  credential:
    access_key_id: xxx
    access_key_secret: xx
    end_point: xxx
  instances:
      instance_id: xxx
      tenant_id: xx
      instance_type: tenant

Collect multiple accounts

## Monitor name
aliyun:
  ## Credentials
  credential:
    access_key_id: xxx
    access_key_secret: xx
    end_point: xxx
## Monitor name
muti:
  ## Credentials
  credential:
    access_key_id: xxx
    access_key_secret: xx
    ## Endpoint
    end_point: xxx

List of metrics

Host metrics

Metric	Description	Unit
load1	The average load of the system in the last minute.	-
load5	The average load of the system in the last 5 minutes.	-
load15	The average load of the system in the last 15 minutes.	-
cpu_percent	The CPU usage.	%
memory_buffers	The size of the kernel buffer cache.	GiB
memory_cached	The size of memory used for caching.	GiB
memory_free	The size of available physical memory.	GiB
memory_used	The percentage of physical memory used.	%
net_recv	The amount of data received per second.	MiB
net_send	The amount of data sent per second.	MiB
net_throughput	The network throughput.	MiB
ntp_offset_milliseconds	The offset of the NTP clock.	ms
io_read	The number of read operations per second.	times/s
io_write	The number of write operations per second.	times/s
io_time	The I/O time.	ms
io_read_time	The average I/O read time.	ms
io_write_time	The average I/O write time.	ms
io_byte	The average I/O data volume per second.	MiB
io_read_byte	The data volume of each read operation.	MiB
io_write_byte	The data volume of each write operation.	MiB
ob_data_disk_percent	The usage of the OB data disk.	%
ob_clog_disk_percent	The usage of the OB log disk.	%
ob_data_disk_used_size	The disk usage.	GiB
ob_process_exists	The status of the OB process.	-
ob_clog_io	The average number of I/O operations per second on the OB log disk.	times/s
ob_clog_io_read	The average number of read I/O operations per second on the OB log disk.	times/s
ob_clog_io_write	The average number of write I/O operations per second on the OB log disk.	times/s
ob_clog_io_read_time	The average I/O read time.	ms
ob_clog_io_time	The average I/O time.	ms
ob_clog_io_write_time	The average I/O write time.	ms
ob_clog_io_byte	The average I/O data volume per second on the OB log disk.	MiB
ob_clog_io_read_byte	The I/O data volume read per second on the OB log disk.	MiB
ob_clog_io_write_byte	The I/O data volume written per second on the OB log disk.	MiB
ob_clog_io_util	The I/O busy ratio of the OB log disk.	%
ob_data_io	The average number of I/O operations per second on the OB data disk.	times/s
ob_data_io_read	The average number of read I/O operations per second on the OB data disk.	times/s
ob_data_io_write	The average number of write I/O operations per second on the OB data disk.	times/s
ob_data_io_read_time	The average I/O read time.	ms
ob_data_io_time	The average I/O time.	ms
ob_data_io_write_time	The average I/O write time.	ms
ob_data_io_byte	The average I/O data volume per second on the OB data disk.	MiB
ob_data_io_read_byte	The I/O data volume read per second on the OB data disk.	MiB
ob_data_io_write_byte	The I/O data volume written per second on the OB data disk.	MiB
ob_data_io_util	The I/O busy ratio of the OB data disk.	%

Tenant database

Performance and SQL

Metric Name	Description	Unit
sql_all_count	The number of SQL statements processed per second.	times/s
sql_delete_count	The number of Delete statements processed per second.	times/s
sql_insert_count	The number of Insert statements processed per second.	times/s
sql_other_count	The number of other statements such as DDL, DCL, and DTL statements processed per second.	times/s
sql_replace_count	The number of Replace statements processed per second.	times/s
sql_select_count	The number of Select statements processed per second.	times/s
sql_update_count	The number of Update statements processed per second.	times/s
sql_all_rt	The average processing time of an SQL statement.	ms
sql_delete_rt	The average processing time of a Delete statement.	ms
sql_insert_rt	The average processing time of an Insert statement.	ms
sql_other_rt	The average processing time of other statements such as DDL, DCL, and DTL statements.	ms
sql_replace_rt	The average processing time of a Replace statement.	ms
sql_select_rt	The average processing time of a Select statement.	ms
sql_update_rt	The average processing time of an Update statement.	ms
active_session	The number of active sessions.	-
all_session	The number of sessions.	-
sql_distributed_count	The number of distributed execution plans processed per second.	times/s
sql_local_count	The number of local executions processed per second.	times/s
sql_remote_count	The number of remote execution plans processed per second.	times/s
system_event_internal_total_waits	The number of internal wait events per second.	times/s
system_event_io_total_waits	The number of I/O wait events per second.	times/s
system_event_latch_total_waits	The number of latch wait events per second.	times/s
system_event_other_total_waits	The number of other wait events per second.	times/s
system_event_row_lock_wait_total_waits	The number of lock wait events per second.	times/s
system_event_sync_rpc_total_waits	The number of synchronous RPC wait events per second.	times/s
wait_event_count	The number of wait events per second.	times/s
wait_event_rt	The average wait time.	ms
request_dequeue_count	The number of requests dequeued from the processing queue per second.	times/s
request_enqueue_count	The number of requests enqueued to the processing queue per second.	times/s
request_queue_time	The average wait time of an SQL request in the wait queue.	μs
ob_cpu_percent	The CPU usage of the tenant threads.	-
memstore_percent	The percentage of MEMStore usage.	-
rpc_packet_in_rt	The average receive time of an RPC packet.	μs
rpc_packet_out_rt	The average send time of an RPC packet.	μs
rpc_packet_in	The throughput of RPC packets received per second.	byte
rpc_packet_out	The throughput of RPC packets sent per second.	byte
opened_cursors_count	The number of open cursors.	-
uptime	The available time.	s

Transactions

Metric Name	Description	Unit
transaction_commit_count	The number of committed transactions per second.	times/s
transaction_count	TPS	times/s
transaction_rollback_count	The number of rolled back transactions per second.	times/s
transaction_timeout_count	The number of timed out transactions per second.	times/s
transaction_commit_rt	The average commit time of a transaction.	ms
transaction_rollback_rt	The average rollback time of a transaction.	ms
transaction_rt	The average processing time of a transaction on the server.	ms
trans_commit_log_count	The number of transaction logs committed per second.	times/s
clog_trans_log_total_size	The size of transaction logs committed per second.	byte
memstore_write_lock_fail_count	The number of write lock wait failures per second.	times/s
memstore_write_lock_succ_count	The number of write lock wait successes per second.	times/s
memstore_write_lock_wait_time	The average write lock wait time.	μs
transaction_multi_partition_count	The number of distributed transactions per second.	times/s
transaction_single_partition_count	The number of regular transactions per second.	times/s
trans_commit_log_sync_rt	The average network synchronization time of a transaction log.	μs

Storage and cache

Metric	Description	Unit
active_memstore_used	The size of the active MEMStore.	MiB
major_freeze_trigger	The threshold for triggering a major compaction.	MiB
memstore_limit	The limit of the MEMStore.	MiB
total_memstore_used	The total size of the MEMStore.	MiB
io_count	The number of I/O operations per second (IOPS) for the SSStore.	times/s
io_read_count	The number of read operations per second for the SSStore.	times/s
io_write_count	The number of write operations per second for the SSStore.	times/s
io_rt	The I/O latency.	μs
io_read_rt	The average read latency for the SSStore.	μs
io_write_rt	The average write latency for the SSStore.	μs
io_size	The amount of data processed per second by the SSStore.	byte
io_read_size	The amount of data read per second by the SSStore.	byte
io_write_size	The amount of data written per second by the SSStore.	byte
block_cache_size	The size of the block cache.	MiB
bloom_filter_cache_size	The size of the bloom filter cache.	MiB
clog_cache_size	The size of the Clog cache.	MiB
location_cache_size	The size of the location cache.	MiB
plan_cache_size	The size of the execution plan cache.	MiB
row_cache_size	The size of the row cache.	MiB
block_cache_hit_ratio	The hit ratio of the block cache.	-
bloom_filter_cache_hit_ratio	The hit ratio of the bloom filter cache.	-
clog_cache_hit_ratio	The hit ratio of the Clog cache.	-
location_cache_hit_ratio	The hit ratio of the location cache.	-
plan_cache_hit_ratio	The hit ratio of the execution plan cache.	-
row_cache_hit_ratio	The hit ratio of the row cache.	-
block_cache_req_total	The total number of block cache requests.	-
bloom_filter_cache_req_total	The total number of bloom filter cache requests.	-
clog_cache_req_total	The total number of Clog cache requests.	-
location_cache_req_total	The total number of location cache requests.	-
row_cache_req_total	The total number of row cache requests.	-
ob_tenant_binlog_disk_used	The size of the binlog disk used by the tenant.	GiB
ob_tenant_log_disk_total_bytes	The total size of the log disk.	GiB
ob_tenant_log_disk_used_bytes	The size of the log disk used by the tenant.	GiB
ob_tenant_disk_used_percentage	The percentage of the tenant disk space used.	%
ob_tenant_data_size	The size of the tenant disk space used.	GiB

Customer Stories

Documentation

Monitor OceanBase Cloud with Prometheus

Background information

Prerequisites

Procedure

Note

Note

Note

Note

Note

Note

Note

Note

Note

View database monitoring data in Prometheus

Configuration example

Dynamically obtain instances under the account (recommended)

Collect specified clusters under the account

Collect multiple accounts

List of metrics

Host metrics

Tenant database

Performance and SQL

Transactions

Storage and cache
