SSL encryption

This topic describes how to enable SSL encryption.

Background information

To improve link security, OceanBase Database supports Secure Sockets Layer (SSL) encryption. This involves encrypting network connections at the transport layer to enhance the security of communication data. If SSL encryption is enabled for connections, you can configure the system to require clients to use SSL connections when accessing the database.

TLS versions

Transport Layer Security (TLS) is a widely adopted protocol for ensuring the privacy and security of internet communications and data. TLS has several versions. The following table describes the support for TLS by different combinations of JDK versions and MySQL Connector/J versions.

Procedure

1. Log in to the OceanBase Cloud console.

2. On the instance list page, click your target instance to enter the Overview page of the instance.

3. In the left-side navigation pane, click Security.

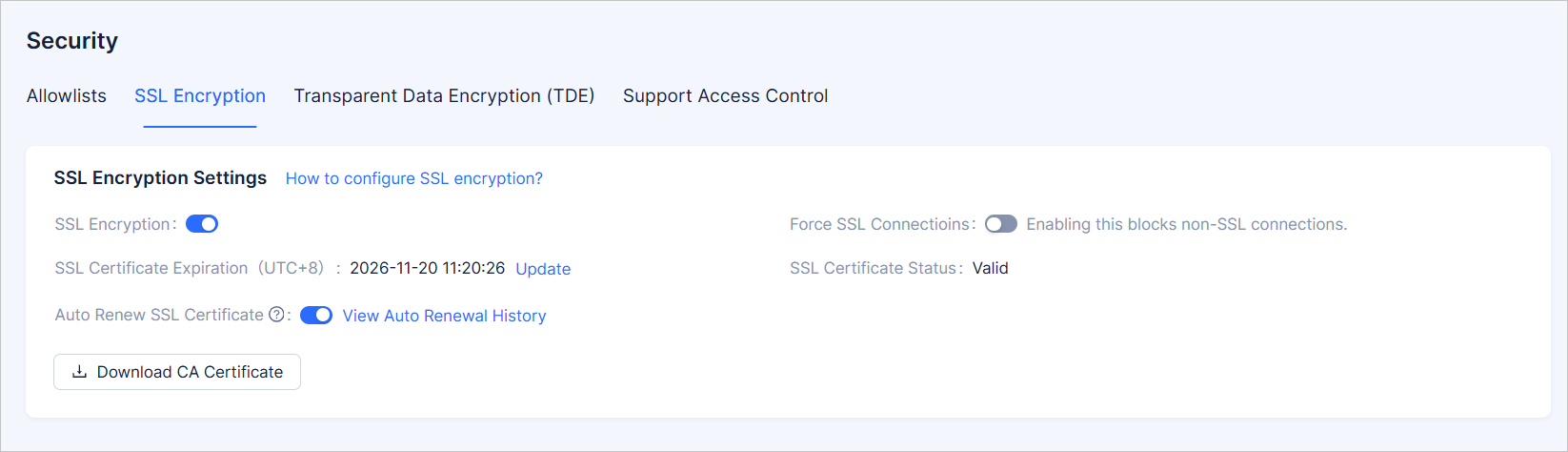

4. On the SSL Encryption tab of the Security page, you can perform the following operations:



   • Click the toggle switch next to SSL Encryption to enable it. The enabling process takes approximately 3-5 minutes.

   • Click the toggle switch next to Force SSL Connectioins to enable it. Enabling it blocks non-SSL connections.

   • Click Download CA Certificate. The file you download is a compressed package that contains the following three files:

     • p7b file: used to import the CA certificate into Windows systems.

     • PEM file: used to import the CA certificate into other systems or applications.

     • JKS file: a truststore certificate storage file used for importing the CA certificate chain into Java programs. The password is OceanBase.

       When you use a JKS certificate file in Java, you need to modify the default JDK security configuration for JDK 7 and JDK 8. In the jre/lib/security/java.security file on the server that runs the application, modify the following two settings:

       jdk.tls.disabledAlgorithms=SSLv3, RC4, DH keySize < 224
       jdk.certpath.disabledAlgorithms=MD2, RSA keySize < 1024


       If you do not modify the JDK security configuration, the following error is reported. Other similar errors are generally also caused by Java security configuration.

       javax.net.ssl.SSLHandshakeException: DHPublicKey does not comply to algorithm constraints


   • You can click Update next to SSL Certificate Expiration to refresh the SSL certificate validity period.

   • Click the Auto Renew SSL Certificate switch. If enabled, the certificate will be automatically renewed 7 days before its expiration. Each renewal extends the validity period by 360 days.

     You can click View Auto Renewal History to go to the Events page to view the details of the automatically updated certificates.

FAQ

When a Java program connection encounters the error javax.net.ssl.SSLHandshakeException: No appropriate protocol (protocol is disabled or cipher suites are inappropriate), you can resolve it by using one of the following methods:

• Specify the TLS version in the URL parameter of the JDBC connection string. For example, you can set enabledTLSProtocols to TLSv1.2.
• Lower the JDK version to up to 1.8.0_291.
