Create an alert rule

OceanBase Cloud allows you to create alert rules and specify alert targets for each rule.

Procedure

1. Log in to the OceanBase Cloud console.

2. In the left-side navigation pane, click Alerts.

3. On the page that appears, click the Alert Rules tab.

4. On this tab, click Create Alert Rule.

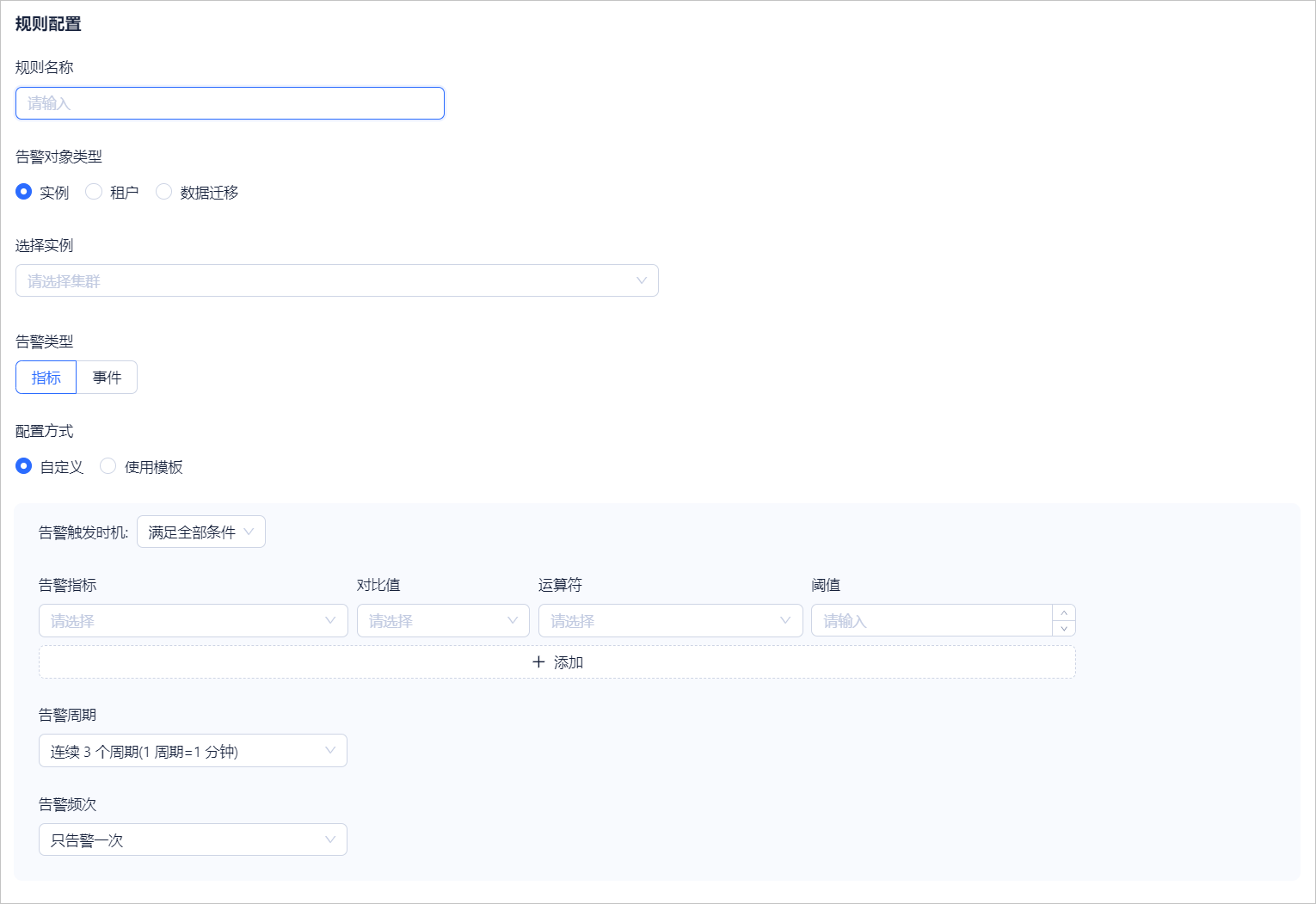

5. Specify rule parameters.

   1. The following table describes parameters of the alert rule.

      Parameter	Description
      Rule Name	The name of the alert rule.
      Alert Target Type	Select Instance as the alert target type.
      Instance	You can select multiple or all instances.
      Alert Type	Metric: If you select this alert type, you need to specify Alert Trigger Condition, Alert Metric, Alert Cycle, and Alert Frequency. Event: If you select this alert type, you need to specify Alert Event and Alert Frequency.
      Configuration Method	Custom: If you select this method, you need to add metrics to configure custom alert rules. Use Template: If you select this method, you can use existing templates for quick alert rule configuration. For more information, see Create an alert template.
      Alert Trigger Condition	Select an operation mode for multiple metrics. Valid values: Meet Any Condition and Meet All Conditions.
      Alert Metric	Select an alert metric from the Alert Metric drop-down list. For information about the definitions of alert metrics, see Monitoring metrics for custom alerts. Then, specify the values of Comparison Value, Operator, Threshold for the selected alert metric.
      Add	You can click Add to add more alert metrics. The system determines the operation results of multiple metrics based on the value of Alert Trigger Condition.
      Alert Cycle	The alert detection cycle. The system periodically checks whether the alert meets the trigger conditions based on the specified period. The default value is 3 Consecutive Cycles (1 Cycle = 1 Minute).
      Alert Frequency	The frequency by which the alert is triggered.
      Event	The event that triggers an alert.

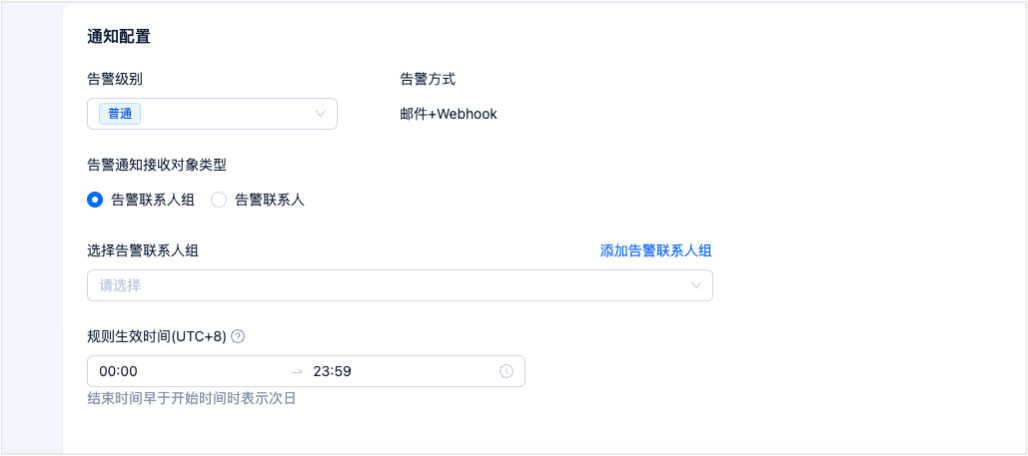

   2. Configure alert notifications.

      Parameter	Description
      Alert Level	Valid values: Info, Warning, and Critical
      Alert Method	The default value is Email+Webhook.
      Alert Contacts	In the left-side list, select contacts to be notified and add them to the list on the right.
      Add Contact	Add contacts to be notified.
      When the Rule Takes Effect	An alert is triggered only within the specified period.

6. Click Create.
