OceanBase Cloud supports restoring backup data to a new instance by creating a new instance. The initiation of restore is restricted by the backup strategy. If no backup strategy is enabled, the operation to initiate restore will not be possible.
Background information
When initiating a restore task, if you want to restore the data of instance A at a specific time to instance B, then A is the source instance, and B is the target instance.
Initiate a restore task
Log in to the OceanBase Cloud console.
In the left-side navigation pane, click Instances.
On the Instances page, click the name of the target instance to go to the Overview page of the instance.
In the left-side navigation pane, click Backup.
In the upper-right corner of the page, click Initiate Restore.
Select a restore method.
Parameter Description Restore Method Specify whether to restore data by backup set or by timestamp. - If you choose to restore data by backup set, select a backup set for the source.
- If you choose to restore data by timestamp, select a restorable point in time for the source.
Select an instance type.
Parameter Description Instance Type Select the type of the instance to be created. Currently, only the analytical cluster instance type is supported. Select a cloud service vendor and a region.
Parameter Description Cloud Vendor Currently, HUAWEI Cloud and Amazon Web Services (AWS) are supported. Region The default value is the region where the source instance resides, and cannot be modified. Specify the instance specifications.
Parameter Description Version Select the target instance version, which must be later than or the same as the source instance version. Deployment Mode The default value is the deployment solution for the source instance, and cannot be modified. Zone - Single-IDC deployment: Select one zone.
- Dual-IDC deployment: Select two zones.
- Multi-IDC deployment: Select three zones.
Compute The size of the CPU and memory resources to be allocated to the target instance. The value must be greater than or equal to that allocated to the source instance. Storage The storage space to be allocated to the target instance. The value must be greater than or equal to that allocated to the source instance. Configure additional information.
Parameter Description Character Set The default value is the same as that for the source instance, and cannot be modified. Table Name Case Sensitivity The default value is the same as that for the source instance, and cannot be modified. Time Zone The default value is the same as that for the source instance, and cannot be modified. Select the purchase quantity.
Parameter Description Quantity The number of instances to be purchased. The default value is 1 and cannot be modified. In the Summary section on the right, check whether the preceding parameters are correctly set. If so, read the service agreement and click Create Instance and Initiate Restore.
The Instances page appears after the restore task is initiated. You can view the target instance status on this page.
View a restore task

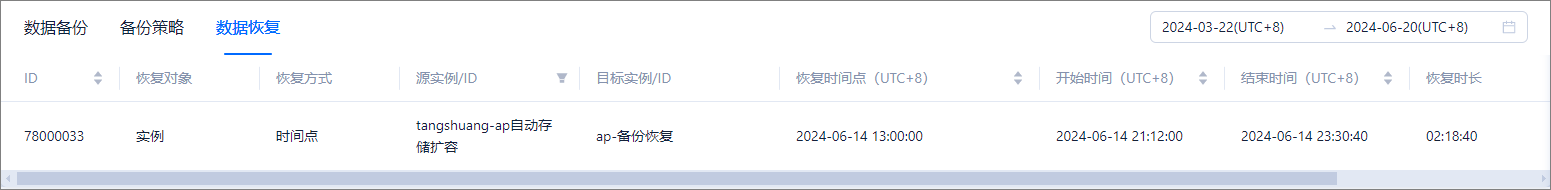

You can view the initiated restore task on the Data Restore tab. The task status includes Running, Successful, Failed, and Unknown.
