Deploy Web ODC

This topic describes how to deploy and log in to Web ODC.

Deploy single-node Web ODC

1. Apply for a tenant in MySQL mode of OceanBase Database. Allocate 2 CPU cores and 8 GB of memory to the tenant. You can name the tenant as you like. Example: The cluster name of the tenant is odc_cluster and the tenant name is odc_tenant.

2. Create a database and a user under the tenant as the ODC metabase. You can set the username, password, and metabase name as you like. Example: The metabase name is odc_metadb and both the database username and password are obodc.

3. Record the name, username, password, tenant name, and cluster name of the metabase, which are required when you deploy ODC.

4. Configure the deployment environment for the single-node Web ODC node based on the number of ODC users.

   Number of ODC users	Server type	Server quantity	Minimum functional configuration	Minimum performance configuration
   20	ODC Docker server	1	2 CPU cores and 4 GB of memory	4 CPU cores and 16 GB of memory

5. For more information about how to install and run the Docker container, see Use bind mounts.

6. Download the ODC image as needed to obtain the desired image architecture in the Maintenance Tools of the OceanBase Download Center.

   Notice

   • The images of ODC V4.2.0 and later versions have been published to Docker Hub. If your local device running ODC can access Docker Hub, you can directly start ODC Docker without downloading the image. For details, see Step 7 to load the image.
   • If Docker Hub cannot be accessed directly, you still need to download and load the image file.

7. After obtaining the image file on the host, run the following statement in the command line tool to load the image:

   Syntax:

   gunzip -c obodc-{$version}.tar.gz | docker load


   Example:

   #!/usr/bin/env bash
   docker run -v /var/log/odc:/opt/odc/log   -v /var/data/odc:/opt/odc/data \
   -d -i --net host --cpu-period 100000 --cpu-quota 400000 --memory 8G --name "obodc" \
   -e "DATABASE_HOST=xxx.xx.xx.xx" \
   -e "DATABASE_PORT=60805" \
   -e "DATABASE_USERNAME=[username]@[tenant name]#[cluster name]" \
   -e "DATABASE_PASSWORD=******" \
   -e "DATABASE_NAME=odc_metadb" \
   -e "ODC_ADMIN_INITIAL_PASSWORD=******" \
   oceanbase/odc:4.2.2


   The following table describes the parameters.

   Parameter	Description
   -v	Maps the host's /var/log/odc directory to the ODC container's /opt/odc/log directory. If the /var/log/odc directory does not exist, you need to create it first. The reference command for creating the directory is mkdir -p /var/log/odc. Mounts the host's /var/data/odc directory to the ODC container's /opt/odc/data directory. The /var/data/odc directory is a custom directory on the host. If it does not exist, you need to create it first. The reference command for creating the directory is mkdir -p /var/data/odc.
   --net	Specifies the network configuration for the container. If you set this parameter to host, the container directly uses the host's network. You can also use the --publish (-p) parameter to configure port mapping. However, in some environments, the container may fail to start due to DNS resolution errors within Docker. In such cases, use the --net host method to start Docker. Default port number: 8989.
   --cpu-period --cpu-quota	--cpu-period specifies the time interval for redistributing CPU resources for the container. Unit: microseconds. --cpu-quota specifies the maximum amount of time that can be allocated to the current container within the specified period. Unit: microseconds. Together, these parameters specify the number of CPU cores available to the container. The value of cpu-quota divided by cpu-period indicates the number of CPU cores available to Docker. For example, 400000/100000=4 indicates that up to 4 CPU cores can be used.
   --memory	Specifies the maximum amount of memory available to the container.
   --name	Specifies the container name.
   DATABASE_HOST	The IP address of the metadata database.
   DATABASE_PORT	The port number of the metadata database. Default port number: 8989.
   DATABASE_USERNAME	The username of the metadata database. The username of OceanBase Database is in the format db_user@tenant_name#cluster_name.
   DATABASE_PASSWORD	The password for connecting to the database.
   DATABASE_NAME	The name of the metadata database.
   ODC_PROFILE_MODE	Specifies the mode. Default value: alipay.
   ODC_ADMIN_INITIAL_PASSWORD	Specifies the initial password for the ODC administrator account (admin).

   Notice

   • In a shell environment, if the string contains special characters such as ! or $, the variable value must be enclosed in single quotes. For example: DATABASE_PASSWORD='11111!'.
   • The ODC_ADMIN_INITIAL_PASSWORD parameter specifies the initial password for the ODC administrator account (admin). The initial password must meet the following conditions:
     • Contain at least 2 digits.
     • Contain at least 2 uppercase letters.
     • Contain at least 2 lowercase letters.
     • Contain at least 2 special characters, which must be from the set ._+@#$%.
     • Not contain spaces or other special characters, and have a length of 8 to 32 characters.

Log in to Web ODC

1. Open the browser, enter the endpoint of Web ODC, and press Enter.

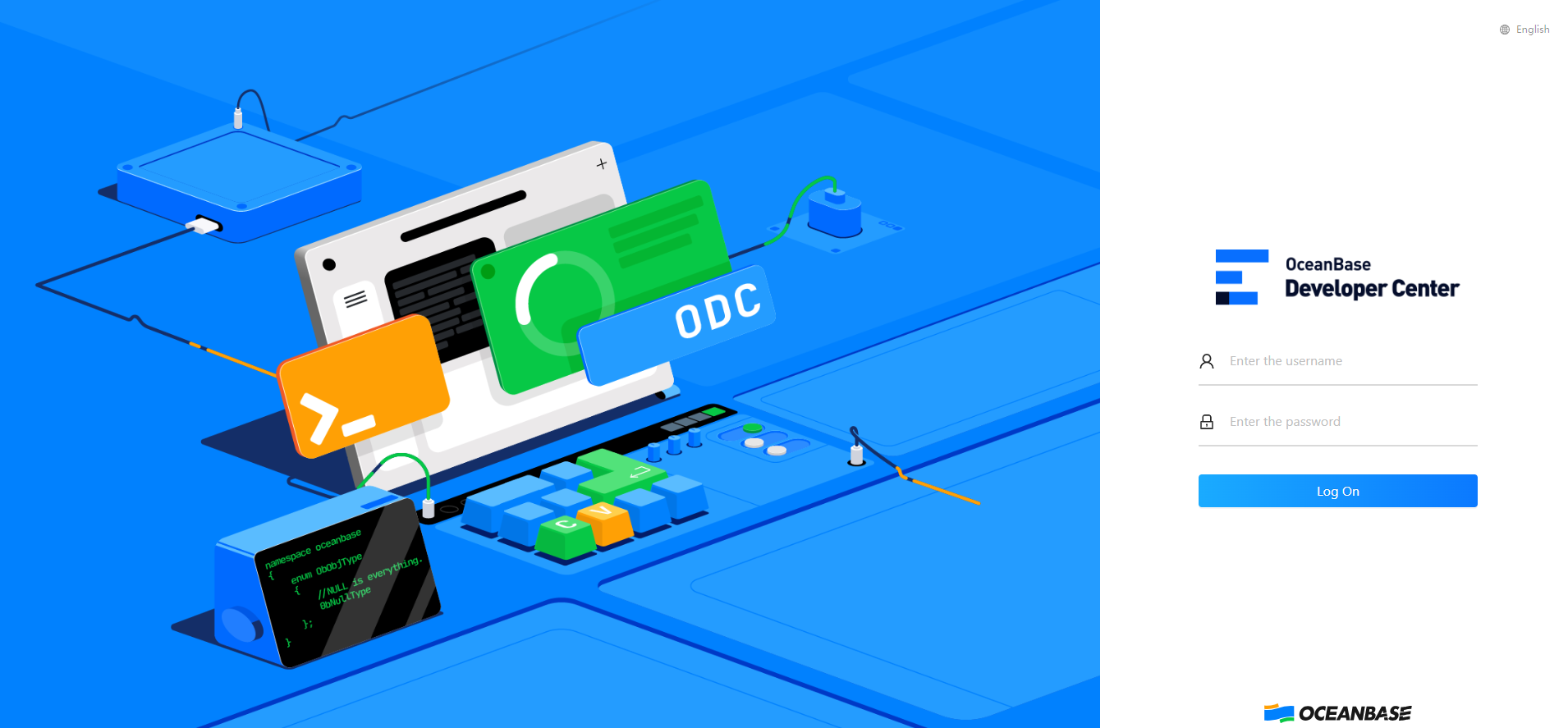

2. Enter the account and password to log in to Web ODC.

   Note

   You can also use SSO integration to automatically maintain account information. For more information, see Configure SSO.



3. Select the target workspace.

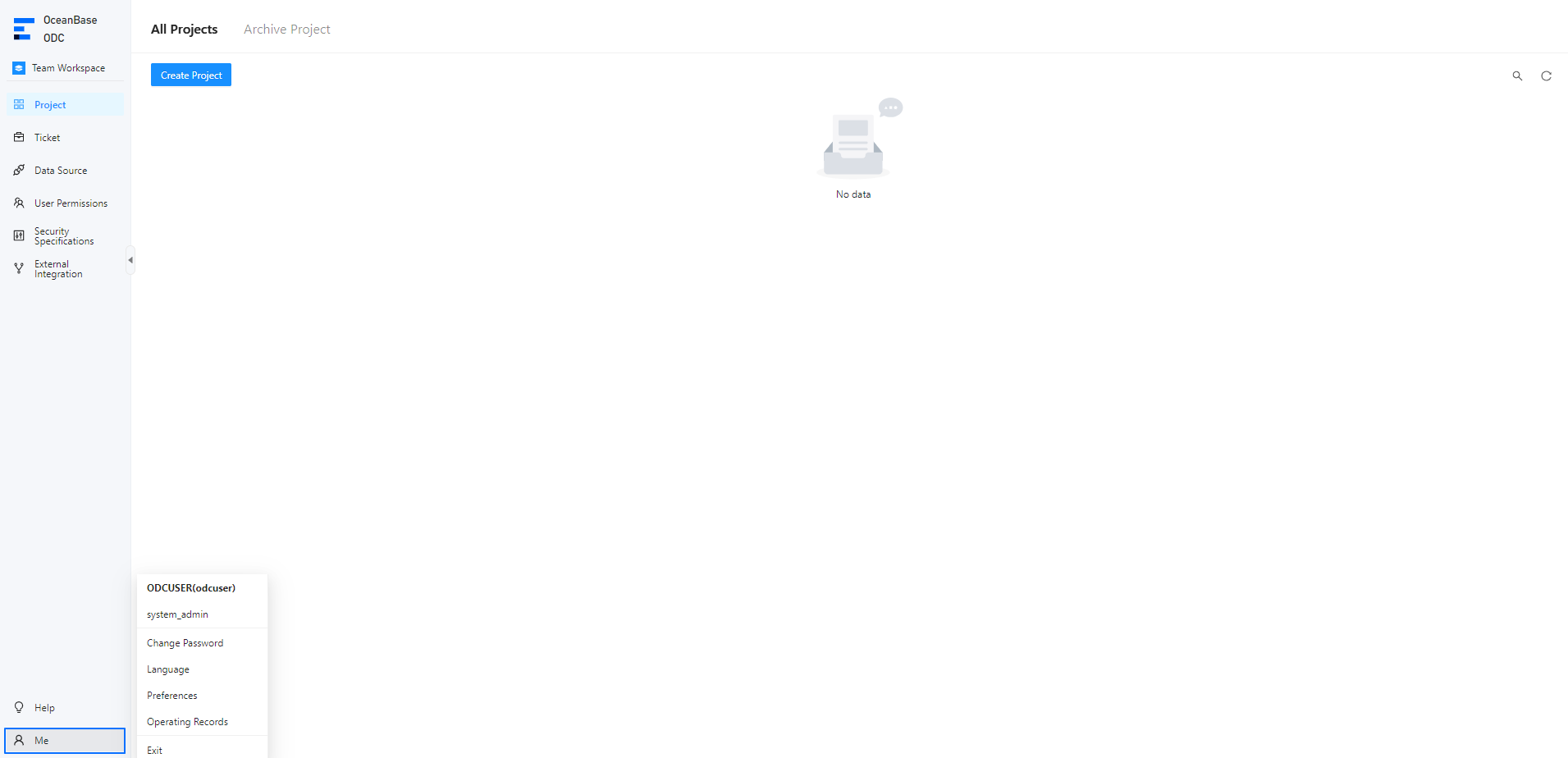

4. Log in to ODC and go to the connection management page. Click My in the lower-left corner of the navigation bar. The account name is displayed. Click Exit in the drop-down menu to return to the ODC logon page. You can log in to ODC with another account.
