Migrate data from a MySQL database to a MySQL-compatible tenant of OceanBase Database

This topic describes how to use OceanBase Migration Service (OMS) to migrate data from a MySQL database to a MySQL-compatible tenant of OceanBase Database, which can be a physical data source or an ApsaraDB for OceanBase data source.

Background information

You can create a data migration task in the OMS console to seamlessly migrate the existing business data and incremental data from a self-managed MySQL database to a MySQL-compatible tenant of OceanBase Database through schema migration, full migration, and incremental synchronization.

MySQL databases in the following modes are supported as the sources: primary database only, standby database only, and primary/standby databases. The following table describes the data migration operations supported by each mode.

Prerequisites

• You have enabled binlogs for the self-managed MySQL database. For more information, see Enable binlogs for a MySQL database.

• You have created dedicated database users in the source MySQL database and the target MySQL-compatible tenant of OceanBase Database for data migration and granted the required privileges to the users. For more information, see Create a database user.

Limitations

• Limitations on the source database

  Do not perform DDL operations that modify database or table schemas during schema migration or full migration. Otherwise, the data migration task may be interrupted.

• At present, OMS supports MySQL 5.5, 5.6, 5.7, and 8.0. It supports only the MySQL InnoDB storage engine, and is unavailable for other engines.

• The precheck fails if the primary key is of the FLOAT or DOUBLE data type. We recommend that you do not specify a column of such a data type as the primary key.

• OMS does not support triggers in the target database. If triggers exist in the target database, the data migration may fail.

• OMS does not support an index field greater than 16,000 bytes (or 4,000 characters) in length for MySQL.

• Data source identifiers and user accounts must be globally unique in OMS.

• OMS supports the migration of only objects whose database name, table name, and column name are ASCII-encoded and do not contain special characters. The special characters are line breaks, spaces, and the following characters: . | " ' ` ( ) = ; / & \.

• A MySQL-compatible tenant of OceanBase Database V3.2.0 does not support the change and modify column operations at the same time in one statement.

• OMS does not support CASCADE foreign key migration for source MySQL databases.

• The clock of the source database must be synchronized with that of the target database.

Considerations

• The host of the MySQL database must have sufficient outbound bandwidth. Insufficient outbound bandwidth on the host will slow down log parsing and data migration, which may increase the latency of data synchronization.

• Take note of the following considerations if the source and target databases use different collations:

  • The data in the target database may be inconsistent with that in the source database after data synchronization. For example, if the collation for the source database is utf8mb4_0900_ai_ci and that for the target database is utf8mb4_general_ci, two data records 'A' and 'A ' cannot be both written to the target database, causing data loss.

  • Data inconsistency will be detected during verification for a table that uses a column of the VARCHAR type as the primary key.

• If the clocks between nodes or between the client and the server are out of synchronization, the latency may be inaccurate during incremental synchronization or reverse incremental migration.

  For example, if the clock is earlier than the standard time, the latency can be negative. If the clock is later than the standard time, the latency can be positive.

• In a task for reverse incremental migration from a MySQL database to a MySQL-compatible tenant of OceanBase Database of a version earlier than V3.2.x, if the source table is a multi-partition table with a global unique index and you update the values of the partitioning key of the table, data may be lost during migration.

• If incremental parsing is required for the MySQL database, you must specify the ID of the MySQL server (server_id).

• When DDL synchronization is disabled, if you change the unique index in the target database, you must restart the Incr-Sync component. Otherwise, the data may be inconsistent.

• Check whether the migration precision of OMS for fields of data types such as DECIMAL, FLOAT, and DOUBLE is as expected. If the precision of the target field type is lower than that of the source field type, the value with a higher precision may be truncated. This may result in data inconsistency between the source and target fields.

• Take note of the following considerations if you want to perform data merge migration:

  • We recommend that you configure the mappings between the source and target databases by specifying matching rules.

  • We recommend that you manually create schemas in the target database. If you use OMS to create schemas, skip failed objects in the schema migration step.

• A difference between the source and target table schemas may result in data consistency. Some known scenarios are described as follows:

  • When you manually create a table schema in the target database, if the data types of any columns are not supported by OMS, implicit data type conversion may occur in the target database, which causes inconsistent column types between the source and target databases.

  • If the length of a column in the target database is shorter than that in the source database, the data of this column may be automatically truncated, which causes data inconsistency between the source and target databases.

• If you select only Incremental Synchronization when you create the data migration task, OMS requires that the archive logs in the source database be retained for more than 48 hours.

  ​If you select Full Migration and Incremental Synchronization when you create the data migration task, OMS requires that the archive logs in the source database be retained for at least 7 days. Otherwise, the data migration task may fail or the data in the source and target databases may be inconsistent because OMS cannot obtain incremental logs.

• If the MySQL database is in dual-primary or multi-primary architecture, set the log_slave_updates parameter to true. Otherwise, the data source may not receive all binlogs, causing data loss.

• If the source and target table objects differ only in capitalization of their names, the data migration result may not be as expected because the object names in the source and target databases are case-insensitive.

Data type mappings

Procedure

1. Create a data migration task.



   1. Log in to the OMS console.

   2. In the left-side navigation pane, click Data Migration.

   3. On the Data Migration page, click Create Migration Task in the upper-right corner.

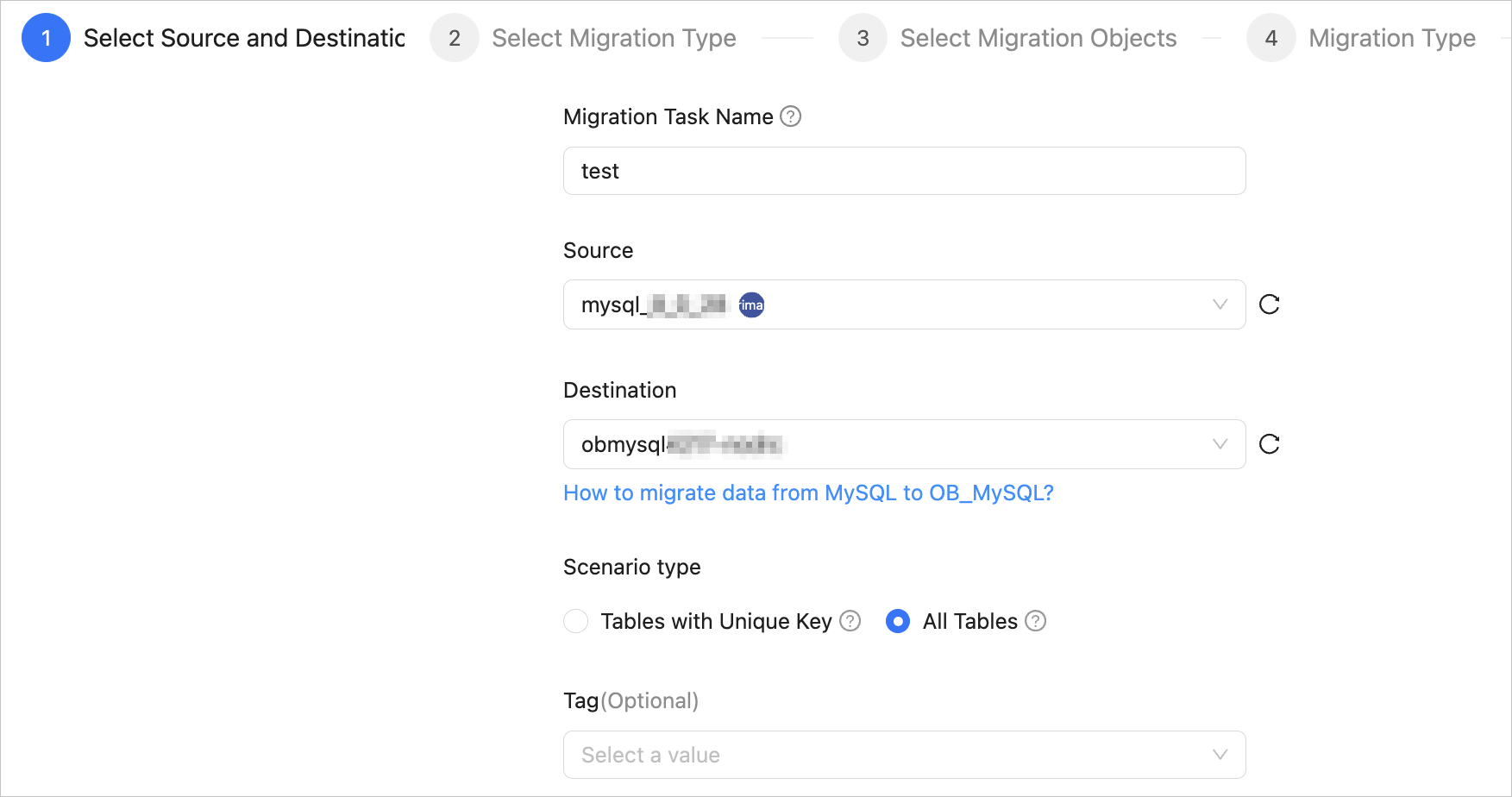

2. On the Select Source and Target page, configure the parameters.



   Parameter	Description
   Data Migration Task Name	We recommend that you set it to a combination of digits and letters. It must not contain any spaces and cannot exceed 64 characters in length. Notice The task name must be a unique identifier in the OMS system.
   Source	If you have created a MySQL data source, select it from the drop-down list. If not, click New Data Source in the drop-down list and create one in the dialog box that appears on the right. For more information about the parameters, see Create a MySQL data source. Note If you select Allow OMS to automatically write heartbeat data into this instance during incremental synchronization. This resolves the problem of high latency when no business data is written in the source database. when you add a MySQL data source, OMS will create and update the drc.heartbeat table in the corresponding MySQL database. In that case, the MySQL database user must have the privileges to create and write the table. For more information, see Create and update a heartbeat table. You can select a MySQL data source in primary database only mode or primary/standby databases mode. This topic describes how to create a data migration task with a MySQL data source in primary/standby databases mode.
   Target	If you have created a data source for the MySQL-compatible tenant of OceanBase Database, which can be a physical data source or an ApsaraDB for OceanBase data source, select it from the drop-down list. If not, click New Data Source in the drop-down list and create one in the dialog box that appears on the right. For more information about the parameters, see Create a physical OceanBase data source or Create an ApsaraDB for OceanBase data source.
   Scenario Type	Valid values: Tables with Unique Key and All Tables. ​If a table has primary key constraints or non-null unique key constraints, this table is a table with a unique key. If you select All Tables, tables with a primary key or a unique key and those without a unique key, except for temporary tables, are included.
   Tag (Optional)	Click the field and select a tag from the drop-down list. You can also click Manage Tags to create, modify, and delete tags. For more information, see Use tags to manage data migration tasks.

3. Click Next.

   If you have selected Tables with Unique Key for Scenario Type, click OK in the dialog box that appears.



4. On the Select Migration Type page, configure the parameters.



   Options for Migration Type are Schema Migration, Full Migration, Incremental Synchronization, Full Verification, and Reverse Increment.

   Migration type	Limitations
   Schema migration	The definitions of data objects, such as tables, indexes, constraints, comments, and views, are migrated from the source database to the target database. Temporary tables are automatically filtered out. In a task that migrates schemas from a MySQL database to a MySQL-compatible tenant of OceanBase Database, the database that does not exist in the target database can be automatically created.
   Full migration	After a full migration task is started, OMS migrates existing data of tables in the source database to corresponding tables in the target database. If you select Full Migration, we recommend that you use the ANALYZE statement to collect the statistics of the MySQL database before data migration.
   Incremental synchronization	Changed data in the source database is synchronized to the corresponding tables in the target database after an incremental synchronization task starts. Supported data changes are data addition, modification, and deletion. Options for Incremental Synchronization are DML Synchronization and DDL Synchronization. Select the options based on your business needs. For more information, see Configure DDL/DML synchronization. Incremental Synchronization has the following limitations: If you select Incremental Synchronization, you need to enable binlogs for the source MySQL database, and set binlog_row_image to full and binlog_format to row. If you select Incremental Synchronization, the binlogs of the MySQL database must be retained for at least 24 hours. Otherwise, the migration task may be interrupted and cannot be resumed because of the absence of binlogs. If you select DDL Synchronization, when you perform a DDL operation that cannot be synchronized by OMS in the source database, data migration may be interrupted. If the DDL operation creates a new column, we recommend that you set the column to NULL. Otherwise, data migration may be interrupted.
   Full verification	After the full migration and incremental synchronization are completed, OMS automatically initiates a full verification task to verify the data tables in the source and target databases. If you select Full Verification, we recommend that you collect the statistics of the MySQL database and the MySQL-compatible tenant of OceanBase Database before full verification. For more information about how to collect statistics of a MySQL-compatible tenant of OceanBase Database, see Manual statistics collection. If you have selected Incremental Synchronization but did not select all DML statements in the DML Synchronization section, OMS does not support full verification. OMS supports full verification only for tables with a primary key or a non-null unique key.
   Reverse incremental migration	When a reverse incremental migration task starts, OMS migrates the data changed in the target database after the business switchover back to the source database in real time. Generally, incremental synchronization configurations are reused for reverse incremental migration. You can also customize the configurations for reverse incremental migration as needed. You cannot select Reverse Increment in the following cases: Data merge migration that involves multiple tables is enabled. Multiple source schemas map to the same target schema.

5. (Optional) Click Next.

   If you have selected Reverse Increment without configuring the related parameters for the target MySQL-compatible tenant of OceanBase Database, the More About Data Sources dialog box appears, prompting you to configure related parameters. For more information about the parameters, see Create a physical OceanBase data source or Create an ApsaraDB for OceanBase data source.

   After you configure the parameters, click Test Connection. After the test succeeds, click OK.

6. Click Next. On the Select Migration Objects page, select the migration objects and migration scope.

   You can select Specify Objects or Match Rules to specify the migration objects. The following procedure describes how to specify migration objects by using the Specify Objects option. For information about the procedure for specifying migration objects by using the Match Rules option, see the Configure matching rules for data migration/synchronization from a database to a Message Queue instance section in the Configure matching rules topic.

   Notice

   • The names of tables to be migrated, as well as the names of columns in the tables, must not contain Chinese characters.

   • When you choose the **Specify Objects** option, do not select tables named in the *_ghc format.

     When you choose the **Match Rules** option, set Object Exclusion Rule to {database_name}.*_ghc.

   • If a database or table name contains double dollar signs ("$$"), you cannot create the migration task.

   • If you have selected DDL Synchronization in the Select Migration Type step, we recommend that you select Match Rules to specify migration objects. This way, all new objects that meet the specified rules will be synchronized. If you select Specify Objects to specify migration objects, new or renamed objects will not be synchronized.

   • OMS automatically filters out unsupported tables. For information about the SQL statements for querying table objects, see SQL statements for querying table objects.



   1. In the Select Migration Objects section, select Specify Objects.

   2. In the Specify Migration Scope section, select the objects to be migrated from the Source Object(s) list. You can select tables and views of one or more databases as the migration objects.

   3. Click > to add the selected objects to the Target Object(s) list.

   OMS also allows you to import objects from text, rename objects, set row filters, view column information, and remove a single object or all objects to be migrated.

   Note

   When you select Match Rules to specify migration objects, object renaming is implemented based on the syntax of the specified matching rules. In the operation area, you can only set filter conditions. For more information, see Configure matching rules.

   Operation	Description
   Import objects	In the list on the right of the Specify Migration Scope section, click Import Objects in the upper-right corner. In the dialog box that appears, click OK. Notice This operation will overwrite previous selections. Proceed with caution. In the Import Objects dialog box, import the objects to be migrated. You can import CSV files to rename databases/tables and set row filter conditions. For more information, see Download and import the settings of migration objects. Click Validate. After the validation succeeds, click OK.
   Rename objects	OMS allows you to rename migration objects. For more information, see Rename a migration or synchronization object.
   Configure settings	OMS allows you to filter rows by using WHERE conditions. For more information, see Use SQL conditions to filter data. You can also view column information of the migration objects in the View Column section.
   Remove one or all objects	OMS allows you to remove a single object or all objects to be migrated to the target database during data mapping. To remove a single migration object: In the list on the right of the Specify Migration Scope section, move the pointer over the target object and click Remove. To remove all migration objects: In the list on the right of the Specify Migration Scope section, click Remove All in the upper-right corner. In the dialog box that appears, click OK.

7. Click Next.

   If you select All Tables for Scenario Type, click Next in the dialog box that appears.

8. On the Migration Options page, configure the parameters.

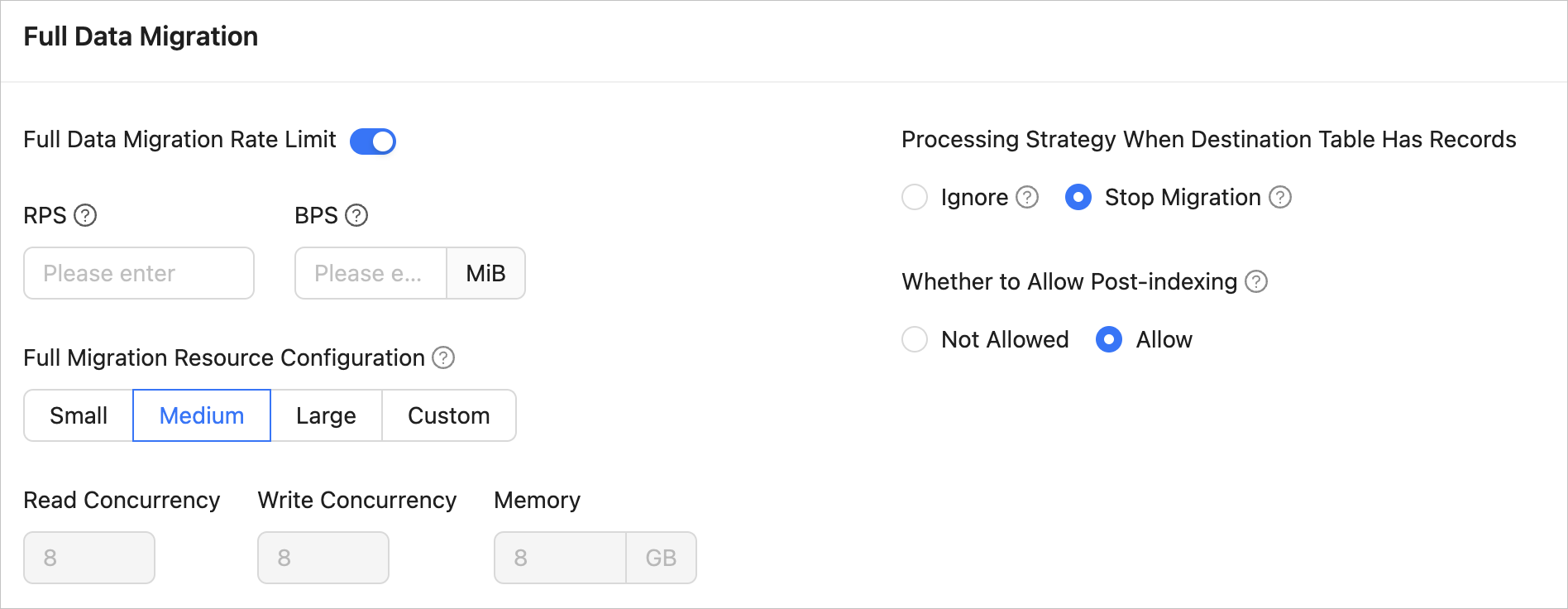

   • Full migration

     The following parameters are displayed only if you have selected Full Migration on the Select Migration Type page.



     Parameter	Description
     Full Migration Rate Limit	You can choose whether to limit the full migration rate as needed. If you choose to limit the full migration rate, you must specify the records per second (RPS) and bytes per second (BPS). The RPS specifies the maximum number of data rows migrated to the target database per second during full migration, and the BPS specifies the maximum amount of data in bytes migrated to the target database per second during full migration. Note The RPS and BPS values specified here are only for throttling. The actual full migration performance is subject to factors such as the settings of the source and target databases and the instance specifications.
     Full Migration Resource Configuration	You can select Small, Medium, or Large to use the corresponding default values of Read Concurrency, Write Concurrency, and Memory. You can also customize the resource configurations for full migration. Through resource configuration for the Full-Import component, you can limit the resource consumption of a task in the full migration phase. Notice In the case of custom configurations, the minimum value is 1, and only integers are supported.
     Processing Strategy When Target Table Has Records	Valid values are Ignore and Stop Migration. If you select Ignore, when the data to be inserted conflicts with the existing data of a target table, OMS retains the existing data and records the conflict data. Notice If you select Ignore, data is pulled in IN mode for full verification. In this case, the scenario where the target table contains more data than the source table cannot be verified, and the verification efficiency will be decreased. If you select Stop Migration and a target table contains data, an error is returned during full migration, indicating that the migration is not allowed. In this case, you must clear the data in the target table before you can continue with the migration. Notice After an error is returned, if you click Resume in the dialog box, OMS ignores this error and continues to migrate data. Proceed with caution.
     Whether to Allow Post-indexing	Specifies whether to create indexes after the full migration is completed. Post-indexing can shorten the time required for full migration. For more information about the considerations on post-indexing, see the description below. Notice This feature is supported only if you have selected both Schema Migration and Full Migration on the Select Migration Type page. Only non-unique key indexes can be created after the migration is completed. OceanBase Database V1.x does not support the post-indexing feature.

     If post-indexing is allowed, we recommend that you adjust the parameters based on the hardware conditions of your OceanBase Database and the current business traffic.

     • If you use OceanBase Database V4.x, adjust the following parameters of the sys tenant and business tenants by using a CLI client.

       • Adjust the parameters of the sys tenant

         // parallel_servers_target specifies the queuing conditions for parallel queries on each server.
         // To maximize performance, we recommend that you set this parameter to a value greater than, for example, 1.5 times, the number of physical CPU cores. In addition, make sure that the value does not exceed 64, to prevent database kernels from contending for locks.
         set global parallel_servers_target = 64;


       • Adjust the parameters of a business tenant

         // Specify the limit on the file memory buffer size.
         alter system set _temporary_file_io_area_size = '10' tenant = 'xxx';
         // Disable throttling in V4.x.
         alter system set sys_bkgd_net_percentage = 100;


     • If you use OceanBase Database V2.x or V3.x, adjust the following parameters of the sys tenant by using a CLI client.

       // parallel_servers_target specifies the queuing conditions for parallel queries on each server.
       // To maximize performance, we recommend that you set this parameter to a value greater than, for example, 1.5 times, the number of physical CPU cores. In addition, make sure that the value does not exceed 64, to prevent database kernels from contending for locks.
       set global parallel_servers_target = 64;
       // data_copy_concurrency specifies the maximum number of concurrent data migration and replication tasks allowed in the system.
       alter system set data_copy_concurrency = 200;

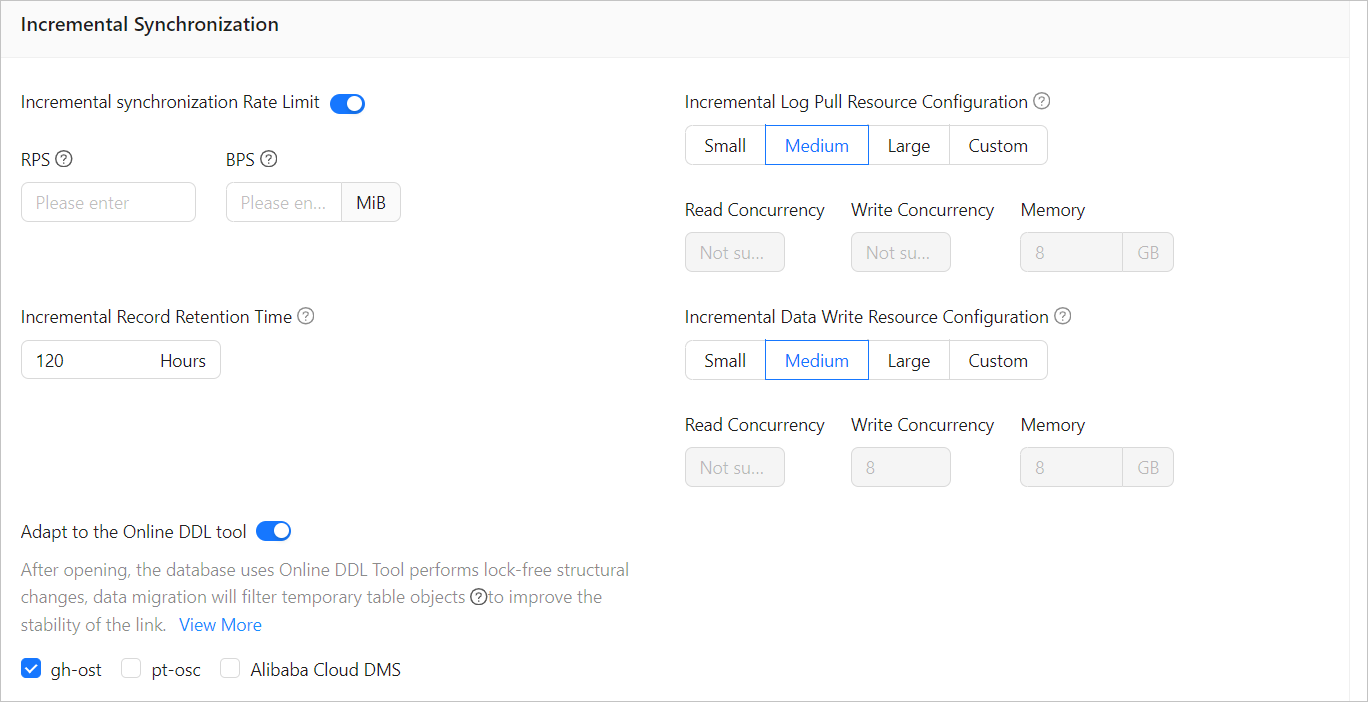

   • Incremental synchronization

     The following parameters are displayed only if you have selected Incremental Synchronization on the Select Migration Type page.



     Parameter	Description
     Incremental Synchronization Rate Limit	You can choose whether to limit the incremental synchronization rate as needed. If you choose to limit the incremental synchronization rate, you must specify the RPS and BPS. The RPS specifies the maximum number of data rows synchronized to the target database per second during incremental synchronization, and the BPS specifies the maximum amount of data in bytes synchronized to the target database per second during incremental synchronization. Note The RPS and BPS values specified here are only for throttling. The actual incremental synchronization performance is subject to factors such as the settings of the source and target databases and the instance specifications.
     Incremental Log Pull Resource Configuration	You can select Small, Medium, or Large to use the corresponding default value of Memory. You can also customize the resource configurations for incremental log pull. Through resource configuration for the Store component, you can limit the resource consumption of a task in log pull in the incremental synchronization phase. Notice In the case of custom configurations, the minimum value is 1, and only integers are supported.
     Incremental Data Write Resource Configuration	You can select Small, Medium, or Large to use the corresponding default values of Write Concurrency and Memory. You can also customize the resource configurations for incremental data write. Through resource configuration for the Incr-Sync component, you can limit the resource consumption of a task in data writes in the incremental synchronization phase. Notice In the case of custom configurations, the minimum value is 1, and only integers are supported.
     Incremental Record Retention Time	The duration that incremental parsed files are cached in OMS. A longer retention period results in more disk space occupied by the Store component.
     Incremental Synchronization Start Timestamp	If you have set the migration type to Full Migration, this parameter is not displayed. If you have selected Incremental Synchronization but not Full Migration, specify a point in time after which the data is to be synchronized. The default value is the current system time. For more information, see Set an incremental synchronization timestamp.
     Adapt to the Online DDL tool	After you enable this feature, OMS allows you to use an online DDL tool to perform lock-free schema changes. OMS filters out temporary table objects during data migration to improve the stability of data migration. For more information, see Online DDL tools. Note At present, OMS allows you to use Alibaba Cloud Data Management Service (DMS), gh-ost, or pt-osc to perform lock-free schema changes only when you migrate data from a MySQL database.

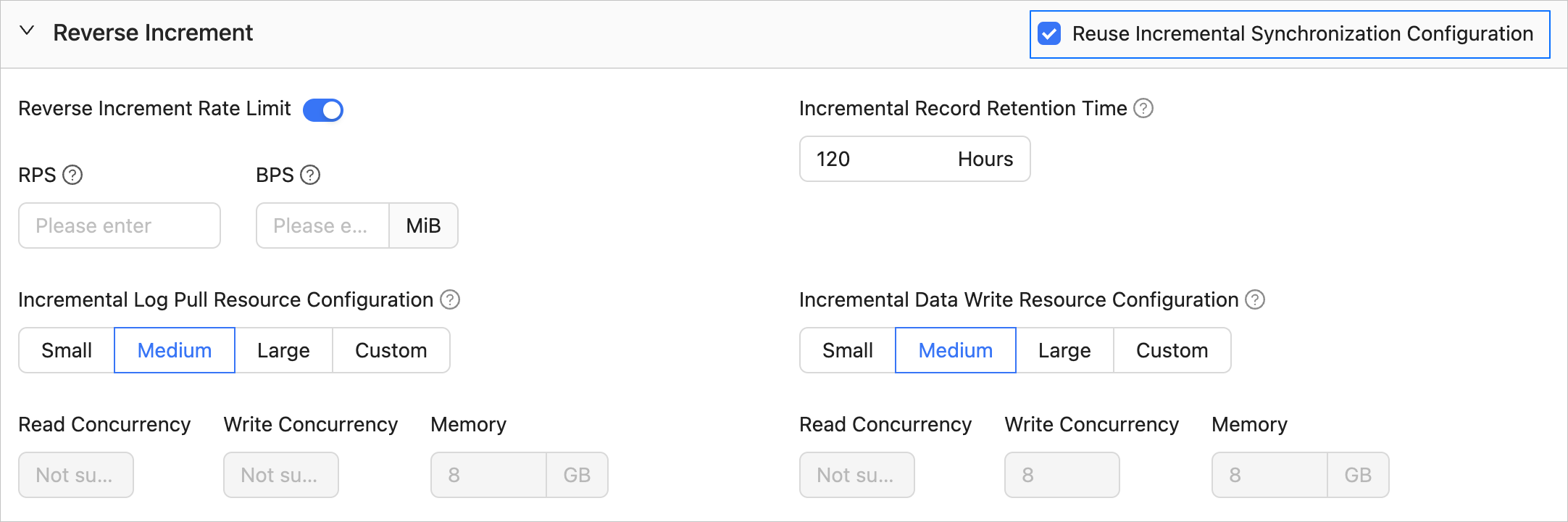

   • Reverse incremental migration

     The following parameters are displayed only if you have selected Reverse Increment on the Select Migration Type page. The parameters for reverse incremental migration are consistent with those for incremental synchronization. You can select Reuse Incremental Synchronization Configuration in the upper-right corner.

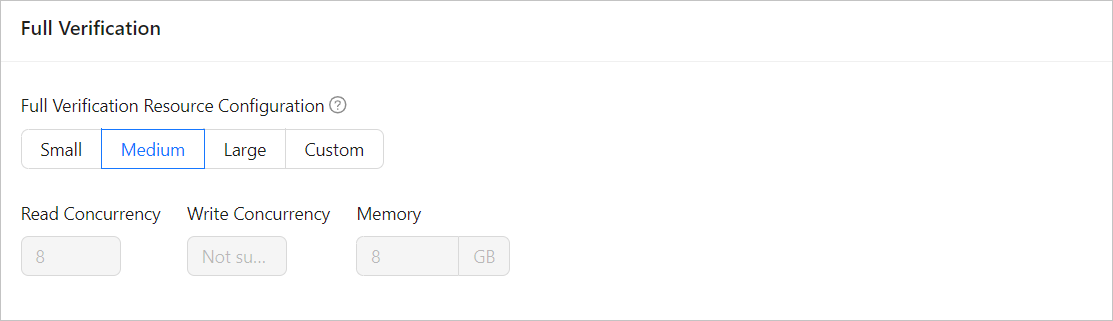

   • Full verification

     The following parameters are displayed only if you have selected Full Verification on the Select Migration Type page.



     Parameter

     Description

     Full Verification Resource Configuration

     You can select Small, Medium, or Large to use the corresponding default values of Read Concurrency and Memory. You can also customize the resource configurations for full verification. Through resource configuration for the Full-Verification component, you can limit the resource consumption of a task in the full verification phase. Notice In the case of custom configurations, the minimum value is 1, and only integers are supported.

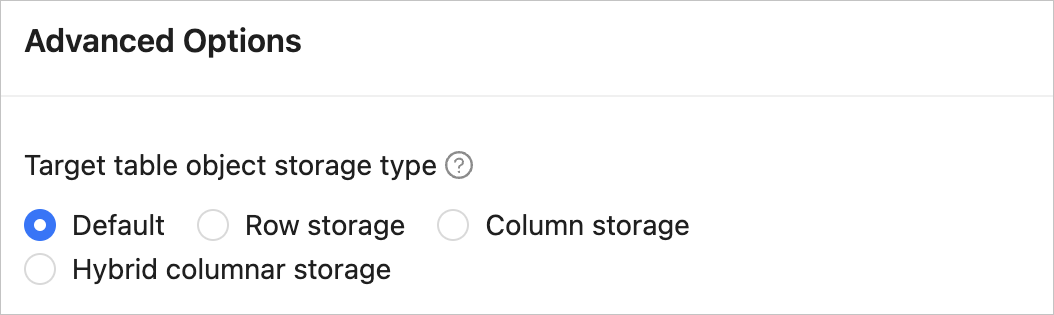

   • Advanced options

     This section is displayed only if the target is a MySQL-compatible tenant of OceanBase Database V4.3.0 or later and you have selected Schema Migration or DDL Synchronization for Incremental Synchronization on the Select Migration Type page.



     This parameter specifies the storage type for target table objects during schema migration or incremental synchronization. The storage types supported for target table objects are Default, Row storage, Column storage, and Hybrid columnar storage. For more information, see default_table_store_format.

     Note

     The value Default means that other parameters are automatically set based on the parameter configurations of the target database. For table objects in schema migration or new table objects in incremental DDL synchronization, the schemas are subject to the specified storage type.

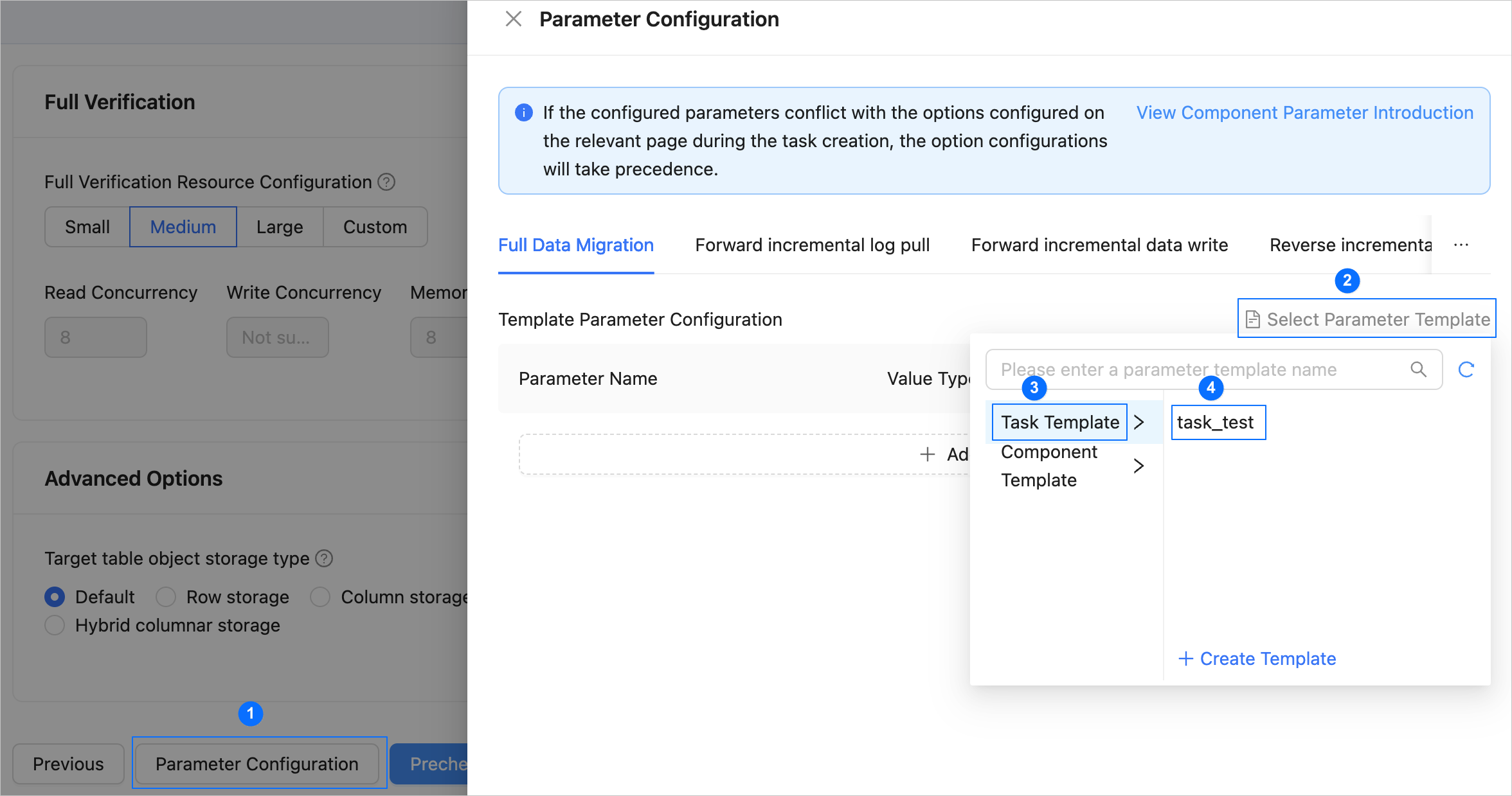

   If the parameter settings on the page cannot meet your requirements, you can click Parameter Configuration in the lower part of the page to configure more specific settings. You can also reference an existing task or component template.



9. Click Precheck to start a precheck on the data migration task.

   During the precheck, OMS checks the read and write privileges of the database users and the network connectivity of the databases. A data migration task can be started only after it passes all check items. If an error is returned during the precheck, you can perform the following operations:

   • Identify and troubleshoot the problem and then perform the precheck again.

   • Click Skip in the Actions column of a failed precheck item. In the dialog box that prompts the consequences of the operation, click OK.

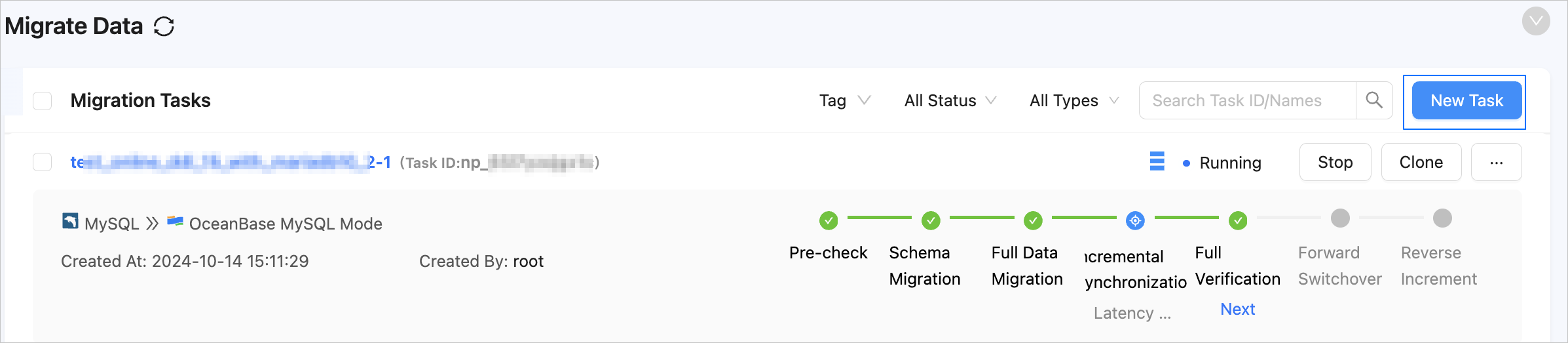

10. Click Start Task. If you do not need to start the task now, click Save to go to the details page of the task. You can start the task later as needed.

OMS allows you to modify the migration objects when the data migration task is running. For more information, see View and modify migration objects. After the data migration task is started, it is be executed based on the selected migration types. For more information, see the View migration details section in the View details of a data migration task topic.
