This topic describes the actions you can take on the Backup Overview page and the information of backup tasks that you can view.
Overview
On the Backup Overview page, you can perform the following actions:
Create a backup strategy for backup scheduling.
Back up now for a cluster or tenant.
View backup tasks.
You can specify a time range to view data backup tasks, log backup tasks, and backup cleanup tasks of regular backups, and start or stop a task.
View second backup tasks.
You can specify a time range to view second data backup tasks and second log backup tasks, and start or stop a task.
View backup tasks

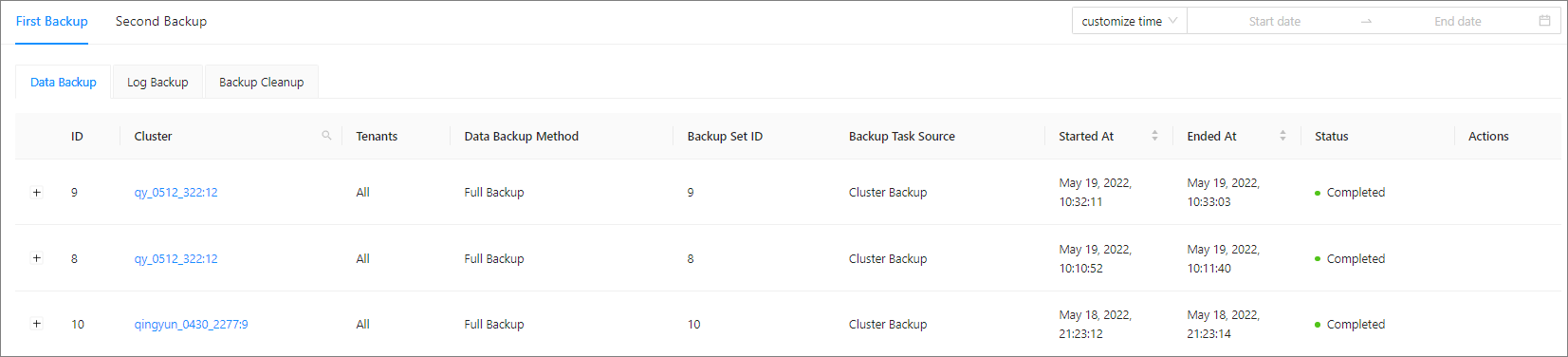

Data backup tasks
The table on the Data Backup Tasks tab contains the following columns: ID, Cluster, Tenant, Data Backup Mode, Backup Set ID, Backup Task Source, Start Time, End Time , Status , Second Backup , and Actions . You can filter backup tasks by status. The following table describes more information.
In the upper-right corner of the tab, you can select Last 24 Hours, Last 7 Days, or Last 30 Days, or select Custom Time and specify a time range, to filter data backup tasks by time.
| Parameter | Description |
|---|---|
| ID | Click the plus sign ( + ) on the right of the ID to view Backup Method , Data Version , and Storage Directory . |
| Cluster | Click the cluster name in the Cluster column. The Overview page of the cluster appears. |
| Data Backup Mode | Valid values: Full and Incremental . |
| Backup Task Source | The application of the backup task. |
| Status | Valid values: In Progress , Failed , and Completed . |
| Second Backup | If the value is Yes , you can click Yes to view all second backup tasks for the data. |
| Actions | If the data backup task fails, click View Cause in the Actions column. |

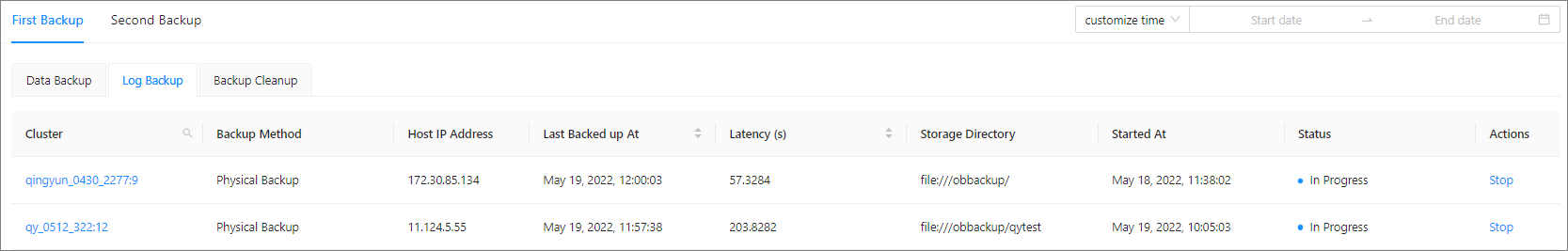

Log backup tasks
The table on the Log Backup tab contains the following columns: Cluster, Backup Method, Host IP Address, Latest Backup Time, Latency, Storage Directory , Start Time , Status , and Actions . You can filter the backup tasks by status. The following table describes more information.
In the upper-right corner of the tab, you can select Last 24 Hours, Last 7 Days, or Last 30 Days, or select Custom Time and specify a time range, to filter log backup tasks by time.
| Parameter | Description |
|---|---|
| Cluster | You can search for clusters. Click the cluster name in the Cluster column. The Overview page of the cluster appears. |
| Backup Mode | The backup mode of the cluster. Valid values: Logical Backup and Physical Backup . |
| Service Host IP | The IP address of the service host, for example, 192.168.1.1. |
| Latest Backup Time | The point in time of the latest log backup. |
| Latency | The time difference between the backup data and the real-time data. |
| Status | Valid values: Starting , In Progress , Stopping , Stopped , and Failed . |
| Actions | For a cluster in the Starting or In Progress state, this column provides the Stop option. For a cluster in the Stopped state, this column provides the Start option. |
Backup cleanup
The table on the Backup Cleanup tab contains the following columns: ID , Cluster, Start Time, End Time , and Status . You can filter the cleanup tasks by status. The status can be Pending , Executing , Failed , or Completed .
In the upper-right corner of the tab, you can select Last 24 Hours, Last 7 Days, or Last 30 Days, or select Custom Time and specify a time range, to filter the cleanup tasks by time.
View second backup tasks
Second data backup tasks
The table on the Second Data Backup tab contains the following columns: ID, Cluster, Tenant, Backup Set ID, Start Time, End Time , Storage Directory , and Status . You can filter the second backup tasks by status.
Cluster column: Click a cluster name in this column to go to the Overview page of the cluster. You can search for clusters.
Backup Set ID column: Click an ID in this column to view all data backup tasks for the backup set.
In the upper-right corner of the tab, you can select Last 24 Hours, Last 7 Days, or Last 30 Days, or select Custom Time and specify a time range, to filter second data backup tasks by time.
Second log backup tasks
The table on the Log Backup tab contains the following columns: Cluster, Latest Backup Time, Storage Directory , Start Time , and Status .
In the upper-right corner of the tab, you can select Last 24 Hours, Last 7 Days, or Last 30 Days, or select Custom Time and specify a time range, to filter second log backup tasks by time.
