Create a function in ODC

Overview

A function is a subprogram defined in a database. You can call functions by using built-in SQL statements. If the built-in functions cannot meet your business requirements, OceanBase Developer Center (ODC) allows you to create functions. User-defined functions not only help you perform some calculations and special operations, but also reduce coding redundancy to improve the code readability.

A function is a procedural object that is similar to a stored procedure in a database. Like a stored procedure, a function is a code snippet of SQL statements and procedural statements, and can be called by applications and other SQL statements.

The following information describes the differences between a user-defined function and a stored procedure:

• A function returns only one result and is suitable for data processing that generates one result. A stored procedure may return zero or multiple results and is suitable for batch insertion and batch update.

• You can call a function by using a SELECT statement. You can call a stored procedure by using a CALL statement.

As shown in the preceding figure, you can create a function in the following six steps:

1. Specify the function name.

2. Specify the data type of the return value.

3. Configure parameters.

4. Check the parameters of the new function.

5. Modify the function.

6. Complete the function creation.

Procedure

In the following example, a function named function_emp is created in the ODC console to obtain the employee name from an employee table based on the employee ID. The function_emp function contains an id parameter of the INT type. Procedure:

Step 1: Specify the function name

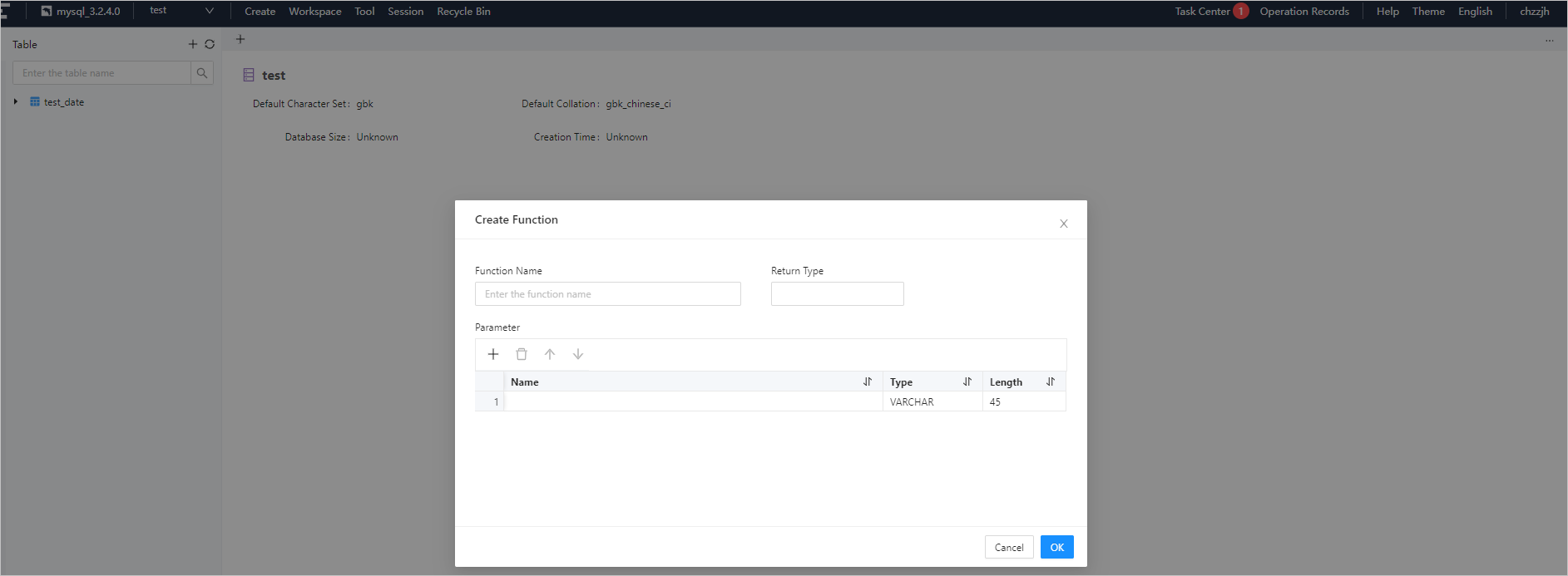

Log on to the ODC console and click the name of a connection to go to the corresponding connection management page. You can click Function in the left-side navigation pane to get a list of functions. To create a function, click the + icon in the upper-right corner of the function list or click Create in the top navigation bar.

Step 2: Specify the data type of the return value

For more information about data types, see Data type overview.

Step 3: Configure parameters

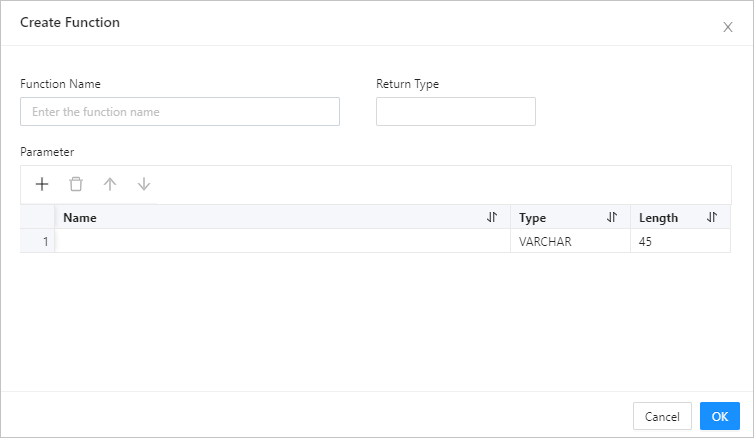

1. Parameters specify the information passed to a function when the function is called. You need to configure the following parameters: Name, Type, and Length.

2. You can configure parameters by using one of the following three methods.

   Method	Description
   Use the quick access toolbar	In the quick access toolbar, you can add, delete, and move up and down parameters.
   Click the row number	- You can click a row number to select a row and display the quick access toolbar that allows you to delete the row or move the row up or down. - You can click a row number to select the row, and then drag the row to adjust its order.
   Right-click a row	You can right-click a row to select it, and then select Copy or Move Down from the context menu that appears.

   Note

   After you copy a row, you can paste the row by using the Command+V or Ctrl+V shortcut keys.

Step 4: Check the parameters of the new function.

Click OK to go to the Create Function page.

Step 5: Modify the function.

Modify the function statement on the Create Function page.

In addition, the toolbar on the editing page provides buttons described in the following table.

You can modify the SQL statements of the created function on the Create Function page. Syntax:

CREATE FUNCTION function_name ([var_name var_type[,...]])
RETURNS return_type
 delarification_block
BEGIN
    function_body
EXCEPTION
    exception_handler
END;

Parameters

Example:

CREATE FUNCTION `function_emp` ( `id` int(45)) RETURNS VARCHAR(300)

-- The start of the function body.
BEGIN

-- Declare a variable.
DECLARE
  a VARCHAR(300);

-- Assign a value to the variable.
SELECT
  name INTO a
FROM
  employee
WHERE
  emp_no = id;

-- The return value.
RETURN a;

-- The end of the function body.
END

Step 6: Complete the function creation.

Click Create in the upper-right corner to create the function. After a user-defined function is created, you can use the SELECT statement to call the function, in the same way you call a built-in function.

Note

• To manage a function, right-click the function name in the left-side navigation pane, and select the required operation from the context menu, which provides the following options: View, Create, Run, Download, Delete, and Refresh.
• For more information, see Manage functions.

Syntax:

SELECT function_name ([function_parameter [,...]])

Example:

SELECT function_emp(2);
