This topic describes how to view task details and handle failed tasks.
Prerequisite
You have the ADMIN or TASK_MANAGER role.
View task details
Log on to the OceanBase Cloud Platform (OCP) console.
In the left-side navigation pane, choose System Management > Tasks .

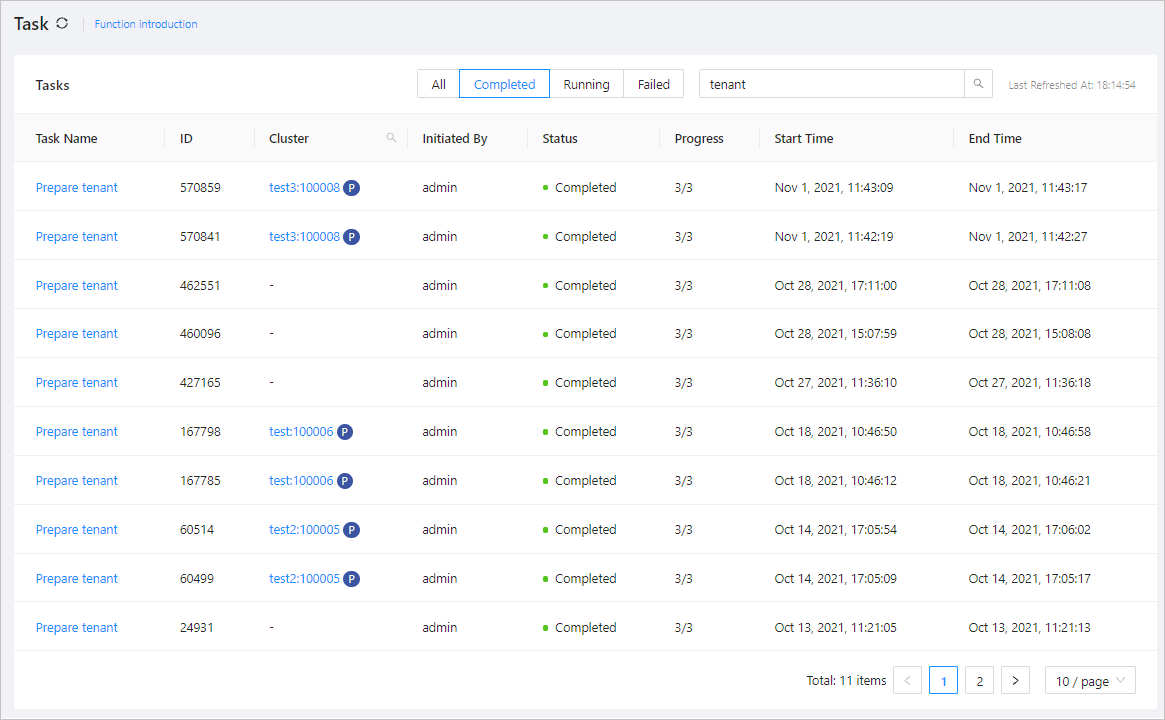

In the upper-right corner of the Tasks list, select a task status, enter a cluster name, and click Search.
All tasks that match the criteria will be displayed in the Tasks list.
Click the name of a task to go to its details page.
By default, the task details page is displayed in log view. You can switch to flow view by clicking the button shown in Area 1 in the following figure.
The log view displays logs of ongoing tasks. You can switch it in Area 2 in the following figure. If a task is retried or rolled back after the
Prepare upgrade clusterstep fails, Area 2 displays three buttons for execution, retry, and rollback, respectively. You can click a button to open its operation logs.

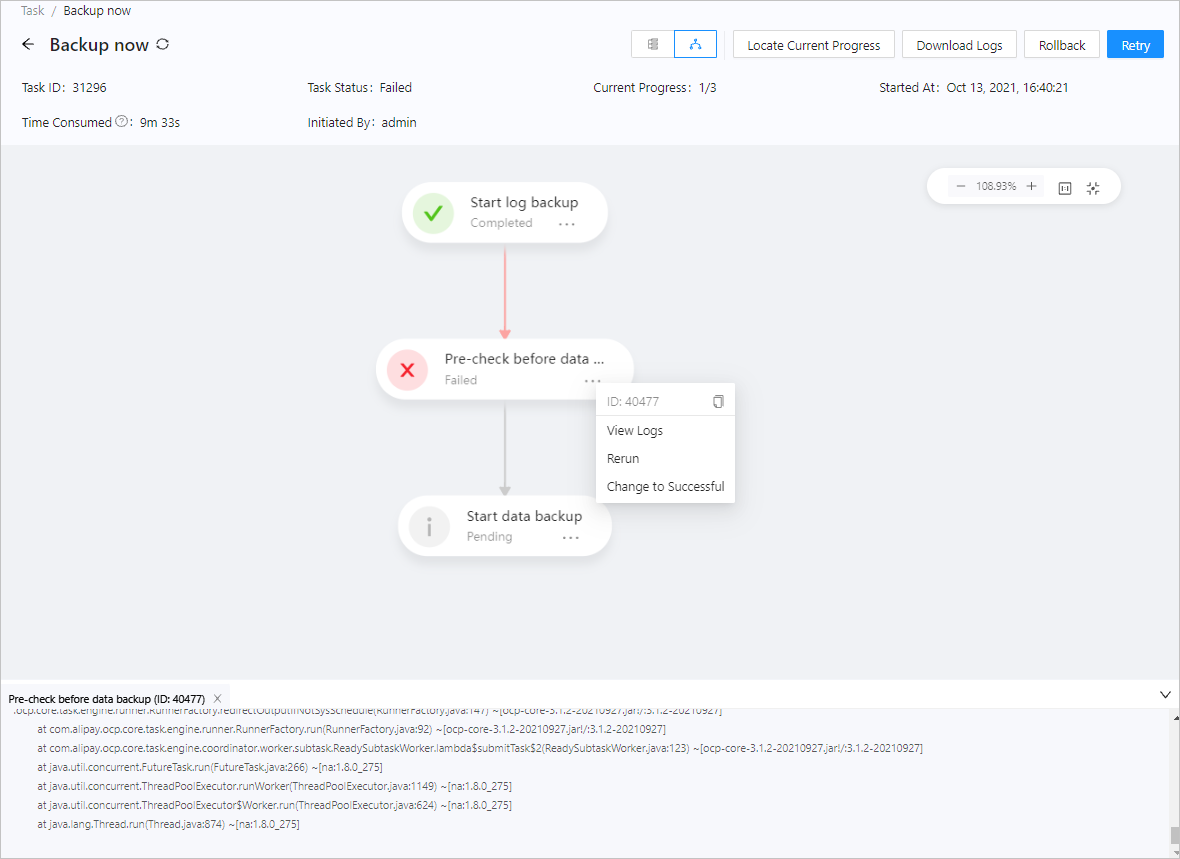

On the task details page of the flow view, you can click the More icon on the right of a step, and then click an action in the list that appears. Different steps support different actions, so the actions displayed in the list after you click the More icon (...) are not always the same. This action is also supported in log view.
Note
On the task details page, the flow view shows the sequence of different steps in a flowchart. Drag the pointer in an empty area to move the flowchart. Scroll to zoom in and out. You can also use the zoom control in the upper-right corner to adjust the canvas size. The center of zooming is the pointer. For a long task, you can first zoom out, locate the node of interest, and then zoom in from there.
Expand the menu to display the log information in the lower part of the screen. You can drag edges of a window to expand it.
For failed steps, you can perform the following operations:
View the logs.
Rerun: Rerun the step. The operation will be first rolled back, and then performed again. If the operation is successful, subsequent steps are performed.
Set to Successful: After you set the status of a failed step to successful, subsequent steps are performed.
For steps that are running, you can view the logs or terminate them. After you terminate a running step, its status becomes failed.
For steps that are waiting to be performed, you can do nothing.
Retry or abort a failed task
Log on to the OCP console.
In the left-side navigation pane, choose System Management > Tasks .
In the upper-right corner of the Tasks list, select a task status, enter a cluster name, and click Search.
Click the name of a task to go to its details page.
In the upper-right corner of the task details page, click Abort Task or Retry .
Abort Task: Roll back each step from the failed step all the way back to the first step. Task abortion is mainly used for resource recollection and status modification.
Retry: Roll back all the failed steps and execute them again. If the execution is successful, proceed to the subsequent steps.
