Add an OBProxy

This topic describes how to add an OBProxy.

Procedure

1. Log on to the OCP console.

2. In the left-side navigation pane, click OBProxy .

3. In the OBProxy cluster list, click the target OBProxy cluster to go to its overview page.

4. Click Add OBProxy .

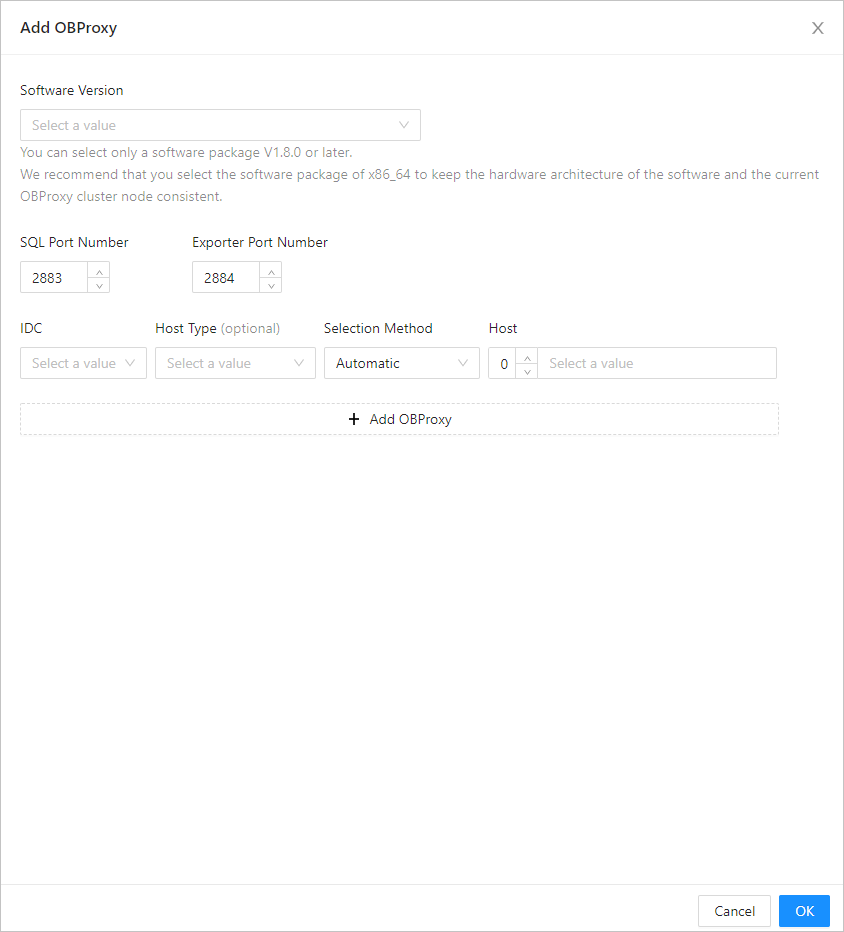

5. In the dialog box that appears, specify the following fields: Software Version , IDC , SQL Port Number , Exporter Port Number , Host Type , Selection Method ,and Host . For more information, see Create an OBProxy cluster.

6. Click OK .
