Client ODC startup failure / H2 Database corruption: Chuck not found

Symptom

Client ODC fails to start. Error log: "java.lang.IllegalStateException: Chunk *** not found".

Possible causes

The MetaDB of client ODC, H2 Database, is corrupted. For more information, see IllegalStateException: Chunk not found in v1.4.200/9 and Cursor sporadically fail with 'IllegalStateException: Chunk {number} not found' on GitHub.

Solutions

Recover the MetaDB files.

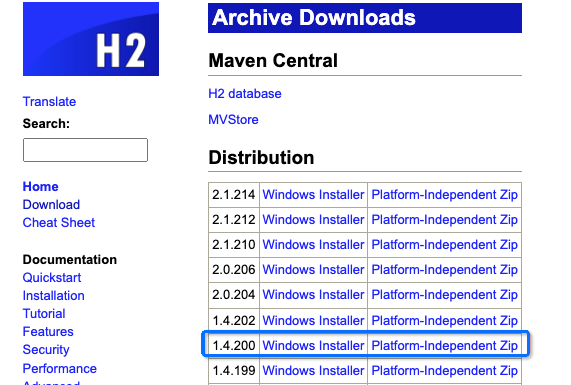

Step 1: Download the recovery tool

Download and install the recovery tool.

Step 2: Generate the recover SQL statement

1. View the path of the MetaDB files. The metadata of client ODC is maintained in the embedded H2 Database:

   • On Windows, the data file path is %USERPROFILE%\AppData\Roaming\odc.

     Recover the MetaDB files.

     cd %USERPROFILE%\AppData\Roaming\odc\


   • On macOS, the data file path is /Users/{user}/Library/Application Support/odc.

     cd ~/"Library/Application Support/odc"
     ls odc*.db

     # View the following two files, that is, the data files corresponding to the H2 Database.
     #odc2.0.mv.db    odc2.0.trace.db


2. Copy the corrupted ODC MetaDB file odc2.0.mv.db to the h2\bin directory.

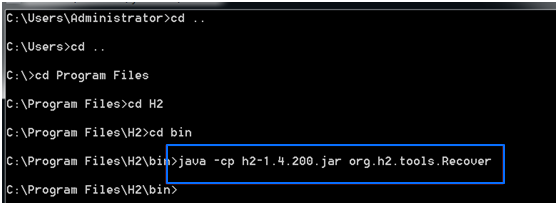

3. In the cmd window, run java -cp h2-1.4.200.jar org.h2.tools.Recover. odc2.0.h2.sql is generated in the path, as shown in the following figure.



Step 3: Execute the RECOVER SQL statement

1. Generate a new database named odc2.1. Here is the sample command:

   java -cp h2-1.4.200.jar org.h2.tools.RunScript -url jdbc:h2:./odc2.1 -user sa -password '' -script odc2.0.h2.sql


2. After the command is executed, the odc2.1.mv.db file is generated in the path.

Step 4: Copy the recovered database files to the ODC installation path

1. Copy the odc2.1.mv.db file to the path of the MetaDB files and rename it as odc2.0.mv.db.

2. Restart ODC.
