Deploy ODC

This topic takes OceanBase Admin Toolkit (OAT) V2.1.1 as an example. For other OAT versions, see User Guide of the corresponding version.

Prerequisites

The following operations are complete before you deploy ODC:

• Add and initialize an OCP server.

• Add the OCP configuration file.

• Upload the required installation package in the TAR format to the corresponding OceanBase Admin Toolkit (OAT) directory. For more information about how to upload the installation package, see Upload the installation packages.

Procedure

1. Log on to the OAT console as a super administrator or an O&M engineer.

2. In the left-side navigation pane, choose Service Deployment > Service Management.

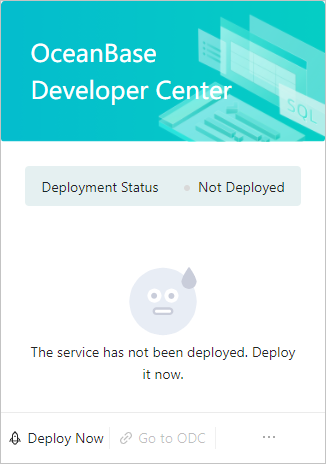

3. In the lower-left corner of the ODC section, click Deploy Now.



4. Select the previously configured ODC configuration file and click OK.

   Note

   If you have not prepared a configuration file, click Add Config Files in the Config Files list and configure a configuration file on the page that appears. Then, you can deploy ODC.

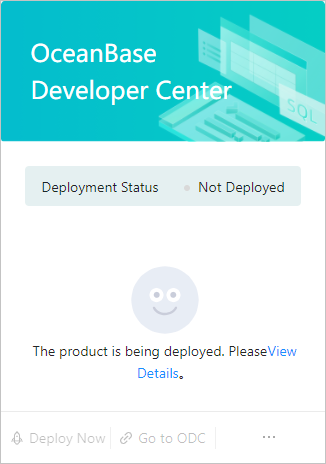

   After you click OK, the system prompts that the deployment is in progress and creates a deployment task. You can click View Details to view the status of the deployment task.
