Troubleshoot OBServer node restart failures

This topic describes how to troubleshoot OBServer node restart failures.

Applicable versions

The solution provided in this topic is applicable to all versions of OceanBase Database.

Troubleshooting logic

If an OBServer node does not work properly after a restart, analyze the failure from the following perspectives:

1. Check the changes made before the OBServer node is restarted.

   If parameter or environment changes were made before the restart, check whether the changes have caused the restart failure. If yes, roll back the changes when time consumption and rollback impact are acceptable. Then, reproduce the issue in the test environment and determine the root cause.

2. Check for other exceptions.

   In currently known scenarios, common causes of OBServer node restart failures include Network Time Protocol (NTP) out-of-synchronization, network exceptions, schema refresh exceptions, and heartbeat exceptions. To determine the root cause, perform the following steps.

Troubleshooting procedure

In case of an OBServer node restart failure, check whether the observer.log file contains an error message. If yes, check the error message for troubleshooting. For more information, see "Error codes" in Reference Guide (MySQL Mode) and "Error codes" in Reference Guide (Oracle Mode). If no, check the basic environment of the OBServer node.

View the observer.log file

When an OBServer restart failure occurs, the observer.log file records the failure logs. You can run the grep ERROR observer.log command to check the cause of the failure.

Generally, if an error message is generated during the restart, it indicates the direct cause of the restart failure. You can refer to the error message in the observer.log file and the scenarios described as follows for troubleshooting. The following figures show the logs generated when RootService is started properly.

Locate the failed node

Run the following command to locate the server where the leader of the __all_core_table table is located:

grep "1099511627777" election.log

In this example, the IP address and port number shown in the preceding figures are those of the failed node.

Check basic modules of the OBServer node

1. Check whether RootService is working properly.

   1. Query the __all_virtual_core_meta_table table. If an empty result set is returned, RootService is abnormal.

      obclient> SELECT * FROM __all_virtual_core_meta_table;


   2. Check whether RootService has entered the START_SERVICE state. Obtain a TRACE_ID value based on the ob_restart parameter. Show trace information in the observer.log and rootservice.log files to find where the error is located.

       grep "START_SERVICE" rootservice.log


2. Check whether the heartbeat status of the OBServer node is normal.

   Search for the renew_lease parameter in the observer.log file of the failed OBServer. If the parameter has a value, a heartbeat exception has occurred.

   [admin@hostname log]$ grep "renew_lease" observer.log


3. Check whether the schema refresh on the OBServer node is normal.

   Search for the REFRESH_SCHEMA parameter in the observer.log file of the failed OBServer node. If the parameter has a value, a schema refresh exception has occurred.

   [admin@hostname log]$ grep "REFRESH_SCHEMA" observer.log


4. Check whether clogs are replayed slowly.

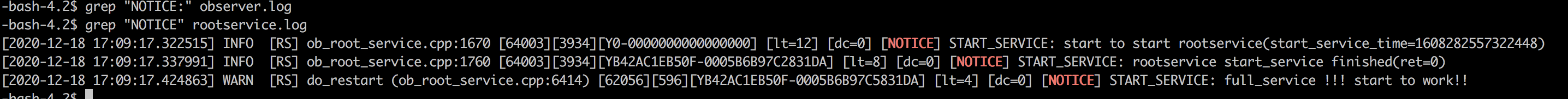

   Search for the NOTICE parameter in the observer.log file of the failed OBServer node. If the clog is behind, service starting need to wait message exists, the restart failure is caused by slow replay of clogs.

   [admin@hostname log]$ grep "NOTICE" observer.log


Check the basic environment of the OBServer node

The OBServer election module requires a one-way network latency between nodes to be within 50 ms, or in the worst cases, within 100 ms. In addition, the clock synchronization latency between hosts in a cluster must be within 100 ms. This is because clock out-of-synchronization or network jitters lead to restart failures or other serious system availability issues. In case of an OBServer restart failure, you must first check whether the basic environment of the OBServer node meets the requirements by performing the following operations:

• Run the chronyc sources -v or ntpq -p command to verify the clock.

• Check whether the current network facilities are normal. If no, remove the current host. For more information, see Replace an OBServer node.
