View backup tasks

This topic describes how to filter data backup tasks, log backup tasks, and cleanup tasks of regular backups by time, and how to start or stop a task.

You can view backup data by using the following methods:

• Method 1: Log in to the OceanBase Cloud Platform (OCP) console. In the left-side navigation pane, choose Backup & Recovery > Backup . You can view the backup task information on the Backup Tasks tab.

• Method 2: Log in to the OCP console and go to the Overview page of a cluster. In the left-side navigation pane, click Backup & Recovery . You can view the backup information of the cluster on the Backup Tasks tab.

• Method 3: Log in to the OCP console and go to the Overview page of a tenant. In the left-side navigation pane, click Backup & Recovery . You can view the backup information of the tenant on the Backup Tasks tab.

Prerequisites

On the Backup Tasks tab, the required permissions vary based on the operations to be performed.

• View task information

  • To view backup task information by using Method 1, make sure that you have the following permissions:

    • Resource Permissions : Cluster Read-only or Tenant Read-only permission
    • Menu Permissions : Permission on the Backup menu of Backup & Recovery

  • To view backup task information by using Method 2, make sure that you have the following permissions:

    • Resource Permissions : Cluster Read-only permission
    • Menu Permissions : Permission on the Backup & Recovery menu of Clusters

  • To view backup task information by using Method 3, make sure that you have the following permissions:

    • Resource Permissions : Cluster Read-only or Tenant Read-only permission
    • Menu Permissions : Permission on the Backup & Recovery menu of Tenants

• Stop or start a backup task

  • To stop or start a backup task by using Method 1, make sure that you have the following permissions:

    • Resource Permissions : Cluster Maintenance or Tenant Maintenance permission
    • Menu Permissions : Permission on the Backup menu of Backup & Recovery

  • To stop or start a backup task by using Method 2, make sure that you have the following permissions:

    • Resource Permissions : Cluster Maintenance permission
    • Menu Permissions : Permission on the Backup & Recovery menu of Clusters

  • To stop or start a backup task by using Method 3, make sure that you have the following permissions:

    • Resource Permissions : Cluster Maintenance or Tenant Maintenance permission
    • Menu Permissions : Permission on the Backup & Recovery menu of Tenants

Procedure

The procedure of Method 1 is described as follows:

1. Log in to the OCP console.

2. In the left-side navigation pane, choose Backup & Recovery > Backup . By default, the Backup Tasks tab appears.

3. View data backup tasks.

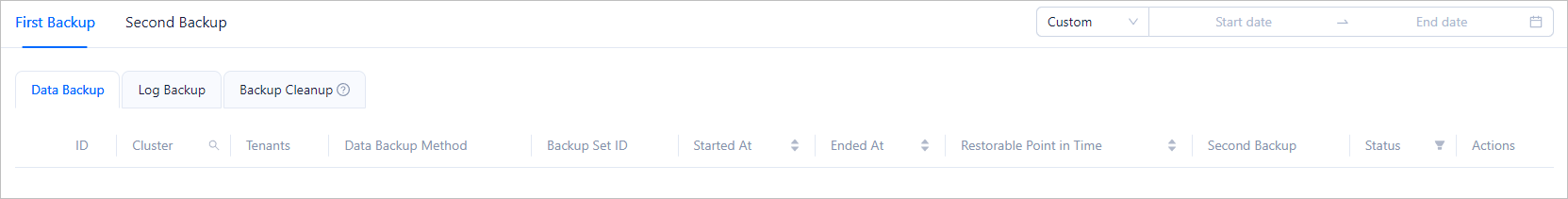

   On the Data Backup tab, you can view information about data backup tasks in the following columns: ID , Cluster , Tenant , Data Backup Method , Backup Set ID , Started At , Ended At , Restorable Time Point, Second Backup , Status , and Actions . You can also filter the data backup tasks by status. The following table describes more information.

   In the upper-right corner of the tab, you can select Last 1 Hour , Last 24 Hours , Last 7 Days , or Last 30 Days , or select Custom Time and specify a time range, to filter the data backup tasks.



   Parameter	Description
   ID	Click the plus sign (+) to view Backup Method , Data Version , and Storage Directory .
   Cluster	Click the cluster name in the Cluster column. The Overview page of the cluster appears. You can search for clusters.
   Tenant	Click the tenant name in the Tenant column. The Overview page of the tenant appears.
   Data Backup Method	Valid values: Full and Incremental.
   Backup Set ID	The ID of the full backup set. The ID is used to identify the relationship between the full data backups and incremental data backups in physical backup mode. A full backup matches an incremental backup with the same full backup set ID.
   Started At	The backup start time.
   Ended At	The backup end time.
   Restorable Time Point	The point in time to which the backup set can be restored.
   Second Backup	If the value is Yes , you can click Yes to view all second backup tasks for the data.
   Status	Valid values: Starting , Initializing , In Progress , Failed , and Completed . You can filter backup tasks by status. Note If the cluster is of OceanBase Database V2.2.77 or later but earlier than V4.0, you can view the task progress in percentage.
   Actions	If the data backup task fails, click View Cause in the Actions column.

4. View log backup tasks.

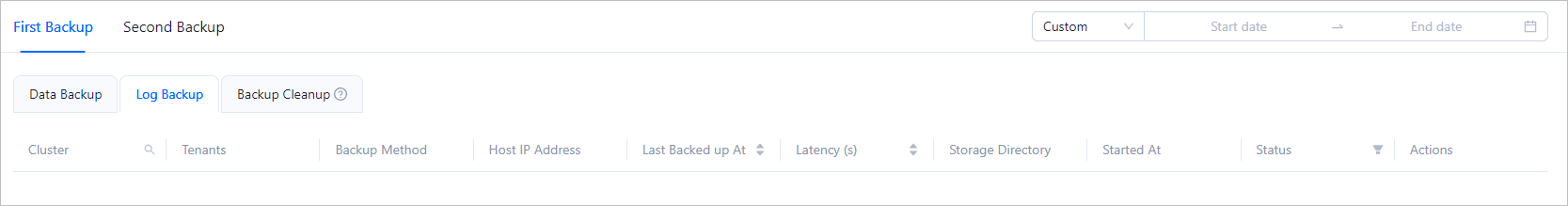

   On the Log Backup tab, you can view information about log backup tasks in the following columns: Cluster , Tenant , Backup Method , Host IP Address , Last Backed up At , Latency , Storage Directory , Started At , and Status . You can also perform operations in the Actions column and filter the log backup tasks by status. The following table describes more information.

   In the upper-right corner of the tab, you can select Last 1 Hour , Last 24 Hours , Last 7 Days , or Last 30 Days , or select Custom Time and specify a time range, to filter the log backup tasks.



   Parameter	Description
   Cluster	Click the cluster name in the Cluster column. The Overview page of the cluster appears. You can search for clusters.
   Tenant	The tenant whose logs are to be backed up.
   Backup Method	The backup mode of the cluster. Valid values: Logical Backup and Physical Backup .
   Host IP Address	The IP address of the host.
   Last Backed up At	The point in time of the latest log backup.
   Latency (s)	The time difference between the backup data and the real-time data, in seconds.
   Storage Directory	The directory where backup files are stored.
   Started At	The backup start time.
   Status	Valid values: Starting , In Progress , Stopping , Stopped , Failed , and Interrupted . You can filter backup tasks by status.
   Actions	For a cluster in Starting or In Progress state, this column provides the Stop option. For a cluster in Stopped state, this column provides the Start option. Note If a backup strategy has been enabled when you attempt to stop log backup, you can disable the backup strategy to disable log backup. If you retain the current backup strategy or manually initiate data backup, log backup will be enabled by default.

5. View backup cleanup tasks.

   Note

   You can clean up only logical backups. Logical backup is supported in OceanBase Database of a version earlier than V2.2.60.

   On the Backup Cleanup tab, you can view information about backup cleanup tasks in the following columns: ID , Cluster , Started At , Ended At , and Status . You can also filter the backup cleanup tasks by status. A backup cleanup task can be in any of the following states: Pending , Executing , Failed , and Completed .

   In the upper-right corner of the tab, you can select Last 1 Hour , Last 24 Hours , Last 7 Days , or Last 30 Days , or select Custom Time and specify a time range, to filter the cleanup tasks by time.
