View parameters

On the Parameters page, you can view the name, category, value type, value range, default value, current value, and description of each parameter of the cluster, and check whether the parameter is read-only and whether a restart is required for a parameter setting to take effect.

Prerequisites

Make sure that you have the following permissions:

• Resource Permissions : Cluster Read-only permission
• Menu Permissions : Permission on the Compaction Management menu of Clusters

Procedure

1. Log on to the OceanBase Cloud Platform (OCP) console.

   The Cluster Overview page automatically appears.

2. In the Clusters list, find the target cluster and click its name.

3. In the left-side navigation pane of the page that appears, click Parameter Management .

   The Parameters page automatically appears. You can also click the Parameters tab to go to this page.

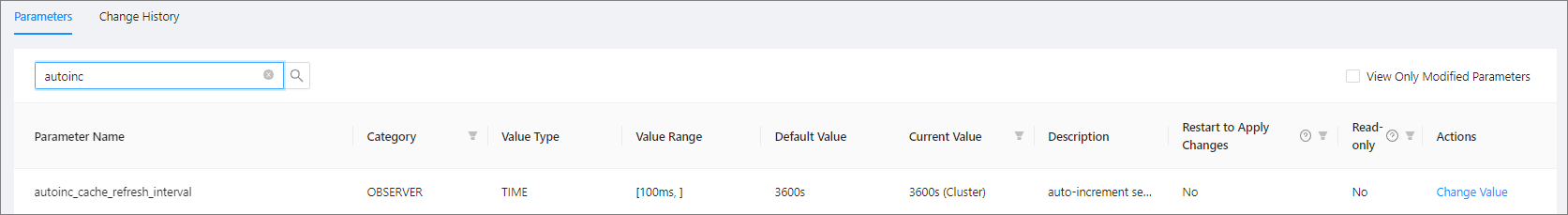

   You can view all parameters of the current cluster on the Parameters page. Click View Only Modified Parameters , you can view the modified parameter list in OCP.



   Note

   • In the Current Value column, a value followed by (Cluster) takes effect at the cluster level. As shown in the preceding figure, the current value of autoinc_cache_refresh_interval is 3600s (Cluster) , which indicates that the value 3600s takes effect at the cluster level.
   • In the Current Value column, a value followed by (Custom) does not take effect at the cluster level. For example, 2d;1d (Custom) indicates that the value 2d applies to a specific zone and the value 1d applies to a specific OBServer. You can click each value to view the object to which it applies.
