Move out a cluster

This topic describes how to move out an OceanBase cluster from one OceanBase Cloud Platform (OCP) cluster to another.

Prerequisites

• Make sure that you have the following permissions:

  • Resource Permissions : Cluster Management permission
  • Menu Permissions : Permission on the Overview menu of Clusters

• The OceanBase cluster to be moved out is in the STOPPED, RUNNING, or UNAVAILABLE state.

• Move out the OceanBase cluster in off-peak hours.

• When you move out an OceanBase cluster, you must first move out the standby cluster.

  • In a single-OCP scenario, you must move out the standby OceanBase cluster before the primary OceanBase cluster.

  • In a multi-OCP scenario, you must first move out the standby OceanBase cluster from its OCP cluster and then move out the primary OceanBase cluster from its OCP cluster.

• If an OceanBase cluster and an OBProxy cluster share the same host in a move-out or takeover scenario, perform the following operations in sequence. For more information, see Migrate a cluster between IDCs in OCP.

  1. Move out the OBProxy cluster.
  2. Move out the OceanBase cluster.
  3. Take over the OceanBase cluster.
  4. Take over the OBProxy cluster.

• If other services are deployed on the host where the OceanBase cluster is deployed, you cannot delete this host from OCP when you move out the OceanBase cluster.

Procedure

1. Log in to the OCP console.

2. In the left-side navigation pane, click Clusters . The Clusters page automatically appears.

3. On the Clusters page, find the target cluster and click its name.

4. On the Overview page of the cluster, click the ... icon in the upper-right corner and select Migrate Cluster .

5. In the dialog box that appears, perform the following operations:

   1. Export credentials: Enter the credential file encryption key and click Export Credential . Then, click Next .

      We recommend that you export the credentials so that you can directly import them after taking over the OceanBase cluster. After you click Export Credential , the system will export the credentials of the cluster to be moved out. After the OceanBase cluster is taken over to the new OCP cluster, you can import its credentials in batches for future use. For more information, see Import a credential.

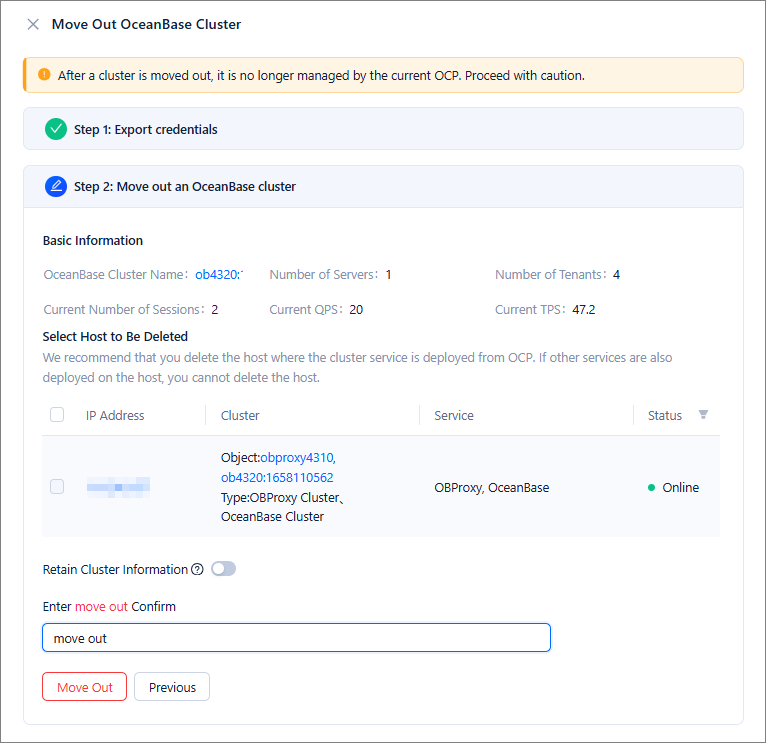

   2. Move out the OceanBase cluster:

      1. Select the host where the OceanBase cluster is deployed, and delete it from the original OCP cluster before you take over the OceanBase cluster to the new OCP cluster. You can also delete the host on the Hosts page. For more information, see Delete a host.

         Notice

         If no other services are deployed on the host, we recommend that you delete the host. If you choose to retain the host and deploy other clusters on this host, adverse effects can be caused on the original cluster. Exercise caution when you choose to retain the host, and understand the risks in advance.

      2. Specify whether to retain information about the OceanBase cluster to be moved out. If you enable Retain Cluster Information , information about the OceanBase cluster is retained in the original OCP cluster for the config server. This way, business applications can still connect to the OceanBase cluster by using OBProxy.

      3. Enter move out in the textbox and click Move Out to submit a task to move out the OceanBase cluster.



6. In the dialog box that appears, click View Task to view the progress.

   If the task status is Completed , and the status of this OceanBase cluster on the Clusters page is Moved Out , the cluster is successfully moved out.

7. On the Clusters page, delete the cluster.
