View second backup tasks

You can specify a time range to view second data backup tasks and second log backup tasks, and start or stop a task.

Prerequisites

Make sure that you have the following permissions:

• Resource Permissions : Cluster Read-only or Tenant Read-only permission
• Menu Permissions : Permission on the Backup menu of Backup & Recovery

Procedure

1. Log on to the OceanBase Cloud Platform (OCP) console.

2. In the left-side navigation pane, choose Backup & Recovery > Backup .

3. Click Second Backup , view second data backup tasks.

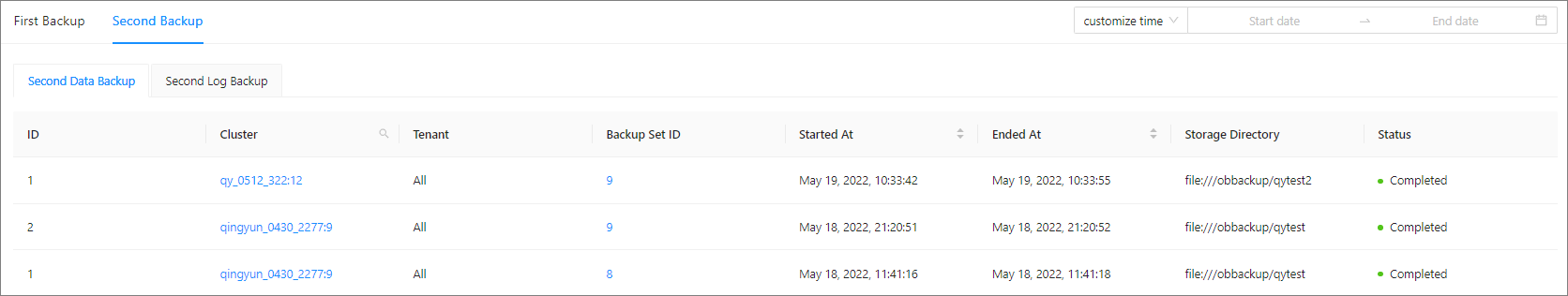

   The table on the Second Data Backup tab contains the following columns: ID, Cluster, Tenant, Backup Set ID, Start Time, End Time , Storage Directory , and Status . You can filter the second backup tasks by status.

   • Cluster column: Click a cluster name in this column to go to the Overview page of the cluster. You can search for clusters.

   • Backup Set ID column: Click an ID in this column to view all data backup tasks for the backup set.

   In the upper-right corner of the tab, you can select Last 24 Hours, Last 7 Days, or Last 30 Days, or select Custom Time and specify a time range, to filter second data backup tasks by time.



4. View second log backup tasks.

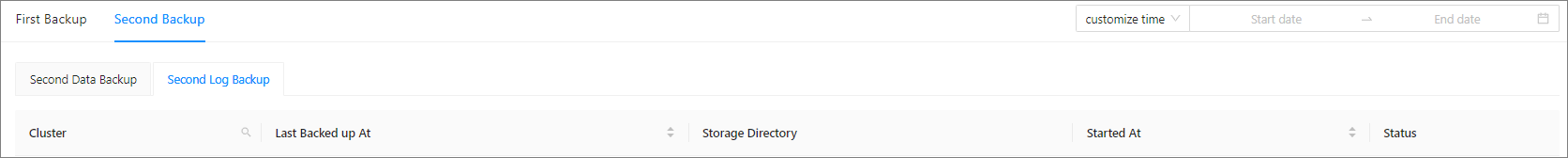

   The table on the Log Backup tab contains the following columns: Cluster, Latest Backup Time, Storage Directory , Start Time , and Status .

   In the upper-right corner of the tab, you can select Last 24 Hours, Last 7 Days, or Last 30 Days, or select Custom Time and specify a time range, to filter second log backup tasks by time.
