The standalone centralized mode is a streamlined database architecture of OceanBase Database. Compared with a distributed cluster, a standalone centralized database requires only one host and is easy to deploy and ready to use. However, without multiple replicas and scaling capabilities, a standalone centralized database is only suitable for development, testing, and business systems that do not require high data security.
This topic describes how to create a standalone centralized database.
Background information
A standalone centralized database does not support multiple replicas or scaling. Such a database applies only to a development or test environment or a business system without high data security requirements.
Prerequisites
You have logged on to the OceanBase Cloud Platform (OCP) console with an account that has the permission to create clusters.
Only OceanBase V4.1.0 and later support this deployment mode.
Procedure
Log on to the OCP console, and find the entry to cluster creation based on the actual business scenario.
If you do not have a manageable cluster, the system displays a message on the Clusters page, prompting you to create one. Click Create Cluster in the prompt.
If you already have a manageable cluster, go to the Clusters page, and then click Create Cluster in the upper-right corner.
In the Create Cluster dialog box, select Standalone Centralized.

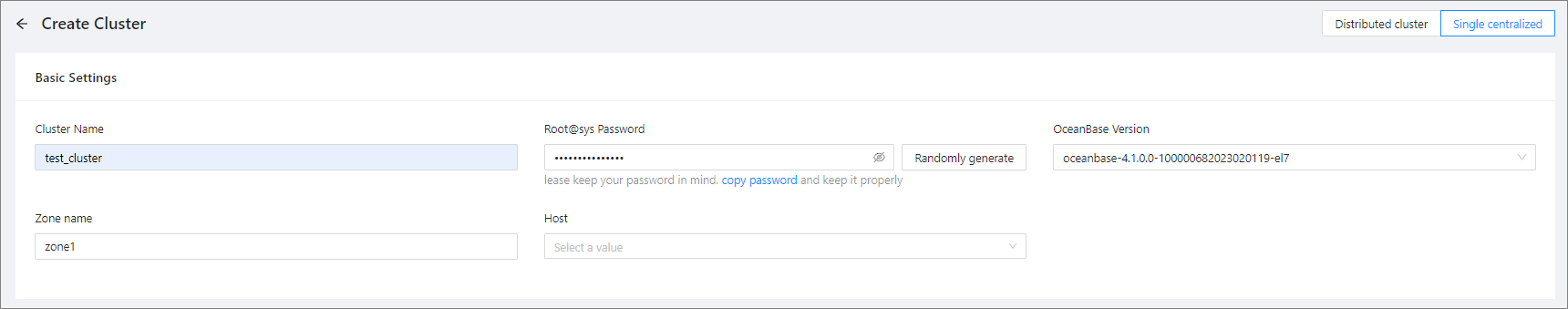

Set the basic information of the cluster.
The following table describes the fields in the Basic Settings section.
Field Description Cluster Name The name of the cluster to be created. The cluster name must be 2 to 48 characters in length and can contain uppercase and lowercase letters, digits, and underscores (_). The cluster name must start with letters. root@sys Password This password can be customized or randomly generated. The password must meet the following complexity conditions: - The length is 8 to 32 characters.
- The password contains at least three of the following character types: digits(0~9), uppercase letters(A~Z), lowercase letters(a~z), and special characters (ie:
~!@#%^&*_-+=|(){}[]:;,.?/).
OceanBase Version You can select an OceanBase Database version from the drop-down list or click Add Version at the bottom of the list to upload an OceanBase Database version. Zone Name You can retain the default name or define a custom name. A zone name must consist of 2 to 48 characters, including uppercase and lowercase letters, digits, and underscores (_), and start with a letter. Host Select a host that has the same architecture as that of the selected OceanBase Database version. The selected host runs both the observer and rootserver processes. If no host is available in the drop-down list, you can click Add Host in the drop-down list to add a host.
Enable Parameter Settings and configure related cluster parameters.
You can add startup parameters one by one and set values as shown in section ① of the following figure.
You can also click Select Parameter Template as shown in section ② of the following figure and select a parameter template. The system will automatically populate parameters in this section by using the template.
Note
- If you use OceanBase Database V2.2.77, we recommend that you use the built-in 2.2.77 Version Parameter Template. This template contains general parameters of OceanBase Database V2.2.77. You can configure a cluster based on this template.
- If no cluster parameter template is available, you can click Create Cluster Template to create one. For more information, see Manage cluster parameter templates
Enable Custom Settings to configure paths and ports.
Configure the paths:
- In the Path Settings section, specify the Software Installation Path, Data Disk Path, and Log Disk Path as needed.
- Click Test to check whether the paths can be used. If a path cannot be used, you can perform troubleshooting based on the test results, or use another path.
Configure the ports:
- In the Port Settings section, specify SQL Port and RPC Port as needed.
- Click Test to check whether the ports are occupied. If a port is occupied, you must use another port.
After the test succeeds, click Submit.
Confirm the information in the right-side panel, and click OK.
In the Note dialog box, specify whether to create a user tenant.
If you do not need to create a tenant, click Skip. In this case, only the cluster is created. For more information about how to create a user tenant, see Create a tenant.
If you need to create a tenant, set the tenant mode and tenant name. After the configuration is complete, click Create and Submit. You can choose System Management > Tasks to view the progress of the task.
The following table describes the parameters.
Parameter Description Tenant Mode The mode of the tenant. Default value: MySQL. Tenant Name The name of the tenant, which is the same as the tenant mode by default. You can use a custom name instead.
