Take over a cluster

You can perform this operation to take over an OceanBase cluster created in a command-line tool or another OceanBase Cloud Platform (OCP) cluster and maintain and manage the OceanBase cluster in the current OCP cluster.

Prerequisites

• The logon user who takes over the OceanBase cluster has the Cluster Manager role, or the permission to create a cluster.

• All OBServer nodes in the OceanBase cluster to be taken over are running normally.

• Always take over the primary OceanBase cluster first:

  • In a single-OCP scenario, the primary OceanBase cluster is taken over before the standby OceanBase cluster.

  • In a multi-OCP scenario, the primary OceanBase cluster is taken over in any OCP before the standby OceanBase cluster is taken over in any OCP.

  Notice

  After an OceanBase cluster is taken over, it cannot be maintained and monitored in the original OCP cluster. We recommend that you evaluate the risk before taking any action.

Procedure

1. In the left-side navigation pane, click Clusters to go to the Clusters page.

2. On the page that appears, click Take over Cluster in the upper-right corner.

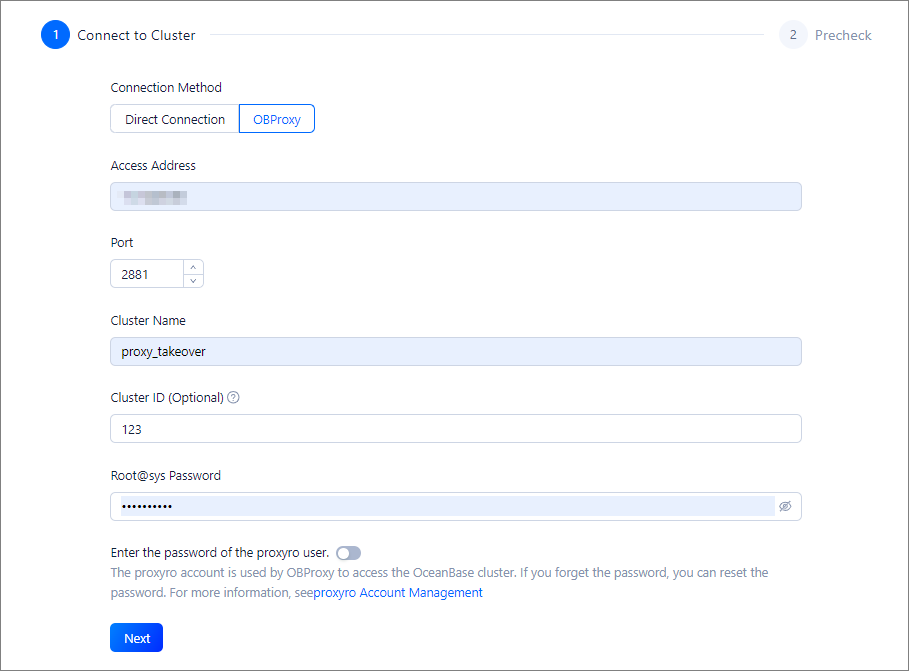

3. Connect to the cluster.

   The following two connection modes are supported:

   1. Direct Connect: Specify Access URL, Port, and root@sys Password of the cluster, and enter the password of the proxyro user as needed. Then, click Next.

      Note

      The password of the proxyro account is used by OBProxy to access an OceanBase cluster. You can enter the password here to ensure consistency. For more information about the proxyro account, see Manage the proxyro account.



   2. OBProxy: Specify Access URL, Port, Cluster Name, Cluster ID (Optional), and root@sys Password of the cluster, and enter the password of the proxyro user as needed, which is used by OBProxy to access the OceanBase cluster. Then, click Next.

      Note

      • When you are taking over a standby cluster, you must specify the cluster ID. If you need to take over both the primary and standby clusters, take over the primary cluster first.
      • The password of the proxyro account is used by OBProxy to access an OceanBase cluster. You can enter the password here to ensure consistency. For more information about the proxyro account, see Manage the proxyro account.

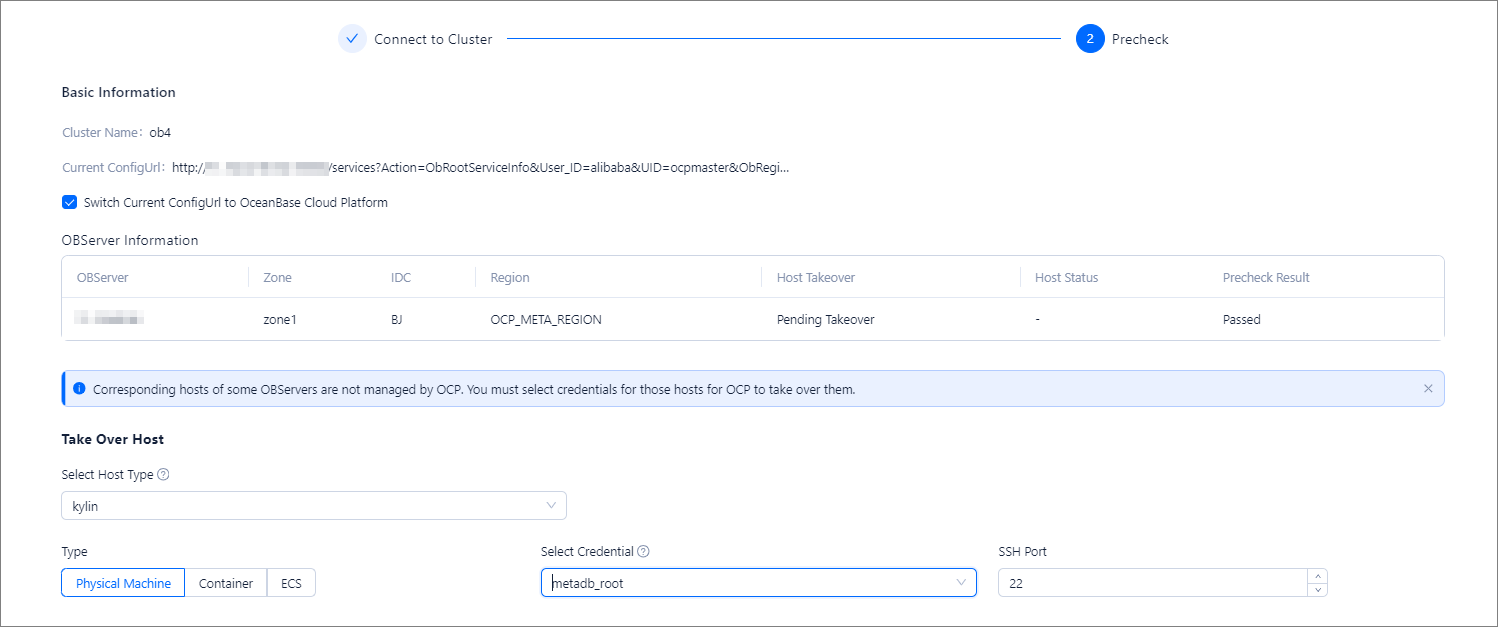

4. After the cluster is connected, perform pre-takeover check.

   • If the check succeeds and the hosts corresponding to some OBServer nodes are not managed by the OCP cluster and need to be taken over, you must select the credentials of these hosts for unified management in the OCP cluster.

   • If the check fails, hover the pointer over the icon next to Failed, modify the OBServer configuration as prompted, and then click Recheck.



5. Click Submit.

   After the task is submitted, you can view the task execution progress on the current page or return to the overview page of the cluster.

   Note

   When OCP connects to a database, the credential string of the database must exist in credential management. After you take over a cluster to an OCP cluster, you can import the file of cluster credentials exported in the migrate a cluster step to the OCP cluster. This way, you can upload cluster credentials in batches. For more information, see Import a credential.
