Delete an OBProxy cluster

This topic describes how to delete an OceanBase Proxy (OBProxy) cluster. After an OBProxy cluster is deleted, the OBProxies in the cluster are uninstalled from each host, and the resources occupied by the OBProxies on each host are released. Settings of the OBProxy cluster and related OceanBase Load Balancer (OBLB) are also deleted.

Prerequisites

• Make sure that you have the following permissions:

  • Resource Permissions : OBProxy Management permission
  • Menu Permissions : Permission on the Overview menu of OBProxy

• Make sure that the current OBProxy cluster no longer provides the reverse proxy service.

  The Connectable OceanBase Clusters list of the OBProxy cluster is empty, or the listed OceanBase clusters are deprecated.

Procedure

You can delete an OBProxy cluster by using the following two methods:

• Method 1: Go to the OBProxy page, find the OBProxy cluster that you want to delete, and choose More > Delete in the Actions column.

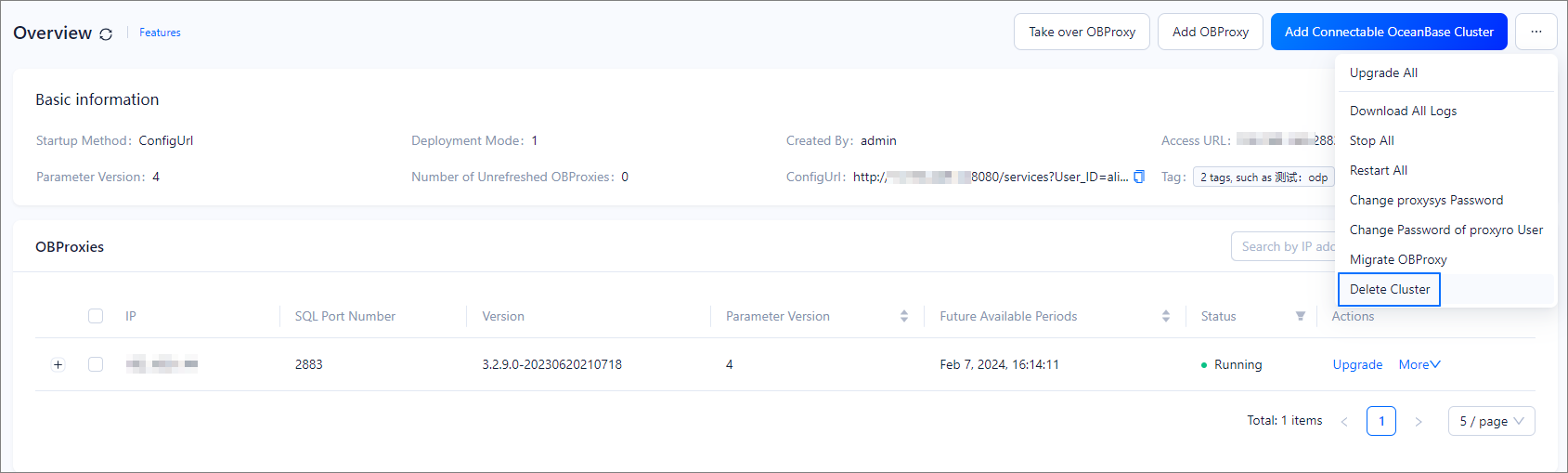

• Method 2: Go to the Overview page of the OBProxy cluster that you want to delete, move the pointer over the More icon, and click Delete Cluster .

The following procedure takes Method 2 as an example.

1. Log on to the OCP console.

2. In the left-side navigation pane, click OBProxy.

3. In the Clusters list, click the target OBProxy cluster to go to its Overview page.

4. Move the pointer over the More icon and click Delete Cluster .



5. In the dialog box that appears, click Delete .

6. In the dialog box that appears, click View Task to view the progress.

   When the task enters the Completed state, and the deleted OBProxy cluster does not exist in the Clusters list on the OBProxy page, the cluster is successfully deleted.
