Manage unit specifications

You can create, modify, and delete unit specifications on the page that appears after you click Unit Specification Management in the upper-right corner of the Tenants page in the OceanBase Cloud Platform (OCP) console.

Prerequisites

Make sure that you have the following permissions:

• Resource Permissions : Cluster Maintenance or Tenant Maintenance permission
• Menu Permissions : Permission on the Overview menu of Tenants

Procedure

1. Log on to the OCP console.

2. In the left-side navigation pane, select Tenants . The Tenants tab automatically appears.

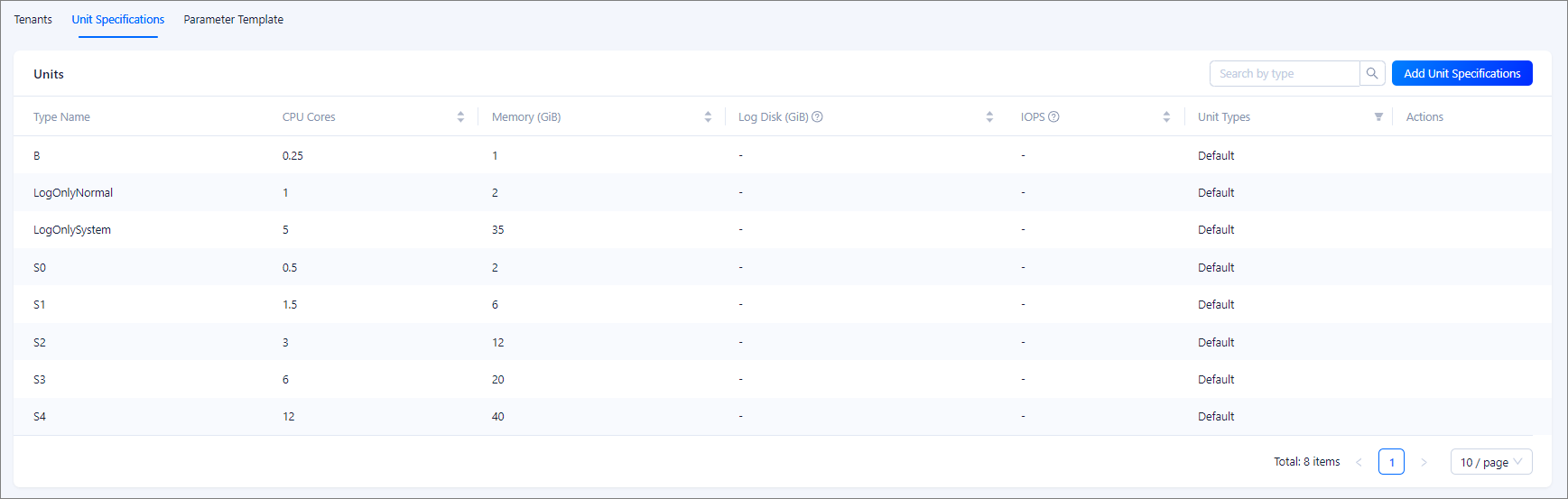

3. Click the Unit Specifications tab to view the unit specification list.

   In the ** Units **list, you can view information about all units in the following columns: Type Name , CPU Cores , Memory (GiB) , Log Disk (GiB) , IOPS, Unit Types , and Actions .

   • You can sort unit specifications by CPU Cores , Memory (GiB) , Log Disk (GiB) , or IOPS.

   • You can also filter unit specifications by type, which can be Default or Custom .

   • In the Actions column, you can click Edit or Delete to manage unit specifications.

   Note

   If the cluster version of a tenant is earlier than OceanBase Database V4.0, you cannot view or modify the Log Disk (GiB) or IOPS columns.

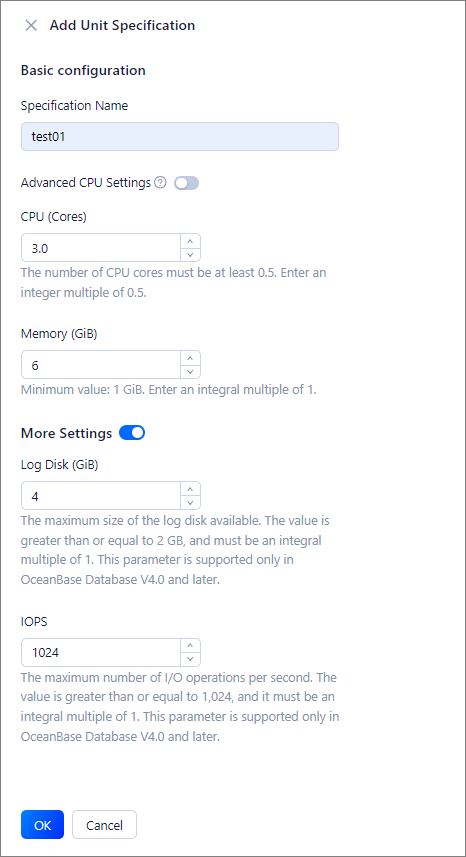

4. Click Add Unit Specifications , and specify Specification Name, CPU (Cores) and Memory (GiB) .

   The following table describes the parameters.

   Parameter	Description
   Specification Name	The name of the unit specification to be added.
   CPU	The number of CPU cores for the unit specification. The minimum value is 0.5. You must enter an integral multiple of 0.5. If the cluster version is OceanBase Database V4.0 or later, you can enable Advanced CPU Settings and configure CPU overprovisioning. Specifically, you can configure the minimum and maximum numbers of CPU cores for the unit specification. Note If the cluster version is OceanBase Database V4.0 or later, you must select at least 1 CPU core.
   Memory	The memory for the unit specification, in GiB. The minimum value is 1 GiB. You must enter an integer.
   More Settings (Optional)	You can enable this parameter and configure Log Disk (GiB) and IOPS. Note If the cluster version is earlier than OceanBase Database V4.0, you cannot configure Log Disk (GiB) or IOPS.
