This topic describes how to block an alert.
Background information
On the Alert Events tab, you can quickly block an alert item with an alert event. For more information, see View an alert event. This topic describes how to create a blocking condition. It is a more flexible method that allows you to block unwanted alerts in advance.
After a blocking condition is created, the system starts to block alerts based on the condition. The blocking condition takes effect in 30s.
Procedure
Log on to the OceanBase Cloud Platform (OCP) console.
In the left-side navigation pane, choose Alert Center.
Click the Alert Blocking tab.
On the Alert Blocking tab, click Create Blocking Condition.

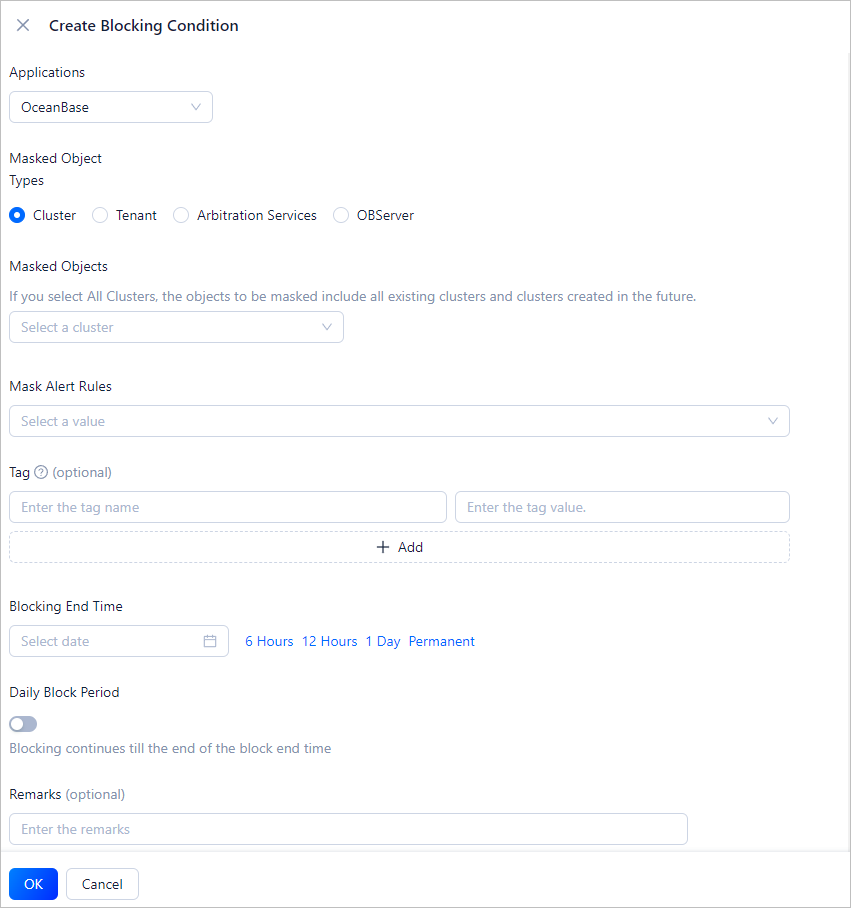

Configure the blocking condition in the Create Blocking Condition dialog box.
Field Configuration description Application The alert source. Options include OceanBase, OBProxy, OCP, OMS, and Logs. Masked Object Types The blocking scope. Valid values: All, Tenant, and Server. The options vary with the setting of Application. Blocking Object The alert objects that use the alert rule. You can select specific alert objects as needed.
If you select All, you can select Excluded Objects on the right to exclude objects that do not need to be blocked.Mask Alert Rules Select one or more alert items to be blocked. Tag Specify one or more tags to block alerts for specific metrics, for example, slow SQL alerts. You can filter SQL statements by their IDs. You can add up to eight tags. Blocking End Time Specify the end time for the blocking condition. The blocked alerts will not be reported before the end time expires. This field is required. - Click the End Time field to select the end time.
- You can also click a time next to the End Time field. For example, if you click 6 Hours, the system enters the time six hours later from the current time to the End Time field.
Daily Block Period You can toggle on the Daily Block Period switch, and specify the start time and end time. The system blocks alerts during the specified period every day. Remarks Additional information about the blocking condition that helps you understand and reuse the blocking condition. If you want to block a specific alert, you can add a tag to exactly match the alert. The following example shows how to block a slow SQL alert for the meta2 tenant in the adminMT cluster.
(Optional) Add a tag named ob_cluster and set the tag value to the cluster name adminMT.
(Optional) Add a tag named ob_cluster_id and set the tag value to the cluster ID 15. The cluster ID is used to distinguish between primary and standby clusters.
(Optional) Add a tag named tenant_name and set the tag value to the tenant name meta2.
Add a tag named sql_id and set the tag value to the ID of the slow SQL statement.
Note
The system blocks an alert only when the alert matches all the tags. The optional configurations are intended to help you better understand and use tags. You can ignore these configurations in practice.
Click OK.
The system returns to the Blocking Conditions list, which contains the newly created condition.
By default, all alert blocking conditions are displayed in the masking list. You can filter blocking conditions by choosing In Effect or Expired. By default, the alert blocking conditions created by the logged-on user are displayed.
Note
After an alert blocking condition is created, it takes effect within 30s.
