Overview
On the Database Management page of OceanBase Developer Center (ODC), click Workspace in the top navigation bar and click SQL Window in the drop-down menu that appears.

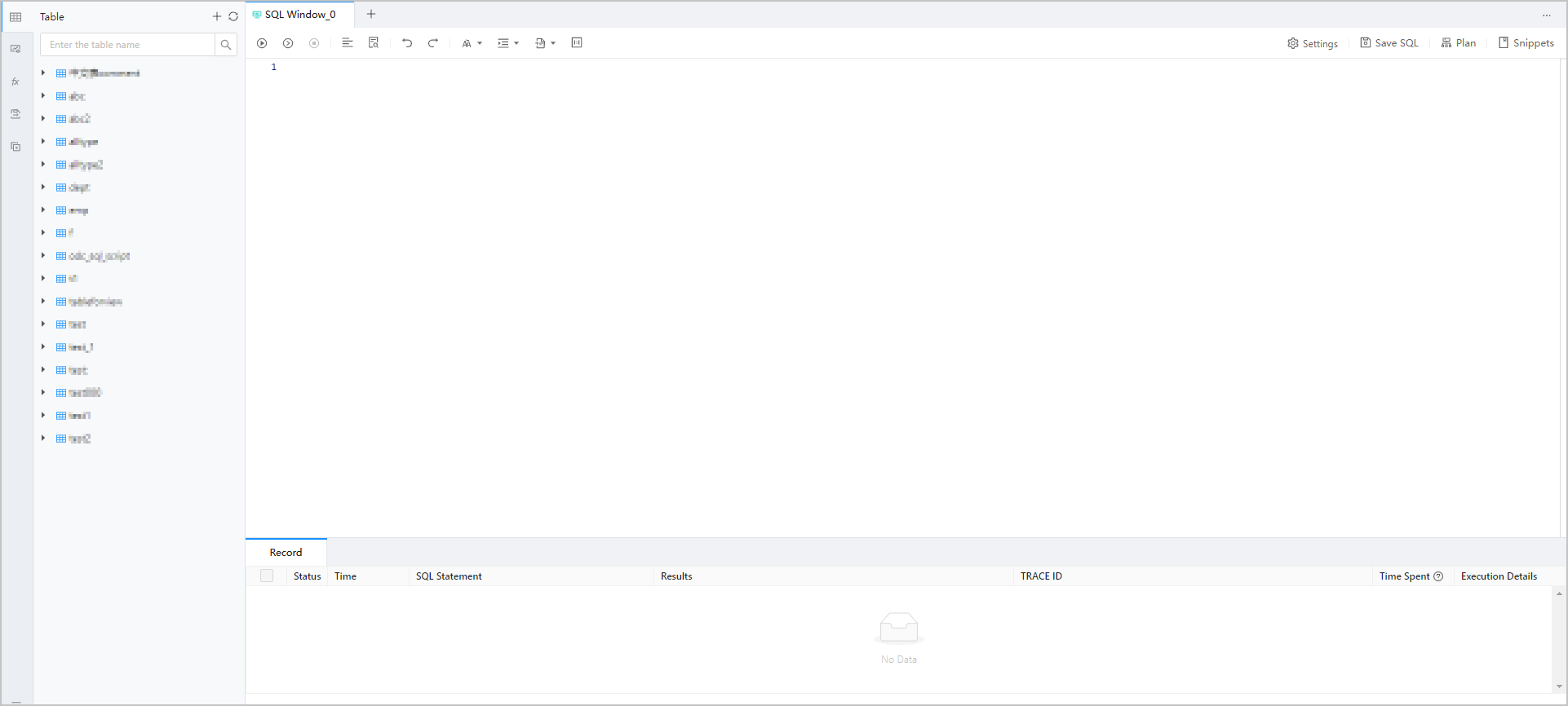

The SQL window provides an SQL editing area for editing scripts, an execution record tab, and a result tab for displaying the execution results. The SQL window also supports executing PL/SQL statements.
SQL editing area
The SQL editing area provides many features for you.
| Feature | Description |
|---|---|
| Auto-complete | The SQL editing area provides the auto-complete feature to improve your SQL statement editing efficiency. For example, when you edit SQL statements, the table name is auto-completed for cross-database queries. |
| Intelligent identification of keywords and code | Database keywords are highlighted in different colors, and PL/SQL statements are identified. |
Right-click of object names in the SELECT statement |
When you right-click the name of a table, view, or function in a SELECT statement, some common operations are displayed. When you place the pointer over the name of a table, the field information is displayed. |
| Object drag-and-drop | You can directly drag objects from the object list into an SQL statement in the SQL editing area to fill in an object name in a statement. |
| Identification of special symbols | Special symbol abnormality can be identified in the editing area of the SQL window. The abnormal symbols are marked with yellow wavy underlines. |
Note
- In ODC, connections to the same database share the same session. The auto-commit feature of ODC in Oracle mode is enabled by default. If you want to manually commit transactions, you can modify the value of the autocommit variable on the Session Properties page. For more information, see Session management.
- In manual-commit mode, make sure to set
ob_trx_idle_timeoutto a value greater than the timeout value of SQL queries. Otherwise, if two SQL statements in one transaction are executed at an interval longer than the value ofob_trx_idle_timeout, the connection will be terminated. However, if theob_trx_idle_timeoutparameter is set to an excessively large value, the session cannot be released in time, resulting in unnecessary memory consumption. Therefore, you must set this parameter to a proper value.
In addition to the preceding features, the toolbar of the editing area provides the following buttons.
| Button | Description |
|---|---|
| Run | Click this button to execute all the SQL statements in the current window. This button is disabled if an SQL statement is being executed in another window of the same session. |
| Run Current Statement | Click this button to execute all the selected SQL statements or the SQL statement in the line where the pointer is located. This button is disabled if an SQL statement is being executed in another window of the same session. |
| Commit | Auto-commit is turned off by default in Oracle mode, so you need to click this button to commit the current transaction. After you click this button, a dialog box appears, indicating that the current connection uses a shared session and the commit will apply to all windows. Click Yes to commit the transaction. In MySQL mode, auto commit is turned on by default, so this button is not displayed. This button is disabled if an SQL statement is being executed in another window of the same session. |
| Abort | Click this button to abort the statement that is being executed. |
| Format | Click this button to apply the formatting, such as indentation, line break, and keyword highlighting, to the selected SQL statements or all the SQL statements in the current SQL window. |
| Find and Replace | You can enter text in the search field to find the specific content and enter text in the replacement field to replace the content found. |
| Undo | Click this button to undo the last operation. |
| Redo | Click this button to reverse an Undo operation. |
| Case Sensitivity | The system supports three capitalization options: All Caps, All Lowercase, and Capitalize First Letter. Click the corresponding option to convert the selected statements in the script to the desired capitalization format. |
| Indent | You can add indents to or delete indents from the statements that you selected. |
| You can click Add Comments to convert the statements that you select into comments or click Delete Comment to convert comments to SQL statements. | |
| IN Value Conversion | Click this button to convert the copied rows or columns into the specified format during queries. After you paste the copied data to the SQL editing area, select the copied data and click IN Value Conversion to convert it into the in('A','B') format.
|
| Setting |
|
| Save | Click this button to save the script in the current window. You can open a saved script when you enter the workspace again. You can view only the SQL scripts saved by yourself. The script names must be unique. After you open a saved script, you can continue to edit it. |
| Execution Plan | Click this button to view the execution plan for the SQL statement that you select or on which the pointer is located. This execution plan is estimated by the system before execution and is the result of the EXPLAINPLAN operation. Therefore, the execution data displayed may differ from the actual execution data. You can use this feature to evaluate SQL statements. Click Execution Plan . In the Plan Details tab, click View Formatting Info to go to the format page. |
| Snippet | Click this button to view and reference built-in and custom code snippets. For more information, see Snippet. |
Execute a PL statement
You can edit a PL/SQL statement in the SQL window. Note that you must end the PL/SQL statement with the specified delimiter.
At present, you can use the following methods to specify a delimiter in ODC:
Click Settings in the toolbar of the SQL editing area. In the window that appears, select the required delimiter in the Delimiter field.
On the Personal Settings page, select a required delimiter in Delimiter Settings .
Notice
- In ODC V2.4.1 and later, you can use the
DELIMITERstatement in the editing area to define a delimiter. In Settings, the Delimiter field displays the delimiter that you specified. - You can directly use forward slashes (/) to separate PL/SQL statements. However, if a PL/SQL statement contains any forward slashes, you still need to set a custom delimiter.
- In ODC V2.4.1 and later, you can use the

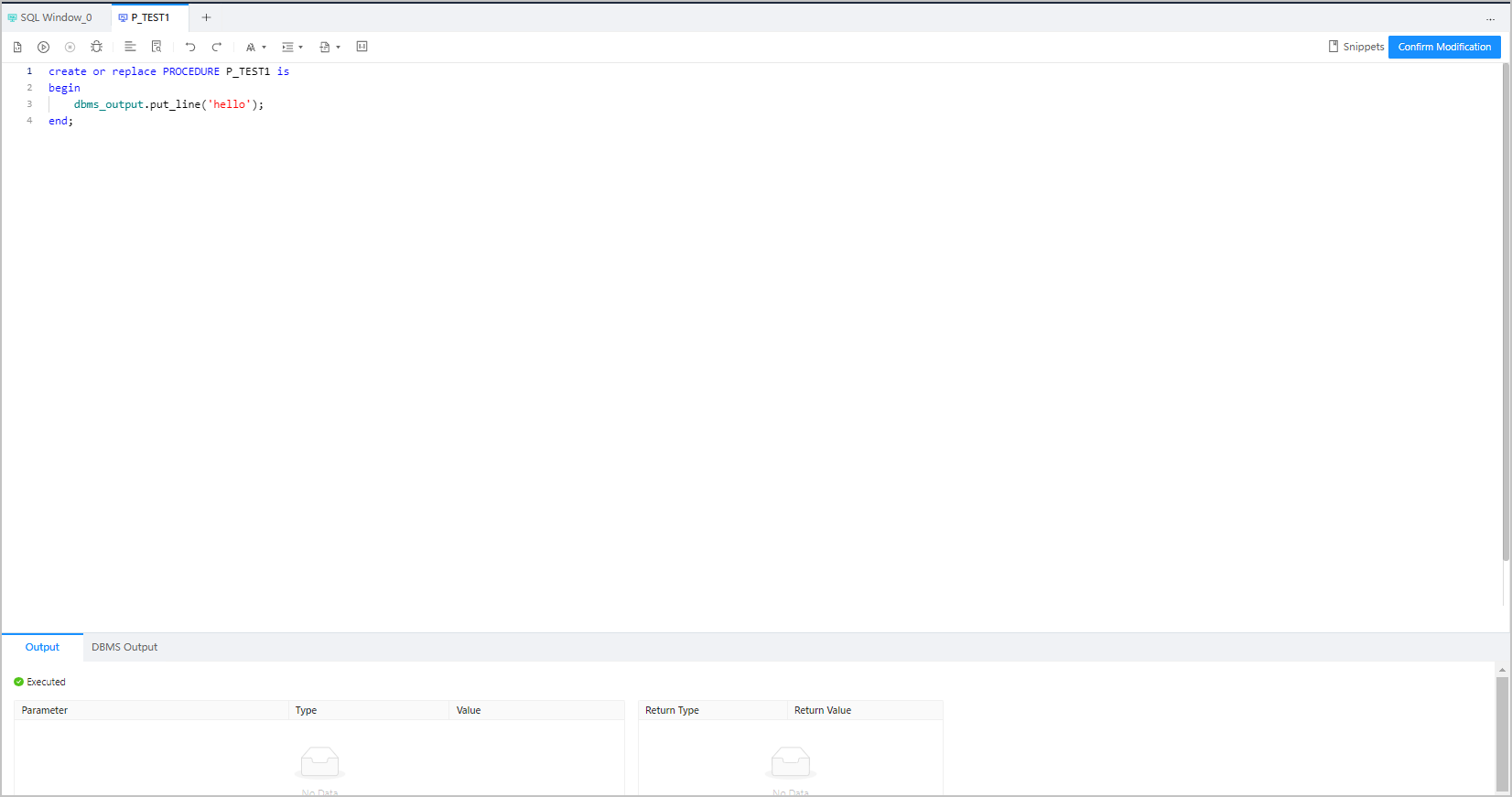

After you execute the PL/SQL statement in the SQL window, the result tab displays the database management system (DBMS) output.
Execution Record tab
In the Execution Record tab, you can view the history of SQL statements executed in the current connection. It includes Status , Time , SQL Statement , Results , TRACE ID , Time Spent , and Execution Details . Execution Details is the execution plan.
| Column | Description |
|---|---|
| Check box | You can select the check box  in front of the record list and click Delete in the upper-right corner of the list to delete multiple execution records at a time. |
| TRACE ID | The ID of the execution record.
Notice |
| Time Spent | Time Spent of an SQL statement in ODC is divided into the following three parts: * Network time spent: the time consumed to transmit the SQL statement over the network. * ODC time spent: the time consumed to process the SQL statement by ODC. * Database time spent: the time consumed to process the SQL statement by the database. You can move the pointer over the icon after Time Spent . The time spent on executing an SQL statement is displayed in three sections in the tooltip. |
| Execution Details | The text of the execution plan is displayed by default. Click View in the Execution Details column to go to the execution details page. On this page, you can view the basic information, time spent, I/O statistics, and executed SQL statements. |
Logs tab
You can view the execution records of the current SQL window in the Logs tab.
Results tab
You can view the execution result of the current SQL statement in the Results tab. The result set in the Results tab can be used in the following interactive operations to facilitate daily development work.
| Operation | Description |
|---|---|
| Select required data | You can select the required data of a result set and copy the data to an external file using hotkeys. You can also click a field name or row number to select an entire row or column. You can also click Export in the toolbar to export data of a result set to a local file. |
| Select rows and columns |
|
| Right-click a cell | You can right-click a cell and select Copy Row , Copy , or Export to Clipboard to directly export the data into an external file. |
| Right-click a row ID | You can right-click a row ID and select Copy Row , Freeze this row , or Unlock all frozen rows .
|
| Zoom in | If the data in a cell is too long to be displayed in full, you can perform the following operations to view the data in full: 1. Place the pointer over the cell. 2. Click the zoom-in icon  that appears to the right of the cell. In the LOB dialog box that appears, you can view all the data in the cell.
Note |
| View BLOBs | The SQL window supports BLOB, CLOB, and RAW data types. |
| Right-click the tab name of a result tab | For example, you can right-click the tab name of the Result 1 tab and click Pin in the context menu to pin the tab, so that it remains displayed. In this way, when you execute a new query, a new result tab appears but does not overwrite the pinned result tab. This allows you to compare the query results. Click Unpin to unpin a result tab. |
| Filter, sort, and search for data | Each field name in the result set is provided with a filter icon, a sort icon, and a search icon. You can use them to filter, sort, and search for data in a single column. |
| Drag the column name | You can adjust the order of fields by dragging column names in a result set. |
The toolbar in the navigation bar of the Result tab also provides the following tools.
| Tool | Description |
|---|---|
| Column Mode | Click this button to display the selected data row in the form of a table. On the Column Mode page, you can switch to the previous or next row. Column Mode makes it easier to view data in a row that has many columns. To use the Column Mode page, perform the following steps:
|
| Columns | Click this button to select the columns to be displayed on the page. |
| Back to Start | Click this button to go to the first page. |
| Previous | Click this button to go to the previous page. |
| Next | Click this button to go to the next page. |
| Jump to Bottom | Click this button to go to the last page. |
| Edit | Click Edit to enable editing mode for the current result set. The editing mode supports the following operations: Add , Copy Current Row , Delete , Cancel , Confirm Modification , which submits a transaction when auto-commit is turned on, and Modify and Submit , which is displayed when auto-commit is turned off. In the editing mode, you can either double-click target data to directly modify it or click the preceding buttons for convenient operations. When you edit a cell, you can right-click the cell and select Copy or Set to Null from the context menu to operate on the cell.
Note
|
| Export | You can export query results to files in the CSV or SQL format.
|
| Plan | Click this button to view the actual resource consumption and execution plan of an executed SQL statement. This allows you to evaluate the performance of the statement. |
icon.
to view the details.
