Unit specification management

This topic describes how to add, modify, and delete unit specifications on the Unit Specification Management page of OceanBase Cloud Platform (OCP).

Prerequisites

The logged-on user in the OCP console has the update permission on the target tenant.

Procedure

1. Log on to the OCP console.

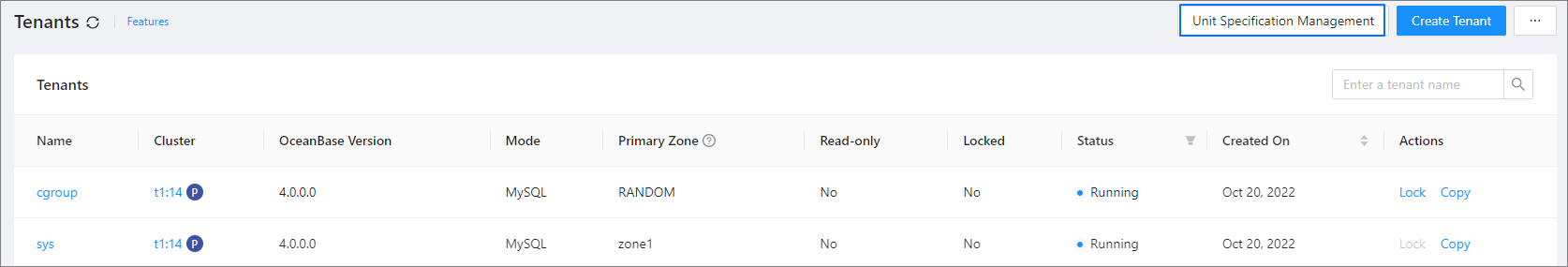

2. In the left-side navigation pane, click Tenants .

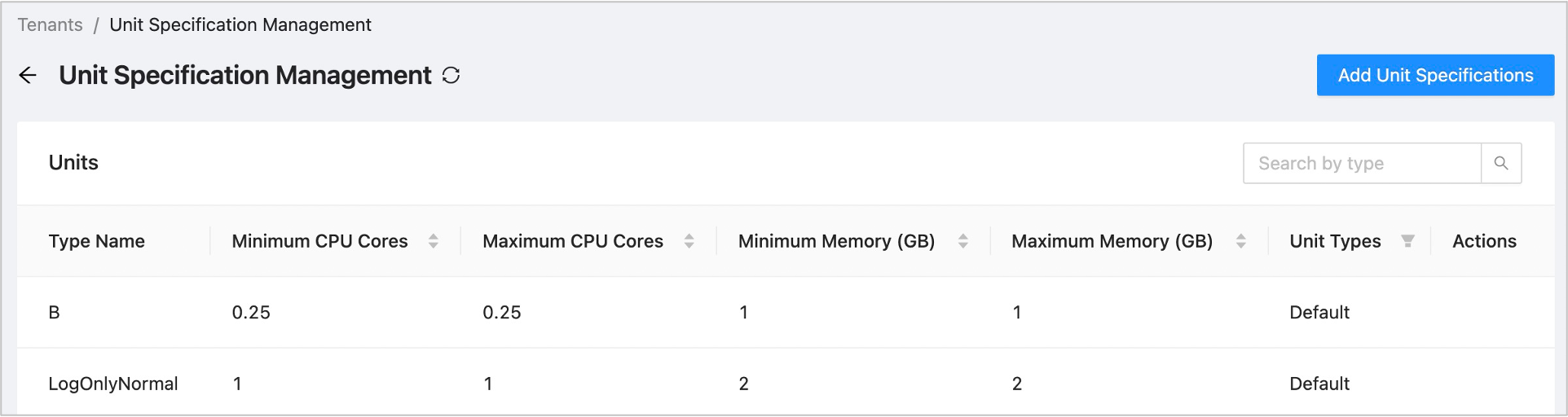

3. On the page that appears, click Unit Specification Management in the upper-right corner. Then, the Unit Specification Management page appears.



4. View the Units list that contains the following columns: Type Name, Minimum CPU Cores, Maximum CPU Cores, Minimum Memory (GB), Maximum Memory (GB), Unit Types , and Actions .

   • You can sort the unit specifications by minimum CPU cores, maximum CPU cores, minimum memory (GB), and maximum memory (GB) .

   • You can filter the unit specifications by unit type . The unit types supported are default and custom .

   • In the Actions column, you can click Modify or Delete .

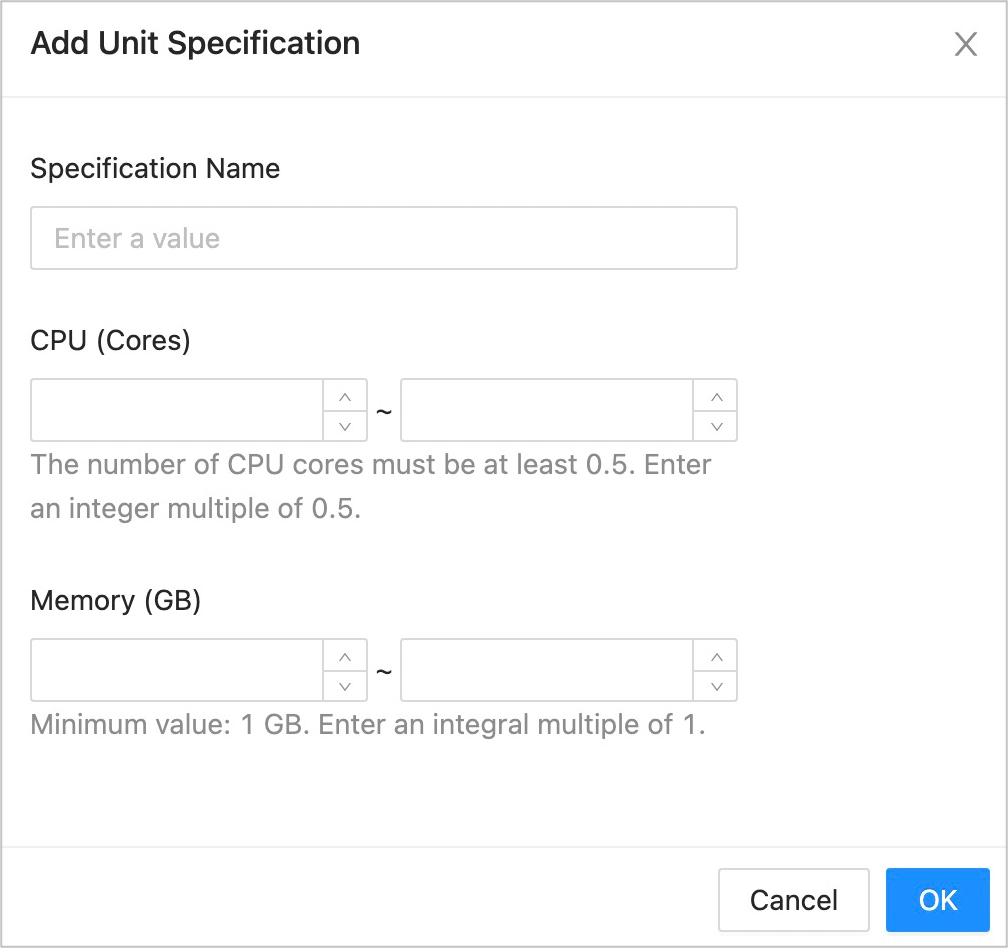

5. Click Add Unit Specification . Set the Specification Name, CPU (Cores) , and Memory (GB) parameters.
