Connection diagnostics

This topic describes how to troubleshoot disconnections.

Background information

The execution link of a request on OceanBase Database Proxy (ODP) is as follows: a client sends a request to ODP, ODP routes the request to the corresponding OBServer node, the OBServer node processes the request and returns a packet to ODP, and ODP returns the packet to the client. A disconnection can occur on the link in the following cases: the client does not receive a packet from ODP due to a long request processing time, logon fails due to incorrect cluster or tenant information, and an internal error occurs in ODP or OceanBase Database.

When a disconnection occurs, you can perform preliminary troubleshooting based on the information in the error packet returned from the OBServer node. However, the information provided in an error packet is insufficient for locating the issue, and no error packet is returned in some scenarios. In this case, you need to check the whole link. ODP provides connection diagnostic records to serve this purpose.

Diagnostic method

After a disconnection occurs, ODP generates a disconnection log in the obproxy_diagnosis.log file to record detailed information about the disconnection. The following is a disconnection log that records a logon failure due to an incorrect tenant name.

[2023-08-23 20:11:08.567425] [109316][Y0-00007F285BADB4E0] [CONNECTION](trace_type="LOGIN_TRACE", connection_diagnosis={cs_id:1031798792, ss_id:0, proxy_session_id:0, server_session_id:0, client_addr:"10.10.10.1:58218", server_addr:"*Not IP address [0]*:0", cluster_name:"undefined", tenant_name:"test", user_name:"root", error_code:-4043, error_msg:"dummy entry is empty, please check if the tenant exists", request_cmd:"COM_SLEEP", sql_cmd:"COM_LOGIN"}{internal_sql:""})

The general fields in a log are described as follows:

• LOG_TIME: the time when the log was recorded, which is 2023-08-23 20:11:08.567425 in this example.

• TID: the ID of the thread, which is 109316 in this example.

• TRACE_ID: the trace ID, which is Y0-00007F285BADB4E0 in this example. You can associate the log with other logs based on the trace ID.

• CONNECTION: indicates that this log is related to connection diagnostics.

• trace_type: the diagnostic type, which varies based on the cause of disconnection. Valid values:

  • LOGIN_TRACE: indicates that the disconnection is caused by a logon failure.

  • SERVER_INTERNAL_TRACE: indicates that the disconnection is caused by an internal error in OceanBase Database.

  • PROXY_INTERNAL_TRACE: indicates that the disconnection is caused by an internal error of ODP.

  • CLIENT_VC_TRACE: indicates that the disconnection is actively initiated by the client.

  • SERVER_VC_TRACE: indicates that the disconnection is actively initiated by OceanBase Database.

  • TIMEOUT_TRACE: indicates that the disconnection is caused by an execution timeout of the ODP process.

• CS_ID: the internal ID used by ODP to identify the client connection.

• SS_ID: the internal ID used by ODP to identify the connection between ODP and OceanBase Database.

• PROXY_SS_ID: the ID generated by ODP to identify the client connection. This ID is passed to OceanBase Database and can be used to filter OceanBase Database logs or the sql_audit table.

• SERVER_SS_ID: the ID generated by OceanBase Database to identify the connection between ODP and OceanBase Database.

• CLIENT_ADDR: the IP address of the client.

• SERVER_ADDR: the IP address of the OBServer node when an error or disconnection occurs.

• CLUSTER_NAME: the name of the cluster.

• TENANT_NAME: the name of the tenant.

• USER_NAME: the username.

• ERROR_CODE: the error code.

• ERROR_MSG: the error message, which is the key information for diagnosing disconnections.

• REQUEST_CMD: the type of the statement being executed by ODP, which can be an internal request.

• SQL_CMD: the type of the user statement.

Besides the preceding general information, a diagnostic log can contain additional diagnostic information, which is subject to the diagnostic type.

General disconnection scenarios

This section describes several common disconnection scenarios and how to locate and resolve these disconnections.

Disconnection upon a logon failure

The diagnostic type is LOGIN_TRACE. Here is a sample diagnostic log that records a disconnection caused by an incorrect tenant name during logon.

[2023-09-08 10:37:21.028960] [90663][Y0-00007F8EB76544E0] [CONNECTION](trace_type="LOGIN_TRACE", connection_diagnosis={cs_id:1031798785, ss_id:0, proxy_session_id:0, server_session_id:0, client_addr:"10.10.10.1:44018", server_addr:"*Not IP address [0]*:0", cluster_name:"undefined", tenant_name:"sys", user_name:"root", error_code:-10018, error_msg:"fail to check observer version, empty result", request_cmd:"COM_SLEEP", sql_cmd:"COM_LOGIN"}{internal_sql:"SELECT ob_version() AS cluster_version"})

The additional diagnostic information is internal_sql, which indicates that an internal request is being executed by ODP.

The causes of a disconnection upon a logon failure are complex. This section introduces the causes and solutions from the perspectives of user operations and OceanBase Database.

The following table describes the disconnection scenarios of user operations and the corresponding solutions.

The following table describes the disconnection scenarios of OceanBase Database and the corresponding solutions.

Disconnection upon timeout

The diagnostic type is TIMEOUT_TRACE. Here is a sample diagnostic log that records a disconnection caused by the timeout of cluster information.

[2023-08-17 17:10:46.834897] [119826][Y0-00007FBF120324E0] [CONNECTION](trace_type="TIMEOUT_TRACE", connection_diagnosis={cs_id:1031798785, ss_id:7, proxy_session_id:7230691830869983235, server_session_id:3221504994, client_addr:"10.10.10.1:42468", server_addr:"10.10.10.1:21100", cluster_name:"undefined", tenant_name:"sys", user_name:"root", error_code:-10022, error_msg:"OBProxy inactivity timeout", request_cmd:"COM_SLEEP", sql_cmd:"COM_END"}{timeout:1, timeout_event:"CLIENT_DELETE_CLUSTER_RESOURCE", total_time(us):21736})

The additional fields are described as follows:

• timeout_event: indicates the timeout event.

• total_time: indicates the request execution time.

The following table describes how to resolve disconnections caused by different timeout events.

Disconnection initiated by OceanBase Database

The diagnostic type is SERVER_VC_TRACE. Here is a sample diagnostic log that records a disconnection when ODP fails to establish a connection with OceanBase Database.

[2023-08-10 23:35:00.132805] [32339][Y0-00007F74C9A244E0] [CONNECTION](trace_type="SERVER_VC_TRACE", connection_diagnosis={cs_id:838860809, ss_id:0, proxy_session_id:7230691830869983240, server_session_id:0, client_addr:"10.10.10.1:45765", server_addr:"", cluster_name:"undefined", tenant_name:"sys", user_name:"root", error_code:-10013, error_msg:"Fail to build connection to observer", request_cmd:"COM_QUERY", sql_cmd:"COM_HANDSHAKE"}{vc_event:"unknown event", total_time(us):2952626, user_sql:"select 1 from dual"})

The additional fields are described as follows:

• vc_event: indicates the time of the disconnection event. You do not need to concern about this field.

• total_time: indicates the request execution time.

• user_sql: indicates a user request.

The following table describes the scenarios of disconnection actively initiated by OceanBase Database and the solutions.

Disconnection initiated by the client

The diagnostic type is CLIENT_VC_TRACE. Here is a sample diagnostic log that records a disconnection initiated by the client when ODP reads the request.

[2023-08-10 23:28:24.699168] [32339][Y0-00007F74C9A244E0] [CONNECTION](trace_type="CLIENT_VC_TRACE", connection_diagnosis={cs_id:838860807, ss_id:26, proxy_session_id:7230691830869983239, server_session_id:3221698209, client_addr:"10.10.10.1:44701", server_addr:"10.10.10.1:21100", cluster_name:"undefined", tenant_name:"sys", user_name:"root", error_code:-10010, error_msg:"An EOS event received from client while obproxy reading request", request_cmd:"COM_SLEEP", sql_cmd:"COM_END"}{vc_event:"VC_EVENT_EOS", total_time(us):57637, user_sql:""})

The additional fields are described as follows:

• vc_event: indicates the time of the disconnection event. You do not need to concern about this field.

• total_time: indicates the request execution time.

• user_sql: indicates a user request.

The following table describes the scenarios of disconnection actively initiated by the client.

Disconnection upon internal errors of ODP of OceanBase Database

The diagnostic type is PROXY_INTERNAL_TRACE for disconnections caused by internal errors of ODP, and is SERVER_INTERNAL_TRACE for disconnections caused by internal errors of OceanBase Database. Here is a sample diagnostic log that records a disconnection caused by an internal error of ODP.

[2023-08-10 23:26:12.558201] [32339][Y0-00007F74C9A244E0] [CONNECTION](trace_type="PROXY_INTERNAL_TRACE", connection_diagnosis={cs_id:838860805, ss_id:0, proxy_session_id:7230691830869983237, server_session_id:0, client_addr:"10.10.10.1:44379", server_addr:"", cluster_name:"undefined", tenant_name:"sys", user_name:"root", error_code:-10019, error_msg:"OBProxy reached the maximum number of retrying request", request_cmd:"COM_QUERY", sql_cmd:"COM_QUERY"}{user_sql:"USE `ý<8f>ý<91>ý<92>`"})

user_sql is an additional field that indicates the user request SQL.

The following table describes the scenarios of disconnections caused by internal errors of ODP or OceanBase Database and the corresponding solutions.

Other scenarios

Besides the preceding scenarios, the following disconnection scenarios are expected and recorded in diagnostic logs. The diagnostic type is PROXY_INTERNAL_TRACE.

Here is a sample diagnostic log. user_sql is an additional field that indicates the user request SQL.

[2023-08-10 23:27:15.107427] [32339][Y0-00007F74CAAE84E0] [CONNECTION](trace_type="PROXY_INTERNAL_TRACE", connection_diagnosis={cs_id:838860806, ss_id:21, proxy_session_id:7230691830869983238, server_session_id:3221695443, client_addr:"10.10.10.1:44536", server_addr:"10.10.10.1:21100", cluster_name:"undefined", tenant_name:"sys", user_name:"", error_code:-5065, error_msg:"connection was killed by user self, cs_id: 838860806", request_cmd:"COM_QUERY", sql_cmd:"COM_QUERY"}{user_sql:"kill 838860806"})

Examples

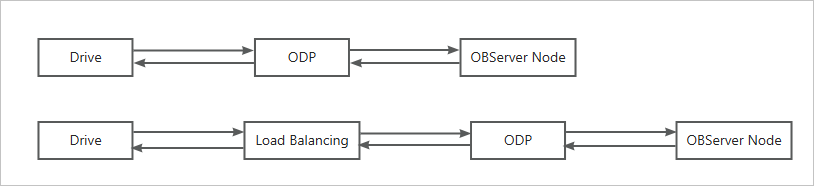

The following figure shows the general links of requests initiated by a client to OceanBase Database.

A request initiated by a client to OceanBase Database needs to pass multiple nodes. The client connection can be disconnected when an error occurs on any node. Therefore, when a connection is disconnected but the client does not receive any explicit error packet to indicate the cause of the disconnection, identify the node where the disconnection occurs and then find the cause based on the relevant logs on this node. To do so, perform the following steps:

Step 1: Identify the node where the disconnection occurs

If the current ODP is capable of connection diagnostics, you can quickly identify the node where the disconnection occurs based on the obproxy_diagnosis.log file. You can quickly find the disconnection log based on information such as the username, tenant name, cluster name, thread ID (corresponding to cs_id in the log file) obtained from the driver, and the time when the disconnection occurred. Then, determine the node where the disconnection occurs based on the trace_type field. Valid values of trace_type:

• CLIENT_VC_TRACE: indicates that the disconnection is initiated by the client.

• SERVER_VC_TRACE: indicates that the disconnection is initiated by OceanBase Database.

• SERVER_INTERNAL_TRACE: indicates that the disconnection is caused by an internal error in OceanBase Database.

• PROXY_INTERNAL_TRACE: indicates that the disconnection is caused by an internal error of ODP.

• LOGIN_TRACE: indicates that the disconnection is caused by a logon failure.

• TIMEOUT_TRACE: indicates that the disconnection is caused by a timeout.

Step 2: Identify the cause of disconnection

You can identify the cause of the disconnection based on the node where the disconnection occurs.

Disconnection initiated by the client

The default value of socketTimeout is 0 for JDBC, which indicates no socket timeout. However, some clients such as Druid and MyBatis have a socket timeout parameter. If a disconnection occurs due to a long request execution time, you can first check the socket timeout value. For more information, see Database connection pool configuration in OceanBase Database documentation.

1. View basic information about the disconnection in the connection diagnostic logs of ODP.

   [2023-09-07 15:59:52.308553] [122701][Y0-00007F7071D194E0] [CONNECTION](trace_type="CLIENT_VC_TRACE", connection_diagnosis={cs_id:524328, ss_id:0, proxy_session_id:7230691833961840700, server_session_id:0, client_addr:"10.10.10.1:38877", server_addr:"10.10.10.2:50110", cluster_name:"ob1.changluo.cc.10.10.10.2", tenant_name:"mysql", user_name:"root", error_code:-10011, error_msg:"An unexpected connection event received from client while obproxy handling request", request_cmd:"COM_QUERY", sql_cmd:"COM_QUERY"}{vc_event:"VC_EVENT_EOS", total_time(us):5016353, user_sql:"select sleep(20) from dual"})


   The fields in the diagnostic information are described as follows:

   • trace_type: the diagnostic type, which is CLIENT_VC_TRACE in this example, indicating that the disconnection is initiated by the client.

   • error_msg: the error message, which is An unexpected connection event received from client while obproxy handling request in this example, indicating that the client initiates a disconnection when ODP processes a request.

   • total_time: the request execution time, which is 5016353 in this example, indicating that the total request execution time is about 5s. You can check the timeout value on the client.

2. View the Java Database Connectivity (JDBC) stack of the client.

   The last packet successfully received from the server was 5,016 milliseconds ago.  The last packet sent successfully to the server was 5,011 milliseconds ago.
           at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
           at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
           at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
           at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
           at com.mysql.jdbc.Util.handleNewInstance(Util.java:411)
           at com.mysql.jdbc.SQLError.createCommunicationsException(SQLError.java:1129)
           at com.mysql.jdbc.MysqlIO.reuseAndReadPacket(MysqlIO.java:3720)
           at com.mysql.jdbc.MysqlIO.reuseAndReadPacket(MysqlIO.java:3609)
           at com.mysql.jdbc.MysqlIO.checkErrorPacket(MysqlIO.java:4160)
           at com.mysql.jdbc.MysqlIO.sendCommand(MysqlIO.java:2617)
           at com.mysql.jdbc.MysqlIO.sqlQueryDirect(MysqlIO.java:2778)
           at com.mysql.jdbc.ConnectionImpl.execSQL(ConnectionImpl.java:2819)
           at com.mysql.jdbc.ConnectionImpl.execSQL(ConnectionImpl.java:2768)
           at com.mysql.jdbc.StatementImpl.execute(StatementImpl.java:949)
           at com.mysql.jdbc.StatementImpl.execute(StatementImpl.java:795)
           at odp.Main.main(Main.java:12)
   Caused by: java.net.SocketTimeoutException: Read timed out
           at java.net.SocketInputStream.socketRead0(Native Method)
           at java.net.SocketInputStream.socketRead(SocketInputStream.java:116)
           at java.net.SocketInputStream.read(SocketInputStream.java:170)
           at java.net.SocketInputStream.read(SocketInputStream.java:141)
           at com.mysql.jdbc.util.ReadAheadInputStream.fill(ReadAheadInputStream.java:114)
           at com.mysql.jdbc.util.ReadAheadInputStream.readFromUnderlyingStreamIfNecessary(ReadAheadInputStream.java:161)
           at com.mysql.jdbc.util.ReadAheadInputStream.read(ReadAheadInputStream.java:189)
           at com.mysql.jdbc.MysqlIO.readFully(MysqlIO.java:3163)
           at com.mysql.jdbc.MysqlIO.reuseAndReadPacket(MysqlIO.java:3620)
        9 more


   The stack and packet sending and receiving time indicate that the client initiates a disconnection due to socket timeout.

Disconnection initiated by ODP

ODP reads the net_write_timeout value from OceanBase Database to control the timeout value for packet transmission. The default value is 60s. In the case of extreme network environment conditions or if OceanBase Database does not return a packet after a long period, ODP may be disconnected due to a timeout. Here takes the scenario where a timeout occurs when ODP waits for a response packet from OceanBase Database as an example.

Determine the node where the disconnection occurs based on the diagnostic logs of ODP.

[2023-09-08 01:22:17.229436] [81506][Y0-00007F455197E4E0] [CONNECTION](trace_type="TIMEOUT_TRACE", connection_diagnosis={cs_id:1031798827, ss_id:342, proxy_session_id:7230691830869983244, server_session_id:3221753829, client_addr:"10.10.10.1:34901", server_addr:"10.10.10.1:21102", cluster_name:"undefined", tenant_name:"mysql", user_name:"root", error_code:-10022, error_msg:"OBProxy inactivity timeout", request_cmd:"COM_QUERY", sql_cmd:"COM_QUERY"}{timeout(us):6000000, timeout_event:"CLIENT_NET_WRITE_TIMEOUT", total_time(us):31165295})

The fields in the diagnostic information are described as follows:

• trace_type: the diagnostic type, which is TIMEOUT_TRACE in this example, indicating that the disconnection occurs due to an execution timeout of ODP.

• timeout_event: the timeout event, which is CLIENT_NET_WRITE_TIMEOUT in this example, indicating that a timeout occurs when ODP waits for a response packet from OceanBase Database.

The diagnostic information indicates that net_write_timeout is triggered. The client connection is disconnected after being left unattended for more than 6s (not the default value). In this case, you can change the timeout period to a larger value to work around this issue.

Disconnection triggered by a logon failure

This section provides two scenarios.

• Scenario 1: The OBServer node specified in the RootService list is unavailable. Here is a sample diagnostic log.

  [2023-09-08 10:37:21.028960] [90663][Y0-00007F8EB76544E0] [CONNECTION](trace_type="LOGIN_TRACE", connection_diagnosis={cs_id:1031798785, ss_id:0, proxy_session_id:0, server_session_id:0, client_addr:"10.10.10.1:44018", server_addr:"*Not IP address [0]*:0", cluster_name:"undefined", tenant_name:"sys", user_name:"root", error_code:-10018, error_msg:"fail to check observer version, empty result", request_cmd:"COM_SLEEP", sql_cmd:"COM_LOGIN"}{internal_sql:"SELECT ob_version() AS cluster_version"})


  The fields in the diagnostic information are described as follows:

  • trace_type: the diagnostic type, which is LOGIN_TRACE in this example, indicating that the disconnection is caused by a logon failure.

  • internal_sql: the internal request being executed by ODP, which is SELECT ob_version() AS cluster_version in this example, indicating that ODP fails to execute this internal request during logon.

  • error_msg: the error message, which is fail to check observer version, empty result in this example, indicating that the cause of the request execution failure is that the result set is empty.

  To sum up, ODP fails to execute the internal request SELECT ob_version() AS cluster_version because the result set is empty. The SQL statement SELECT ob_version() AS cluster_version is a request for ODP to query the cluster version. ODP executes this request to verify the cluster information when you log on for the first time. If the RootService list configured when ODP is started is incorrect or if the OBServer node breaks down, the query will fail, thereby causing a logon failure.

• Scenario 2: The number of client connections reaches the upper limit of ODP.

  You can troubleshoot the issue by using the following methods:

  • Method 1: Check the connection diagnostic logs.

    [2023-09-08 11:19:26.617385] [110562][Y0-00007FE1F06AC4E0] [CONNECTION](trace_type="LOGIN_TRACE", connection_diagnosis={cs_id:1031798805, ss_id:0, proxy_session_id:0, server_session_id:0, client_addr:"127.0.0.1:40004", server_addr:"*Not IP address [0]*:0", cluster_name:"undefined", tenant_name:"sys", user_name:"root", error_code:-5059, error_msg:"Too many sessions", request_cmd:"COM_SLEEP", sql_cmd:"COM_LOGIN"}{internal_sql:""})


    The fields in the diagnostic information are described as follows:

    • trace_type: the diagnostic type, which is LOGIN_TRACE in this example, indicating that the disconnection is caused by a logon failure.

    • error_msg: the error message, which is Too many session in this example, indicating that the logon fails because the number of connections reaches the upper limit.

  • Method 2: Check the error message. The error message Too many sessions is returned when you run a connection command.

    $ obclient -h127.0.0.1 -P2899 -uroot@sys -Dtest -A -c
    ERROR 1203 (42000): Too many sessions
