View and edit project templates

This topic describes how to view and edit existing project templates in OceanBase Migration Service (OMS).

View project templates

1. Log on to the OMS console.

2. In the left-side navigation pane, choose O&M and Monitoring > Parameter Template. The Project Template tab automatically appears.



3. On the Project Template tab, you can view information about the created project templates in columns such as Template Name, Remarks, Last Modified At, and Last Modified By, and can manage the templates by clicking Edit, Copy, Export, and Delete in the Actions column.

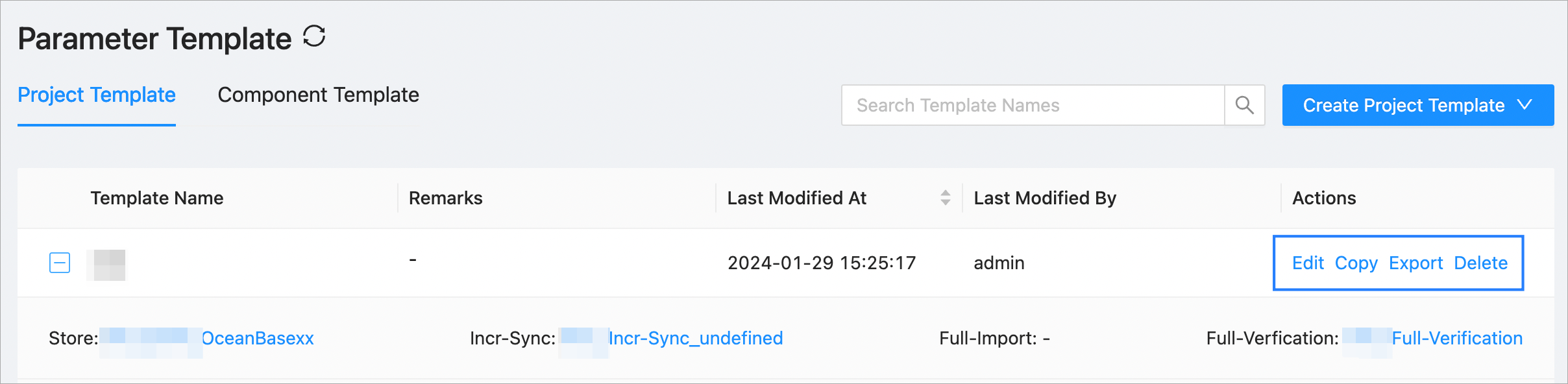

   You can also click the plus sign (+) before the name of a project template to view the names of component templates used by the project template. You can click the name of a component template to view the template information such as the component type and parameter template in the right-side pane.

Edit a project template

1. In the left-side navigation pane of the OMS console, choose O&M and Monitoring > Parameter Template. The Project Template tab automatically appears.

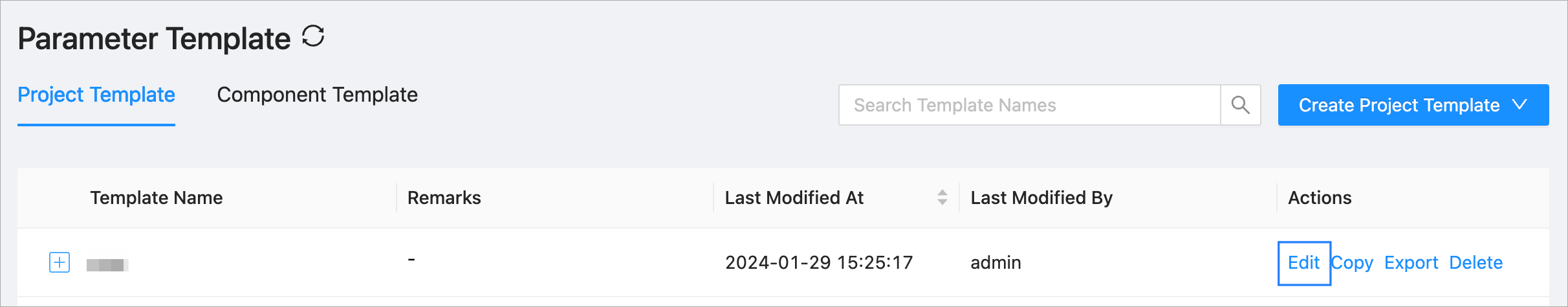

2. On the Project Template tab, find the project template that you want to edit, and click Edit in the Actions column.

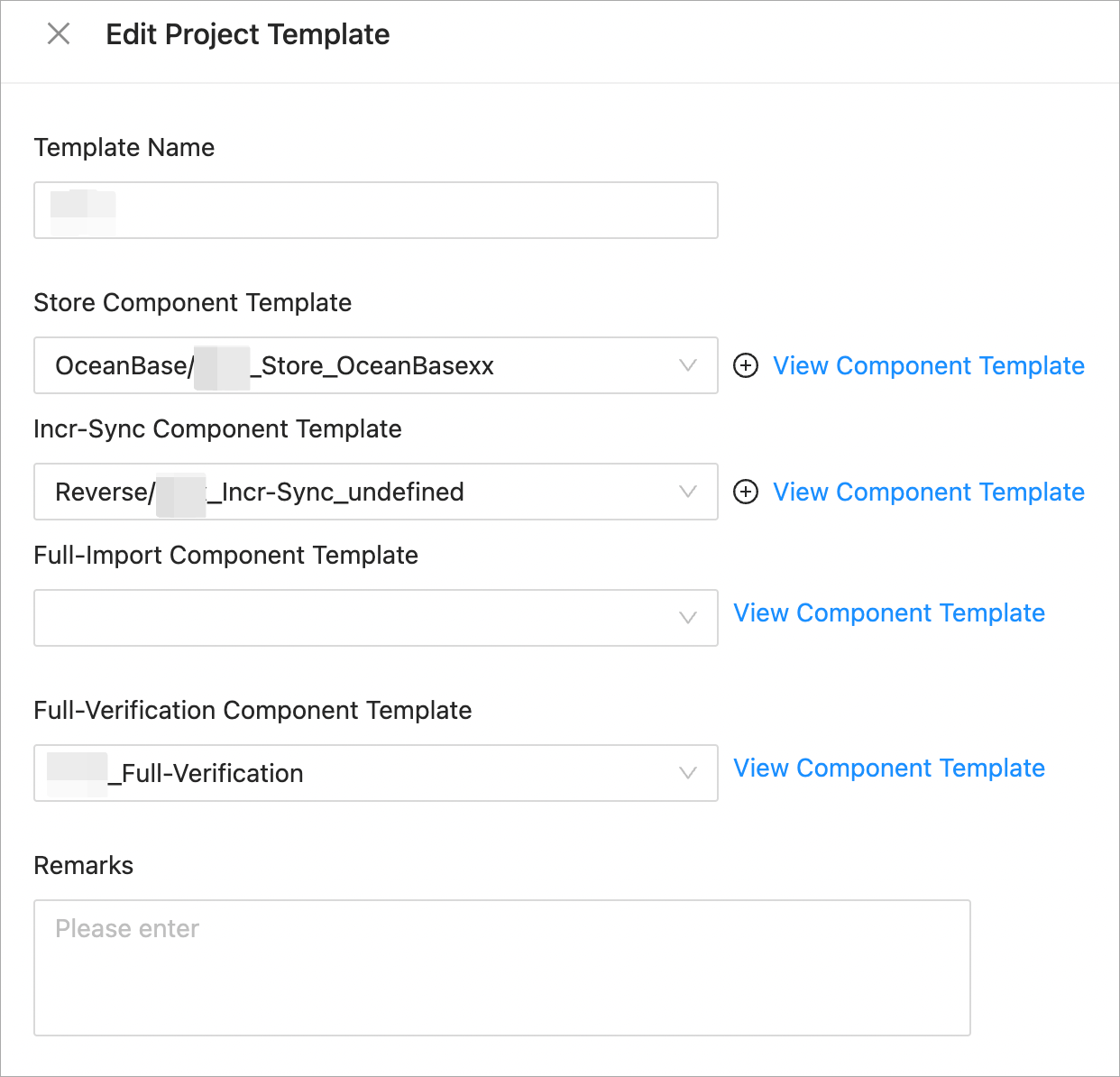

3. In the Edit Project Template dialog box, configure the parameters.



   Parameter	Description
   Template Name	It must not contain any spaces and cannot exceed 64 characters in length.
   Store Component Template	Select an existing component template from the drop-down list. Supported Store component types are MySQL, Oracle, OceanBase, DB2, and PostgreSQL. You can add at most two types of Store component templates.
   Incr-Sync Component Template	Select an existing component template from the drop-down list. Supported Incr-Sync component types are Forward, Reverse, and Bidirectional. You can add at most two types of Incr-Sync component templates.
   Full-Import Component Template	Select an existing component template from the drop-down list.
   Full-Verification Component Template	Select an existing component template from the drop-down list.
   Remarks	Additional information about the project template.

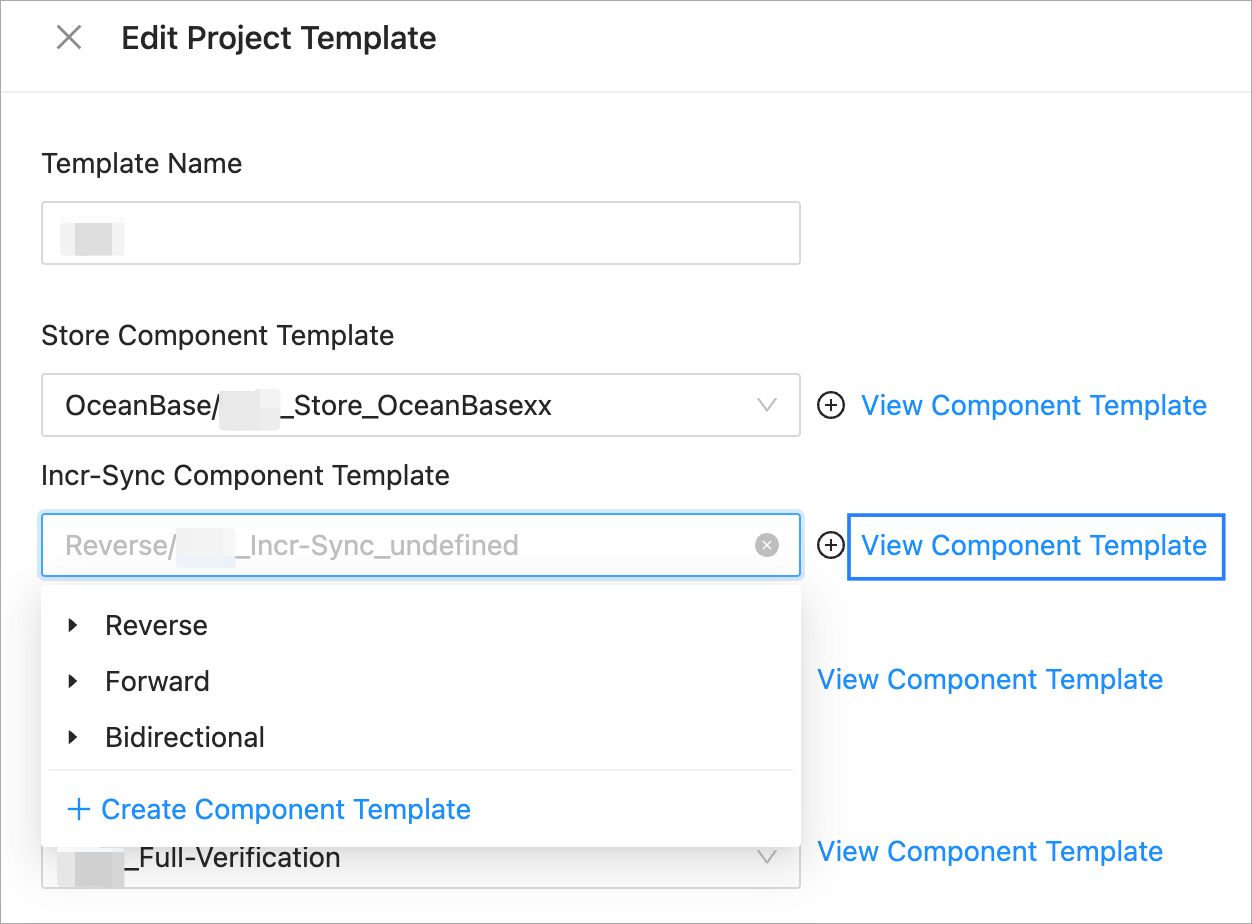

   After you select a component template to be updated, you can click View Component Template next to the drop-down list to view its content. If the required component template does not exist, you can click Create Component Template to create one.



4. Click OK.
