Edit a tenant replica in a zone

This topic describes how to edit a tenant replica in a zone.

Procedure

1. Log on to the OceanBase Cloud Platform (OCP) console.

2. In the left-side navigation pane, click Tenants. The Tenant Overview page appears.

3. In the Tenants list, find the target tenant and click its name. The Tenant Details page appears.

4. In the Replica Details section, you can perform different operations based on the version of the OceanBase cluster.

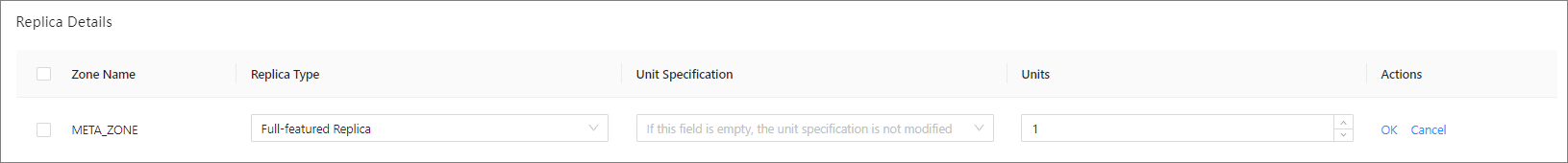

   • If the version of the cluster is earlier than V4.0, you can click Edit in the Actions column of a zone to modify the replica type, unit specification, and number of units of the zone.

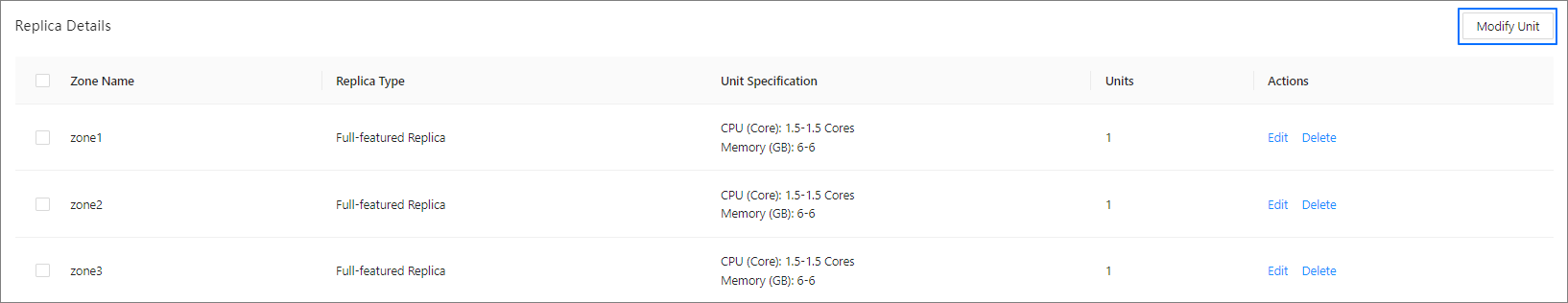

   • If the version of the cluster is V4.0 and later, you cannot separately modify the number of units of each zone. You can click Modify Unit in the upper-right corner to collectively modify the number and specifications of units of all zones under the tenant. You can also click Edit in the Actions column of a zone to modify the replica type and unit specifications of the zone.



5. Click OK.
