Upgrade the version of an OceanBase cluster

This topic describes how to upgrade an OceanBase cluster through OceanBase Cloud Platform (OCP). The method for upgrading an OceanBase cluster is closely related to its version. For more information, visit the official website of OceanBase Database, and see the Upgrade Guide for a specific version.

Prerequisites

• You have the permission to manage the cluster.

• (Optional) To upgrade OceanBase Database earlier than V2.2.60, you must define an upgrade path in the /home/admin/ocp-server/etc/oceanbase_upgrade_dep.yml file of OCP. The upgrade path must be similar to the following example: The method is described at the top of the file.

  ### The description of older versions is omitted.
  - version: 2.2.70
    can_be_upgraded_to:
        - 2.2.71
  - version: 2.2.71
    can_be_upgraded_to:
        - 2.2.72
  - version: 2.2.72
    can_be_upgraded_to:
        - 2.2.73
  - version: 2.2.73         # The target version must completely appear in this format, including the two lines below:
    can_be_upgraded_to:
        - 2.2.74


  Note

  The preceding example shows that OceanBase Database can be upgraded from V2.2.72, V2.2.71, V2.2.70, and earlier to V2.2.73, but cannot be upgraded to V2.2.74.

• All RPM packages required for the upgrade have been uploaded, such as oceanbase-x.x.x-YYYYMMDDhhmmss.el7.x86_64.rpm or oceanbase-x.x.x-YYYYMMDDhhmmss.el7.aarch64.rpm.

Procedure

1. Log on to the OCP console. The Clusters page automatically appears.

2. In the Clusters list on the Clusters page, find the target cluster and click its name.

   The Overview page of that cluster automatically appears.

3. Click the More icon in the upper-right corner of the Overview page, and click Upgrade Version .

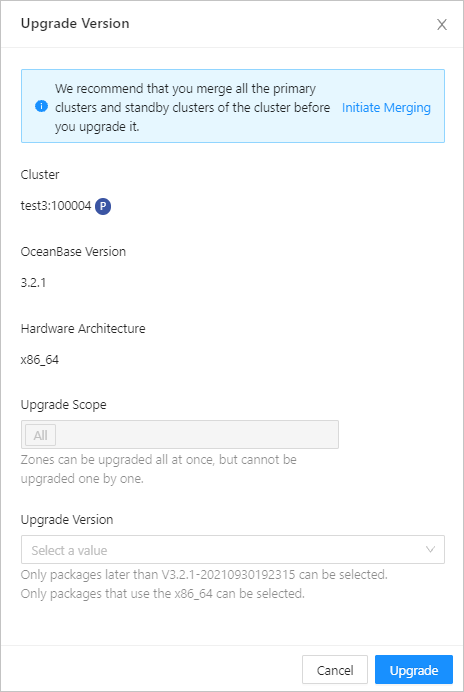

   The Upgrade Version page automatically appears.



   • The Cluster field displays the OceanBase cluster to be upgraded.

     If the cluster in Step 2 is associated with primary/standby clusters, the associated primary/standby clusters are also upgraded.

   • Select the target OceanBase version from the drop-down list of the Upgrade Version field.

     If the RPM package for the target version does not exist in the list, you can click Add Version at the bottom of the list to upload the target RPM package.

4. Click Upgrade .

   • If an error message prompts that the upgrade path from version xxx to version yyy is not found, you need to define the upgrade path in the oceanbase_upgrade_dep.yml file as described in the preceding Prerequisites.

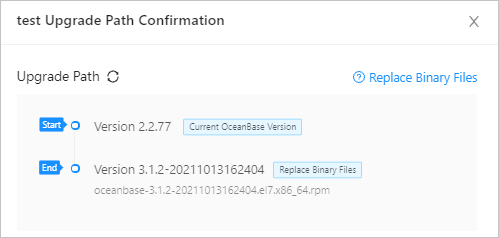

   • If configurations are correct, the test Upgrade Path Confirmation dialog box automatically appears.

     In the dialog box, verify whether the RPM packages exist for all the specified versions. If not, click Upload to upload the RPM packages as required.



5. Click OK .
