On the host details page, you can view the basic information, OceanBase Cloud Platform (OCP) Agent, and monitoring data of the host.
View the basic information of a host
On the Basic Information tab, you can view the host details, including the host status, host name, host alias, SSH port number, disk information, host model, physical IDC, host type, service, operating system, current time, time zone, and clock offset. The disk information includes the disk path, disk partitions, space used, space available, usage, and mount directory.

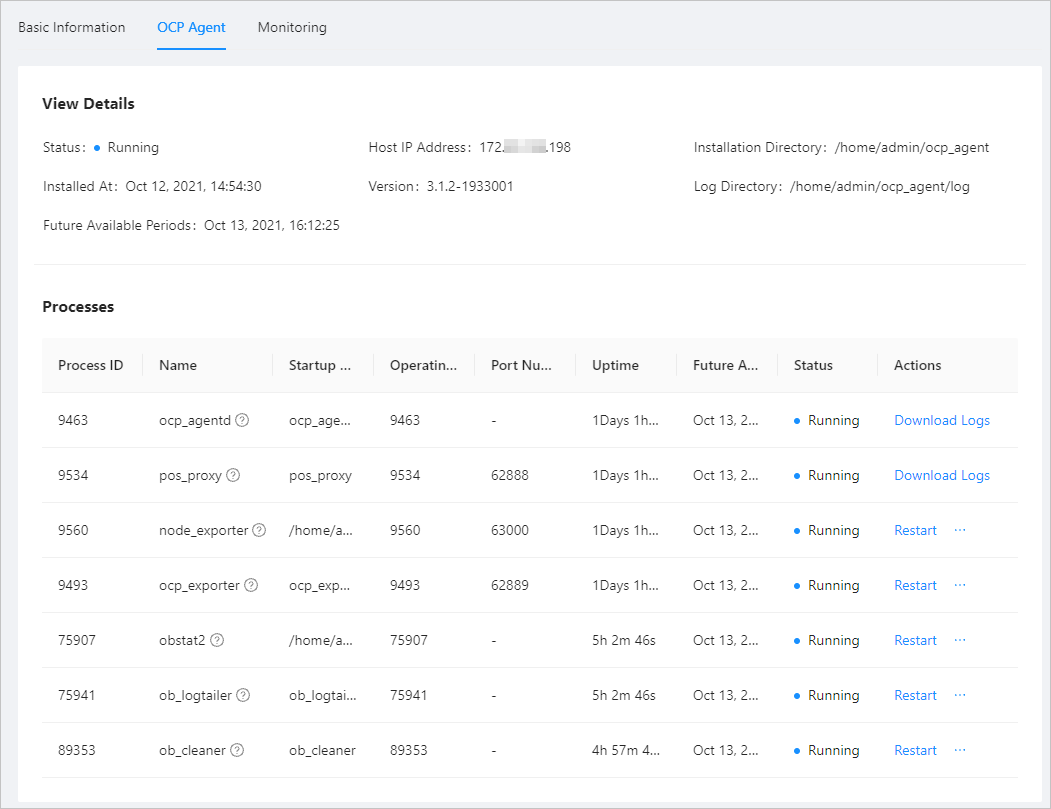

View the OCP Agent
On the OCP Agent tab, you can view the OCP Agent status, host IP address, installation directory, installation time, version, log directory, and last available time. You can also view and manage processes. For more information, see Download logs, Restart OCP Agent, and Stop OCP Agent.
View monitoring information
On the Monitoring tab, you can view the monitoring data concerning host performance and host resources..

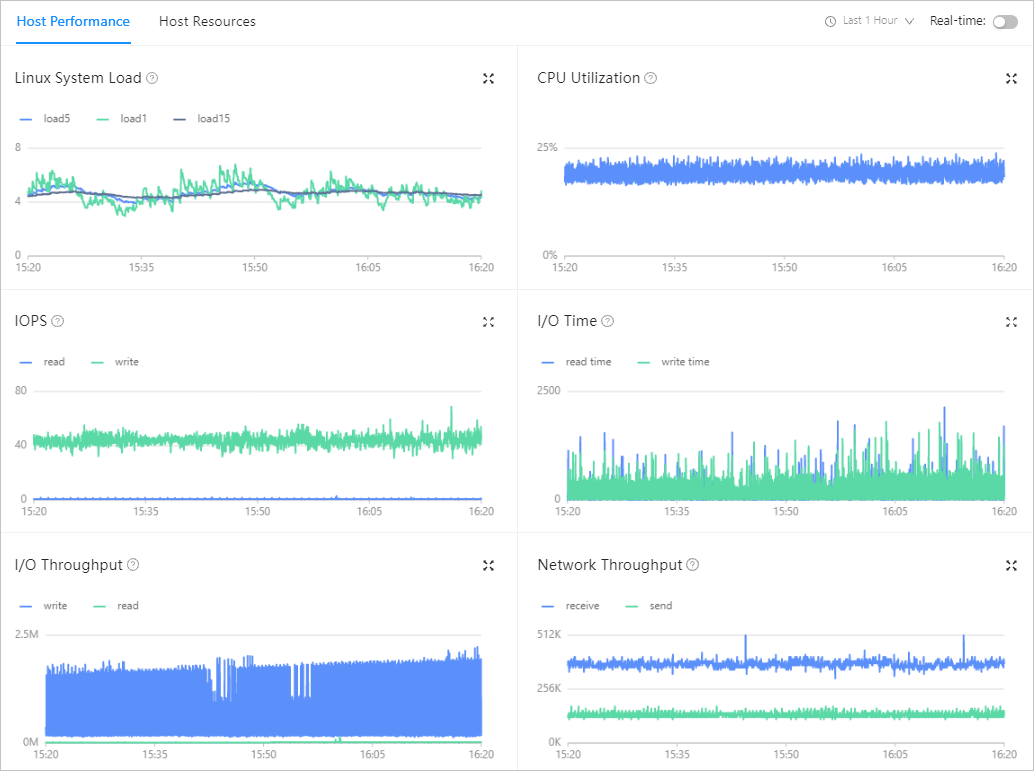

View the monitoring data concerning host performance
Parameter Description Linux system load load1: The average system load in the last 1 minute. load5: The average system load in the last 5 minutes. load15: The average system load in the last 15 minutes. IOPS read: The number of reads per second. write: The number of writes per second. I/O Time read: The average read time per second in the unit of µs. write: The average write time per second in the unit of µs. I/O throughput read: The amount in MB of data read each time. write: The amount in MB of data written each time. Network Throughput Rate receive: The amount in MB of data received per second. send: The amount in MB of data sent per second. View the monitoring data concerning host resources
Parameter Description Memory used: The size in GB of the used physical memory. buffers: The size in GB of the kernel buffer cache. free: The size in GB of the available physical memory. Disk The disk usage in GB.
