Use SQL functions

This topic describes the vector functions supported by OceanBase Database and the considerations for using them.

Considerations

• Vectors in different dimensions are not supported. An error different vector dimensions %d and %d will be returned when you perform operations on vectors in different dimensions.

• An error value out of range: overflow / underflow will be returned when the result is out of the floating-point number range.

• Vector indexes support L2 distance and inner product distance calculations. For more information, see Create a vector index.

Preparations

Before you use vector indexes, you must enable vector-based indexes by setting ob_vector_memory_limit_percentage.

ALTER SYSTEM SET ob_vector_memory_limit_percentage = 30;

Distance function

A distance function calculates the distance between two vectors based on the specific distance algorithm used.

L2_distance

The Euclidean distance measures the distance between coordinates of two vectors -- essentially the straight-line distance between two vectors. It is calculated using the Pythagorean theorem applied to vector coordinates:

The syntax is as follows:

l2_distance(vector v1, vector v2)

The parameters are described as follows:

• Parameters can be of any type that can be forcibly converted to a vector type, including single-level array types (such as [1,2,3,..]) and string types (such as '[1,2,3]'), except for the vector type.

• The dimensions of the two parameters must be the same.

• If a single-level array type is used as a parameter, the parameter elements must not contain NULL.

The return value is described as follows:

• The return value is a distance(double) value.

• If any parameter is NULL, the return value is NULL.

Here is an example:

CREATE TABLE t1(c1 vector(3));
INSERT INTO t1 VALUES('[1,2,3]');
SELECT l2_distance(c1, [1,2,3]), l2_distance([1,2,3],[1,1,1]), l2_distance('[1,1,1]','[1,2,3]') FROM t1;

The return result is as follows:

+--------------------------+------------------------------+----------------------------------+
| l2_distance(c1, [1,2,3]) | l2_distance([1,2,3],[1,1,1]) | l2_distance('[1,1,1]','[1,2,3]') |
+--------------------------+------------------------------+----------------------------------+
|                        0 |             2.23606797749979 |                 2.23606797749979 |
+--------------------------+------------------------------+----------------------------------+
1 row in set

L1_distance

The Manhattan distance measures the sum of absolute differences of coordinates between two points in a standard coordinate system. The formula is as follows:

The syntax is as follows:

l1_distance(vector v1, vector v2)

The parameters are described as follows:

• Parameters can be of any type that can be forcibly converted to a vector type, including single-level array types (such as [1,2,3,..]) and string types (such as '[1,2,3]'), except for the vector type.

• The dimensions of the two parameters must be the same.

• If a single-level array type is used as a parameter, the parameter elements must not contain NULL.

The return value is described as follows:

• The return value is a distance(double) value.

• If any parameter is NULL, the return value is NULL.

Here is an example:

CREATE TABLE t2(c1 vector(3));
INSERT INTO t2 VALUES('[1,2,3]');
INSERT INTO t2 VALUES('[1,1,1]');
SELECT l1_distance(c1, [1,2,3]) FROM t2;

The return result is as follows:

+--------------------------+
| l1_distance(c1, [1,2,3]) |
+--------------------------+
|                        0 |
|                        3 |
+--------------------------+
2 rows in set

Cosine_distance

The cosine similarity measures the angle difference between two vectors. It measures the directional similarity between two vectors regardless of their length (magnitude). The cosine similarity ranges from [-1, 1]. A value of 1 indicates that the two vectors are in the same direction. A value of 0 indicates that the two vectors are orthogonal. A value of -1 indicates that the two vectors are in opposite directions.

The cosine similarity is calculated using the following formula:

The cosine distance, which measures the distance between two vectors, is calculated by subtracting the cosine similarity from 1. The formula is as follows:

The cosine distance ranges from [0, 2]. A value of 0 indicates that the two vectors are in the same direction and there is no distance between them. A value of 2 indicates that the two vectors are in opposite directions.

The syntax is as follows:

cosine_distance(vector v1, vector v2)

The parameters are described as follows:

• Parameters can be of any type that can be forcibly converted to a vector type, including single-level array types (such as [1,2,3,..]) and string types (such as '[1,2,3]'), except for the vector type.

• The dimensions of the two parameters must be the same.

• If a single-level array type is used as a parameter, the parameter elements must not contain NULL.

The return value is described as follows:

• The return value is a distance(double) value.

• If any parameter is NULL, the return value is NULL.

Here is an example:

CREATE TABLE t3(c1 vector(3));
INSERT INTO t3 VALUES('[1,2,3]');
INSERT INTO t3 VALUES('[1,2,1]');
SELECT cosine_distance(c1, [1,2,3]) FROM t3;

The return result is as follows:

+------------------------------+
| cosine_distance(c1, [1,2,3]) |
+------------------------------+
|                            0 |
|          0.12712843905603044 |
+------------------------------+
2 rows in set

Inner_product

The inner product, also known as the dot product or scalar product, is a type of multiplication between two vectors. In geometry, the inner product indicates the directional and magnitude relationships between two vectors. The formula for calculating the inner product is as follows:

The syntax is as follows:

inner_product(vector v1, vector v2)

The parameters are described as follows:

• Apart from vector types, other types that can be forcibly converted to vector types are supported. Examples of other types include single-level array types like [1,2,3,...] and string types like '[1,2,3]'.

• The dimensions of the two parameters must be the same.

• If the parameter contains single-level array types, NULL values are not allowed in the elements of this parameter.

The return value is described as follows:

• The return value is a distance(double) value.

• If any parameter is NULL, the return value is NULL.

Here is an example:

CREATE TABLE t4(c1 vector(3));
INSERT INTO t4 VALUES('[1,2,3]');
INSERT INTO t4 VALUES('[1,2,1]');
SELECT inner_product(c1, [1,2,3]) FROM t4;

The return result is as follows:

+----------------------------+
| inner_product(c1, [1,2,3]) |
+----------------------------+
|                         14 |
|                          8 |
+----------------------------+
2 rows in set

Negative_inner_product

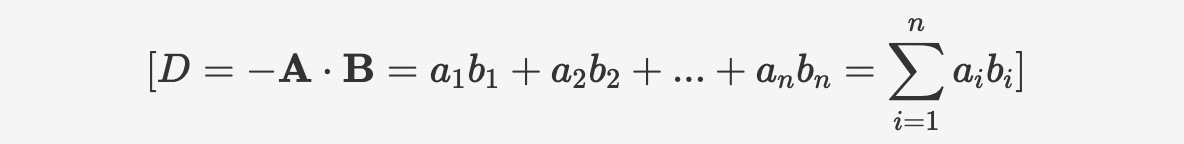

The negative_inner_product function calculates the negative inner product between two vectors by using the following formula:

The syntax is as follows:

negative_inner_product(vector v1, vector v2)

The parameters are described as follows:

• Apart from vector types, other types that can be forcibly converted to vector types are supported. Examples of other types include single-level array types like [1,2,3,...] and string types like '[1,2,3]'.
• The dimensions of the two parameters must be the same.
• If the parameter contains single-level array types, NULL values are not allowed in the elements of this parameter.

The return value is described as follows:

• The return value is a distance(double) value.
• If any parameter is NULL, the return value is NULL.

Here is an example:

CREATE TABLE t4(c1 vector(3));
INSERT INTO t4 VALUES('[1,2,3]');
INSERT INTO t4 VALUES('[1,2,1]');
SELECT negative_inner_product(c1, [1,2,3]) FROM t4;

The return result is as follows:

+-------------------------------------+
| negative_inner_product(c1, [1,2,3]) |
+-------------------------------------+
|                                 -14 |
|                                  -8 |
|                                 -14 |
|                                  -8 |
+-------------------------------------+
4 rows in set

Vector_distance

The vector_distance function calculates the distance between two vectors by using different distance algorithms based on the specified parameters.

The syntax is as follows:

vector_distance(vector v1, vector v2 [, string metric])

The parameters are described as follows:

• Apart from vector types, other types that can be forcibly converted to vector types are supported. Examples of other types include single-level array types like [1,2,3,...] and string types like '[1,2,3]'.

• The dimensions of the two parameters must be the same.

• If the parameter contains single-level array types, NULL values are not allowed in the elements of this parameter.

The metric parameter specifies the distance algorithm. Valid values:

• If the parameter is not specified, the default algorithm is euclidean.

• If the parameter is specified, the value must be one of the following:

  • euclidean: the Euclidean distance, which is the same as L2_distance.

  • manhattan: the Manhattan distance, which is the same as L1_distance.

  • cosine: the cosine distance, which is the same as Cosine_distance.

  • dot: the inner product, which is the same as Inner_product.

The return value is described as follows:

• The return value is a distance(double) value.

• If any parameter is NULL, the return value is NULL.

Here is an example:

CREATE TABLE t5(c1 vector(3));
INSERT INTO t5 VALUES('[1,2,3]');
INSERT INTO t5 VALUES('[1,2,1]');
SELECT vector_distance(c1, [1,2,3], euclidean) FROM t5;

The return result is as follows:

+-----------------------------------------+
| vector_distance(c1, [1,2,3], euclidean) |
+-----------------------------------------+
|                                       0 |
|                                       2 |
+-----------------------------------------+
2 rows in set

Arithmetic functions

Arithmetic functions provide element-wise addition (+), subtraction (-), and multiplication (*) operations between vector types, between single-level array types, and between special string types. The operation results are as follows:

The syntax is as follows:

v1 + v2
v1 - v2
v1 * v2

The parameters are described as follows:

• Except for vector types, parameters can be of any type that can be forcibly converted to a vector type, including single-level array types (such as [1,2,3,..]) and string-like types (such as '[1,2,3]'). Note: the two parameters cannot both be string-like types; one of them must be a vector or single-level array type.

• The dimensions of the two parameters must be the same.

• If a single-level array type parameter exists, the elements of this parameter must not be NULL.

The return values are described as follows:

• If at least one of the two parameters is a vector type, the return value is a vector of the same type as the vector parameter.

• If the two parameters are both single-level array types, the return value is of the array(float) type.

• If any parameter is NULL, the return value is NULL.

Here is an example:

CREATE TABLE t6(c1 vector(3));
INSERT INTO t6 VALUES('[1,2,3]');
SELECT [1,2,3] + '[1.12,1000.0001, -1.2222]', c1 - [1,2,3] FROM t6;

The return result is as follows:

+---------------------------------------+--------------+
| [1,2,3] + '[1.12,1000.0001, -1.2222]' | c1 - [1,2,3] |
+---------------------------------------+--------------+
| [2.12,1002,1.7778]                    | [0,0,0]      |
+---------------------------------------+--------------+
1 row in set

Comparison functions

Comparison functions provide comparison between vector types, single-level array types, and special string types. It supports comparison operators such as =, !=, >, <, >=, and <=. The comparison is performed by comparing the elements in the order of dictionaries.

The syntax is as follows:

v1 = v2
v1 != v2
v1 > v2
v1 < v2
v1 >= v2
v1 <= v2

The parameters are described as follows:

• Apart from vector types, other types that can be forcibly converted to vector types are allowed. This includes single-level array types, such as [1,2,3,...], and string literal types, such as '[1,2,3]'.

  Notice

  One of the two parameters must be a vector type.

• The dimensions of the two parameters must be the same.

• If one of the two parameters is a single-level array type, NULL values are not allowed in the elements of this parameter.

The return value is described as follows:

• The return value is of the bool type.

• If any parameter is NULL, the return value is NULL.

Example:

CREATE TABLE t7(c1 vector(3));
INSERT INTO t7 VALUES('[1,2,3]');
SELECT c1 = '[1,2,3]' FROM t7;

The return result is as follows:

+----------------+
| c1 = '[1,2,3]' |
+----------------+
|              1 |
+----------------+
1 row in set

Aggregate functions

Sum

The sum function calculates the sum of vector columns in a table. It performs element-by-element addition to obtain the sum vector.

The syntax is as follows:

sum(vector v1)

The parameters are described as follows:

• Only vectors are supported.

The return values are described as follows:

• The return value is sum (vector).

• NULL columns are not included in the summation result.

Here is an example:

CREATE TABLE t8(c1 vector(3));
INSERT INTO t8 VALUES('[1,2,3]');
SELECT sum(c1) FROM t8;

The return result is as follows:

+---------+
| sum(c1) |
+---------+
| [1,2,3] |
+---------+
1 row in set

Avg

The avg function calculates the average of vector columns in a table.

The syntax is as follows:

avg(vector v1)

The parameters are described as follows:

• Only vectors are supported.

The return values are described as follows:

• The return value is avg (vector).

• NULL columns are not included in the sum or count processes.

• If the input parameter is empty, the output is NULL.

Here is an example:

CREATE TABLE t9(c1 vector(3));
INSERT INTO t9 VALUES('[1,2,3]');
SELECT avg(c1) FROM t9;

The return result is as follows:

+---------+
| avg(c1) |
+---------+
| [1,2,3] |
+---------+
1 row in set

Other commonly used vector functions

Vector_norm

The Vector_norm function is used to calculate the Euclidean norm (magnitude) of a vector, which represents the Euclidean distance between the vector and the origin. The calculation method is as follows:

The syntax is as follows:

vector_norm(vector v1)

The parameters are described as follows:

• Apart from the vector type, other types that can be forcibly converted to the vector type are acceptable. These include single-level array types such as [1,2,3,...] and string types such as '[1,2,3]'.

• When a single-level array type parameter is involved, its elements must not be NULL.

The return values are described as follows:

• Returns norm(double).

• Returns NULL when the parameter is NULL.

Here is an example:

CREATE TABLE t10(c1 vector(3));
INSERT INTO t10 VALUES('[1,2,3]');
SELECT vector_norm(c1),vector_norm([1,2,3]) FROM t10;

The return result is as follows:

+--------------------+----------------------+
| vector_norm(c1)    | vector_norm([1,2,3]) |
+--------------------+----------------------+
| 3.7416573867739413 |   3.7416573867739413 |
+--------------------+----------------------+
1 row in set

Vector_dims

The Vector_dims function is used to return the dimension of a vector.

The syntax is as follows:

vector_dims(vector v1)

The parameters are described as follows:

• Apart from the vector type, other types that can be forcibly converted to the vector type are acceptable. These include single-level array types such as [1,2,3,...] and string types such as '[1,2,3]'.

The return values are described as follows:

• Returns dims(int64).

• Returns an error when the parameter is NULL.

Here is an example:

CREATE TABLE t11(c1 vector(3));
INSERT INTO t11 VALUES('[1,2,3]');
INSERT INTO t11 VALUES('[1,1,1]');
SELECT vector_dims(c1), vector_dims('[1,2,3]') FROM t11;

The return result is as follows:

+-----------------+------------------------+
| vector_dims(c1) | vector_dims('[1,2,3]') |
+-----------------+------------------------+
|               3 |                      3 |
|               3 |                      3 |
+-----------------+------------------------+
2 rows in set
