OceanBase Cloud Platform (OCP) allows you to view the system monitoring data of an OBProxy cluster from the following entries:
Entry 1:
Log on to the OCP console and go to the OBProxy overview page. In the left-side navigation pane, click Performance Monitoring.
Entry 2:
Log on to the OCP console. In the left-side navigation pane, choose Performance Monitoring to go to the OBProxy Cluster tab.
Prerequisites
You have the read-only permission on the target OBProxy cluster.
Procedure
The following procedure takes Entry 2 as an example.
Log on to the OCP console.
In the left-side navigation pane, choose Performance Monitoring.
Click the OBProxy Cluster tab.

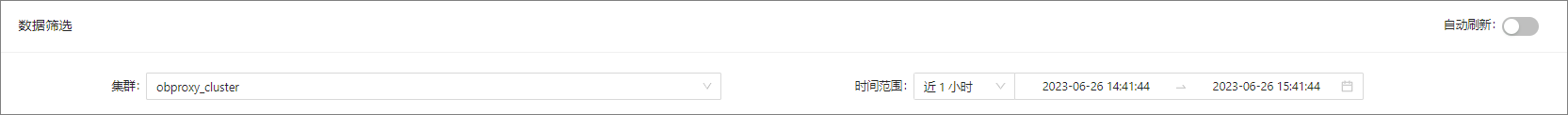

In the Data Filtering section, configure the conditions for filtering monitoring data.
The following table describes the filter conditions.
Filter condition Description Cluster This parameter is not displayed in auto-refresh mode. Select an OBProxy cluster to view its monitoring data. Time Range This parameter is not displayed in auto-refresh mode. Select a time range for the data that you want to query. Auto Refresh By default, auto-refresh is disabled. After auto-refresh is enabled, data is refreshed every 5s.
Go to the System Monitoring tab and view related monitoring data.
In the Overview section, view the trend charts of the current OBProxy cluster in the Linux system load and CPU Utilization sections.
The following features allow you to view and analyze the performance monitoring data on a trend chart in a more efficient manner. You can learn about the features with the help of the figure below.
View the trend details of a metric over a specific period of time: To use this feature, drag the pointer over a period of time to select this period. The system will then zoom in to display the trend details. To resume to the normal view, double-click the trend chart, as indicated by ① in the preceding figure.
Hide the data of a submetric: To use this feature, click the icon of this submetric. The submetric will then turn gray and its data will be hidden from the chart, as indicated by ② in the preceding figure.
View the detailed data of a specific point in time: To use this feature, hover the pointer over a point in time on the trend chart, as indicated by ③ in the preceding figure.
Click View All in the upper-right corner, as indicated by ④ in the preceding figure, to view the system monitoring data of all services in the OBProxy cluster. The features indicated by ①, ②, and ③ in the preceding figure are also applicable to other monitoring trend charts.
In the OceanBase IP Address section, view the performance data of each OBProxy node in the current OBProxy cluster. You can click Column Management to select the metrics to view.
