View Operation Audit

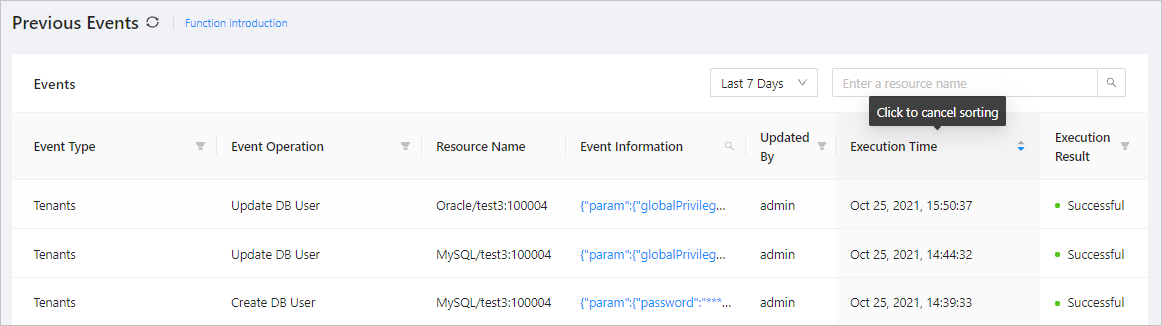

On the Operation Audit page, you can view recent operations on hosts, OceanBase clusters, OBProxy clusters, tenants, and OCP users and backup and restoration operations. The table on this page contains the following columns: Event Type , Event Operation , Resource Name , Event Information , Operator , Execution Time , and Execution Result .

Background

The operation audit feature records key operations on in the OceanBase Cloud Platform (OCP) console, including management operations on hosts, OceanBase clusters, OBProxy clusters, tenants, and OCP users, and backup and restoration operations. The event information is displayed to facilitate troubleshooting for users.

Prerequisites

You have the permission to view operation audit.

Procedure

1. In the left-side navigation pane, choose System Management > Operation Audit . The Operation Audit page appears.

2. Search for operation audit.

   1. You can view operation audit within a specific period by selecting a period from the drop-down list or specifying a custom period.



   2. You can also enter the name of the event in the search box, click the search icon or press the Enter key, and then check the search results.

3. Filter operation audit.

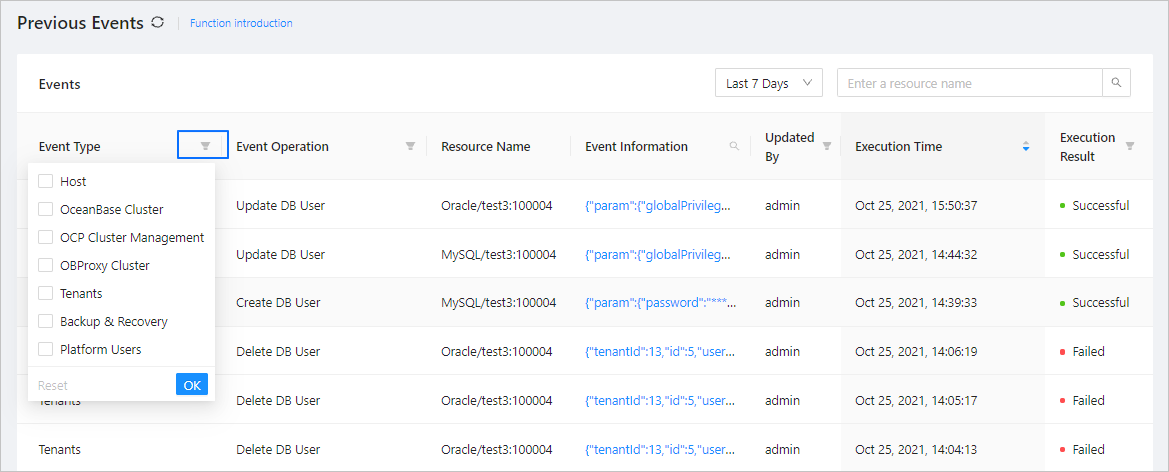

   1. Filter by Event Type : Click the filter icon next to Event Type, select one or more types, and then click OK . The event types include: Host, OceanBase Cluster, OBProxy Cluster, Tenant, Backup and Restoration, and OCP User.



   2. Filter by Event Operation : Click the filter icon next to Event Operation, select one or more operations, and then click OK .

      Event type	Event operation
      Host	Add Host Modify Host
      OceanBase Cluster	Create Cluster Take over Cluster Restart Cluster Stop Cluster Upgrade OceanBase Cluster Version Update OceanBase Cluster Parameter Add OBServer Delete OBServer Add Zone Delete Zone Modify OceanBase Compaction Parameter
      OBProxy Cluster	Create OBProxy Cluster Delete OBProxy Cluster Upgrade OBProxy
      Tenant	Create Tenant Modify Tenant Parameter Create Database Create Database User Modify Database User Delete Database User
      Backup and Restoration	New Sampling Policy Create Backup Policy Initiate Data Backup Initiate Log Backup Initiate Tenant Restoration
      OCP User	Create OCP User Delete OCP User Update OCP User Create OCP User Role Delete OCP User Role Update OCP User Role

4. View event details in Event Information . You can click the event information or enter a search criterion in the search box in the Event Information column, and view details in the dialog box that appears on the right.

   The event information contains the API calling information of the event. The password and other private parameters are masked.

5. Filter by Operator : Click the filter icon next to Operator, select one or more operators, and then click OK .

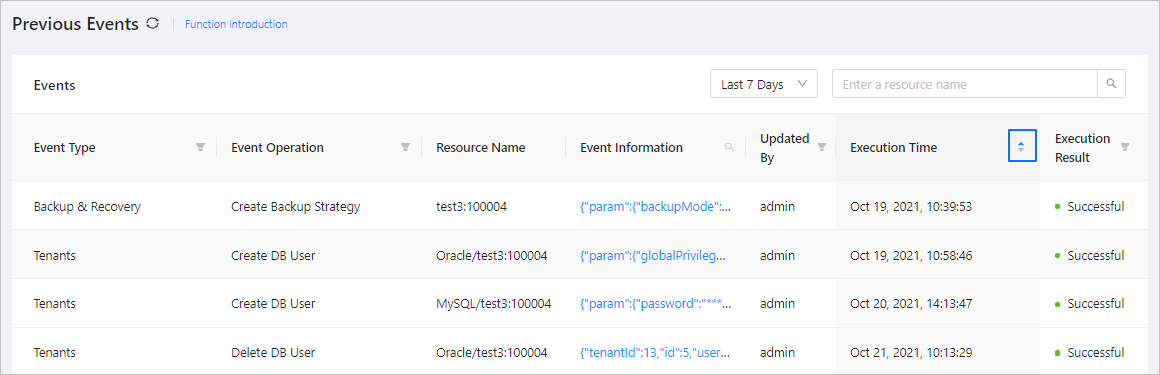

6. Order events by time.

   1. To order events by time in ascending order, click the up-pointing triangle next to Execution Time .



   2. To order events by time in descending order, click the down-pointing triangle next to Execution Time .
