The Restoration Overview page contains the following tabs: Recovery Tasks, Sampling Tasks, and Sampling Policies. This page also provides the New Sampling Policy and Initiate Restoration options.
Recovery tasks
The table on the Restoration Tasks tab contains the following columns: ID, Back up Cluster, Back up Tenant, Backup Method, Destination Cluster, Destination Tenant, Start Time, End Time, Status, and Actions. You can filter the tasks by status. For more information, see Initiate a recovery task, and Create a sampling strategy for recovery.
You can click Clean Up in the Actions column to release the resources occupied by failed recovery tasks.
You can click View Cause in the Actions column to check the causes of the failure.
In the upper-right corner of the tab, you can select **Last 24 Hours, Last 7 Days, or Last 30 Days, **or select Custom Time and specify a time range, to view the tasks in the specified time range.
| Parameter | Description | |
|---|---|---|
| ID | The unique identifier of the recovery task. | |
| Backup Cluster | The cluster that is backed up. You can recover the data of the cluster to another cluster. | |
| Backup Tenant | The tenant that has been backed up in the backup cluster. You can recover the data of the tenant to another tenant in the same or another cluster. | |
| Backup Method | The backup mode of the cluster and tenant. Valid values: Logical Backup and Physical Backup. | |
| Target Cluster | The cluster to which the data of the backup cluster is recovered. | |
| Target Tenant | The tenant to which the data of the backup tenant is recovered. | |
| Restoration Time | The point in time to which the target cluster is recovered. | |
| Status | You can filter tasks by status. |
|
| Actions | Valid values: Clean Up and View Cause. You can clean up failed tasks or view their failure causes. |

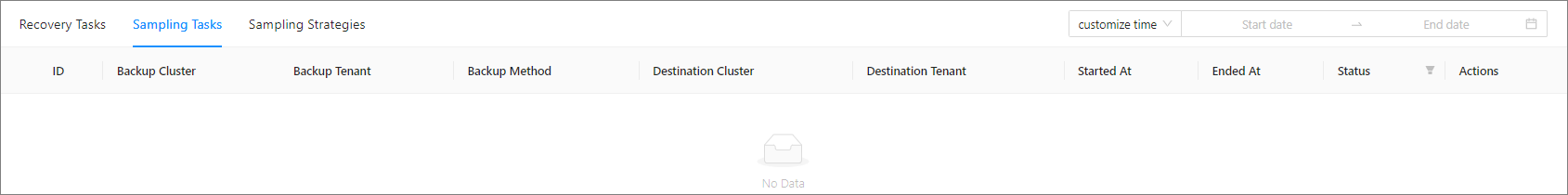

Sampling tasks
The table on the Sampling Tasks tab contains the following columns: ID, Back up Cluster, Back up Tenant, Backup Method, Destination Cluster, Destination Tenant, Recovered At, Storage Directory, Start Time, End Time, and Status. You can filter the tasks by status. You can click Clean Up in the Actions column to release the resources occupied by failed recovery tasks.
You can click View Cause in the Actions column to check the causes of the failure.
In the upper-right corner of the tab, you can select Last 24 Hours, Last 7 Days, or Last 30 Days, or select Custom Time and specify a time range, to view the tasks in the specified time range.
| Parameter | Description |
|---|---|
| ID | The unique identifier of the recovery task. |
| Backup Cluster | The cluster that is backed up. You can recover the data of the cluster to another cluster. |
| Backup Tenant | The tenant that has been backed up in the backup cluster. You can recover the data of the tenant to another tenant in the same or another cluster. |
| Backup Method | The backup mode of the cluster and tenant. Valid values: Logical Backup and Physical Backup. |
| Target Cluster | The cluster to which the data of the backup cluster is recovered. |
| Target Tenant | The tenant to which the data of the backup tenant is recovered. |
| Restoration Time | The point in time to which the target cluster is recovered. |
| Status | You can filter tasks by status. |
| Actions | Valid values: Clean Up and View Cause. You can clean up failed tasks or view their failure causes. |
Sampling strategies
The table on the Sampling Policies tab contains the following columns: Policy Name, Sampled Cluster, Target Cluster, Target Tenant, Created At, Status, and Actions. You can filter the sampling strategies by status.
| Parameter | Description |
|---|---|
| Policy Name | Click the name of a strategy in the Policy Name column. The strategy overview page appears. This page provides the following strategy management options: Stop, Edit, and Delete. |
| Sampled Cluster | Click the name of a cluster in the Sampled Cluster column. The cluster overview page appears. |
| Backup Method | Valid values: Physical Backup and Logical Backup |
| Target Cluster | The cluster to which the data of the backup cluster is recovered. |
| Target Tenant | The tenant to which the data of the backup tenant is recovered. |
| Created At | The time when the strategy was created. |
| Status | Valid values: Start, Recovering Data, Recovering Logs, Failed to Recover Data, Failed to Recover Logs, and Completed. |
| Actions | You can click Stop, Edit, or Delete in the Actions column to manage sampling strategies. |
