Create an information collection task

This topic describes how to manually initiate a collection task to promptly collect exception information about the specified object.

Prerequisites

You have been granted the ADMIN role.

Procedure

1. Log on to the OCP console. In the left-side navigation pane, choose O&M Management > Information Collection.

2. The Information Collection List page automatically appears.

3. Click Create Information Collection Task in the upper-right corner.

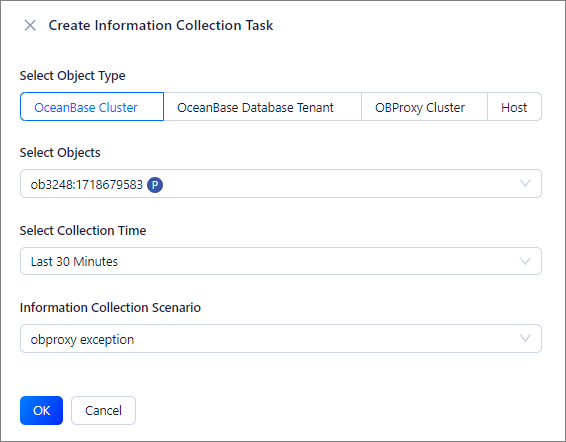

4. In the panel that appears, complete the information collection settings and then click OK.



   The following table describes the parameters.

   Parameter	Description
   Object Type	The type of the object for which the exception information is to be collected. Valid values: OceanBase Cluster, OceanBase Database Tenant, OBProxy Cluster, and Host.
   Object	The name of the object whose information is to be collected.
   Information Collection Range	The time range within which the information is to be collected. Valid values: Last 10 Minutes, Last 15 Minutes, Last 30 Minutes, Last 1 Hour, and Last 3 Hours.
   Information Collection Scenario	The information collection scenario, which varies based on the object type. Collection scenarios supported for different types of objects are listed as follows: OceanBase cluster obproxy exception ocp_agent exception data disk exception merge exception obcluster exception memory exception cpu exception OceanBase Database tenant data disk exception merge exception memory exception cpu exception OBProxy cluster obproxy exception cpu exception Host ocp_agent exception cpu exception Notice Proceed with caution if you want to select a obcluster exception scenario. The obcluster exception scenario involves a large number of collection items, which take a long time to collect.
