You can add zones to a cluster that you manage.
Prerequisites
You have the permission to update the target OceanBase cluster in the OceanBase Cloud Platform (OCP) console.
The target OceanBase cluster is managed in the current OCP cluster.
Otherwise, you need to take over the OceanBase cluster to the current OCP cluster. For more information, see Take over a cluster.
You cannot add a zone to a standalone centralized database.
Procedure
Log on to the OCP console.
In the left-side navigation pane, click Clusters. The Clusters page automatically appears.
On the Clusters page, find the target OceanBase cluster and click its name.
Go to the Overview page of the cluster and click Create Zone in the upper-right corner.

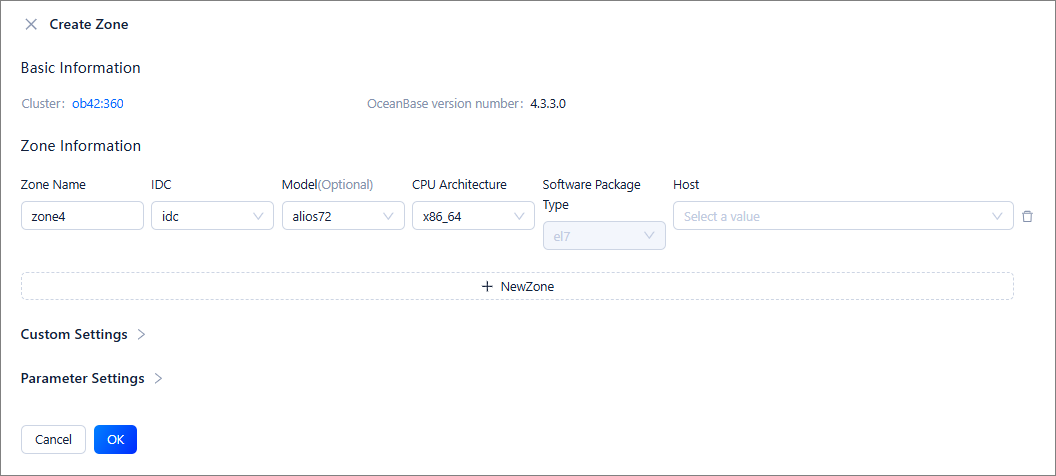

In the dialog box that appears, specify the zone information.
By default, only one zone is added. You can click +NewZone to add more zones.
The following table describes the parameters required for setting the zone information.
Parameter Description Zone Name The name of the zone. IDC The IDC where the zone is located. Model Optional. If you select a model, the host list is filtered based on the model. CPU Architecture The CPU architecture of the zone. Valid values: aarch64andx86.Note
You can select a CPU architecture only if the OceanBase Database RPM package for this architecture is available.
Software Package Type The type of the software installation package of the OceanBase cluster. If the system cannot identify the software installation package type of the OceanBase cluster, you need to select an appropriate installation package based on the version of your operating system. Host The IP address of the host. You can select multiple IP addresses. In a production environment, we recommend that the size of the log disk be at least three times the memory size of the host. To avoid performance issues, we recommend that you do not create the data directory and the log directory on the same disk. Custom Settings The OS user, path, and port number of the OBServer node. For more information, see the section about custom settings in Create a distributed cluster. Parameter Settings The startup parameters of all OBServer nodes in the zone. For more information about parameters, see Overview.
If you do not specify the OBServer node startup parameters, the startup parameters specified when you created the cluster are used.
Click OK.
In the dialog box that appears, you can click View Task to view the progress. You can also view the task progress in Task Center.
When the task enters the Completed state, and the status of the zone is displayed as Running in the Zones list on the Overview page of the cluster, the zone is created.
