Manage plans

This topic describes how to manage plans.

Prerequisites

You have been granted the ADMIN role.

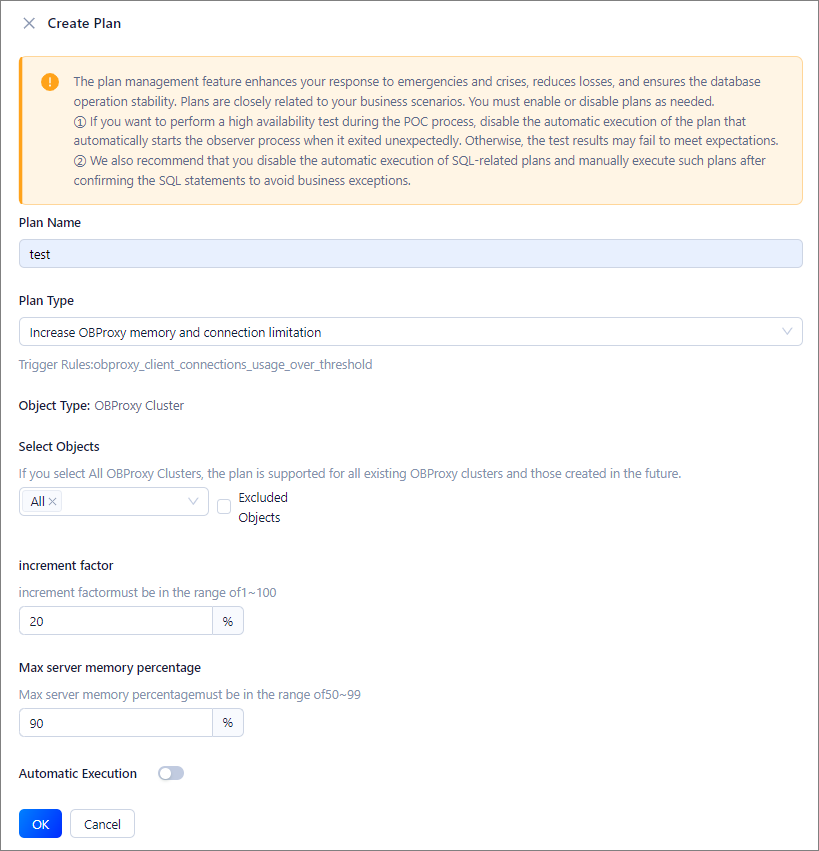

Create a plan

When the existing plans cannot meet your business needs, you can create a custom plan as needed. For example, you can define the effective scope, increment factor, and whether to enable automatic execution for a plan. To create a custom plan, perform the following steps:

1. Log on to the OCP console.

2. In the left-side navigation pane, choose O&M Management > Plan Management.

3. Click the Plan tab.

4. Click Create Plan in the upper-right corner.

5. In the panel that appears, configure the plan parameters and then click OK.

   The following table describes the plan parameters.

   Parameter	Description
   Plan Name	The name of the custom plan.
   Plan Type	The type of the plan. For more information about plan types, see the Plan types section in Overview.
   Object	The objects to which the plan applies. The object type varies based on the plan type. If you select All for this parameter, the plan applies to all existing and future objects of the same type. You can select Excluded Objects on the right to exclude objects that do not need to use this plan.
   increment factor	The ratio for increasing resources. This parameter is displayed only when Plan Type is set to Increase tenant memory resource, Increase tenant CPU resource, or Increase OBProxy memory and connection limitation. The value range is 1% to 100%. The default value is 20%.
   Max server memory percentage	The maximum memory usage of the server of the OBProxy cluster. This parameter is displayed only when Plan Type is set to Increase OBProxy memory and connection limitation. The value range is 50% to 99%. The default value is 90%.
   Automatic Execution	Specifies whether to automatically execute the plan. By default, automatic execution is disabled.

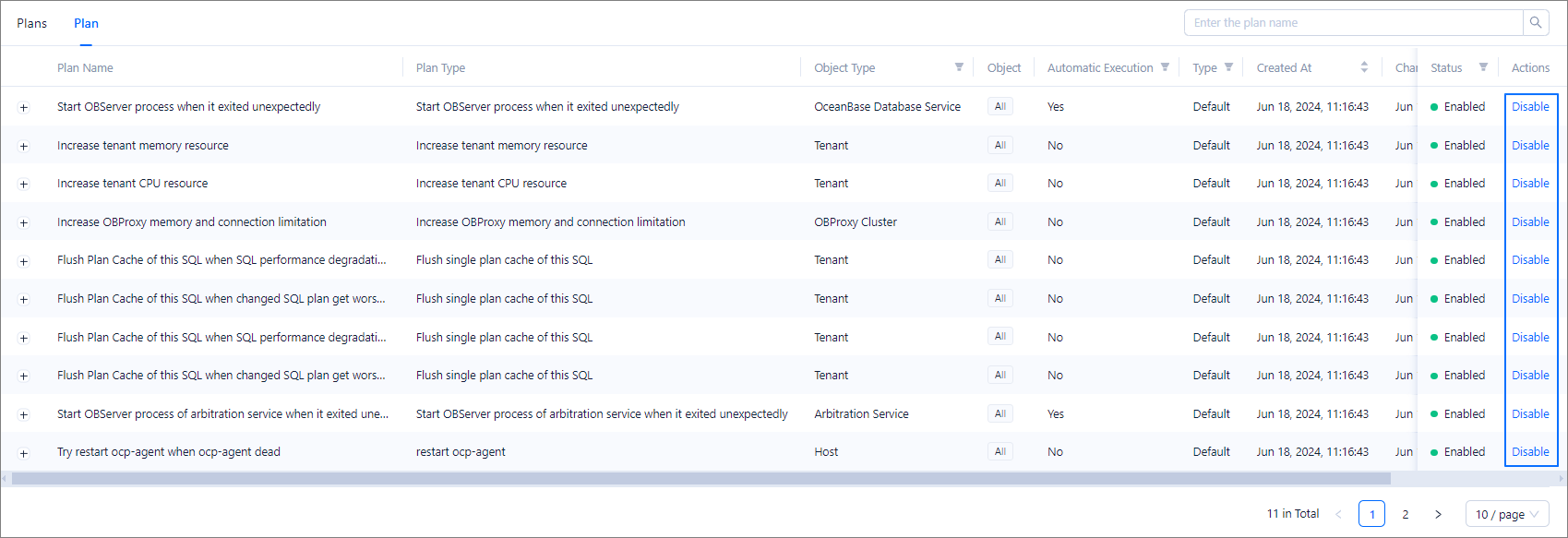

Enable or disable a plan

The plan management feature enhances your response to emergencies and crises, reduces losses, and ensures the database operation stability. Plans are closely related to your business scenarios. You must enable or disable plans as needed.

• If you want to test the high-availability performance of your database during proof of concept (PoC), disable automatic execution of the plans whose type is set to Start observer process when it exited unexpectedly. Otherwise, the test results may not be as expected.
• We also recommend that you disable the automatic execution of SQL-related plans and manually execute such plans after confirming the SQL statements to avoid business exceptions.

1. Log on to the OCP console.

2. In the left-side navigation pane, choose O&M Management > Plan Management.

3. Click the Plan tab.

4. Find the target plan and click Enable or Disable in the Actions column.

Edit a plan

You can edit only a custom plan. To edit a custom plan, perform the following steps:

1. Log on to the OCP console.

2. In the left-side navigation pane, choose O&M Management > Plan Management.

3. Click the Plan tab.

4. Find the target plan and click Edit in the Actions column.

5. In the panel that appears, modify the information about the plan.

   For more information about the parameters, see the Create a plan section in this topic.

Delete a plan

You can delete only a custom plan when it no longer applies to your business scenarios. To delete a custom plan, perform the following steps:

1. Log on to the OCP console.

2. In the left-side navigation pane, choose O&M Management > Plan Management.

3. Click the Plan tab.

4. Find the target plan and click Delete in the Actions column.

5. In the dialog box that appears, click OK.
